LOFTNESS 51CCH - Rotor (W; Carbide Planer Teeth) (Optional) 51 (N20576), 61 (N20575), 71 (N21906)

51Carbide Cutter OM

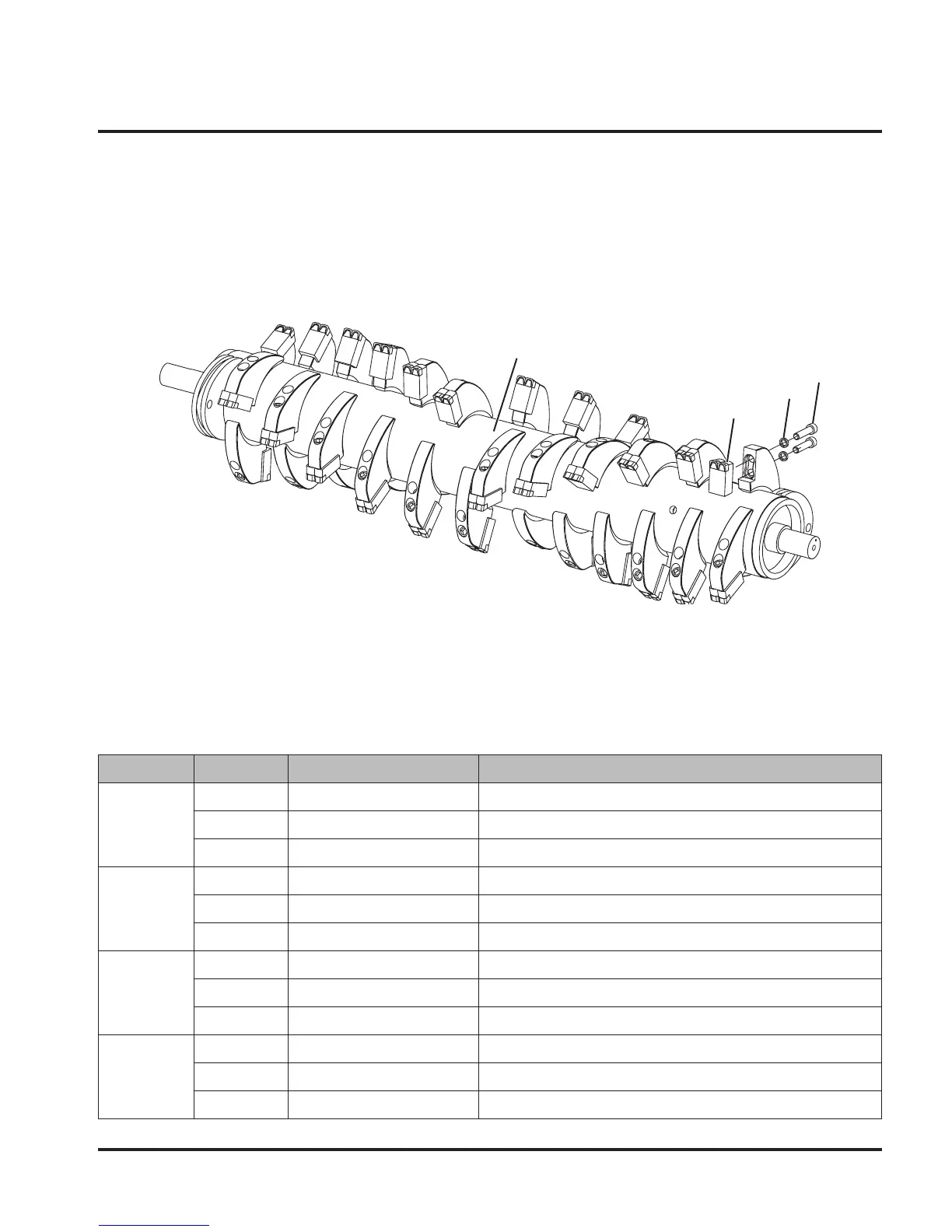

Parts Identification
Rotor (W / Carbide Planer Teeth) (Optional) 51" (N20576), 61" (N20575), 71"
(N21906)
# QTY. PART # DESCRIPTION
1
1 N20084 ROTOR, 51" CARBIDE SPIRAL W / O CUTTERS
1 N20078 ROTOR, 61" CARBIDE SPIRAL W / O CUTTERS
1 N20081 ROTOR, 71" CARBIDE SPIRAL W / O CUTTERS
2
30 N17044 TOOTH, CARBIDE DOUBLE PLANER (51")
36 N17044 TOOTH, CARBIDE DOUBLE PLANER (61")
42 N17044 TOOTH, CARBIDE DOUBLE PLANER (71")
3
60 N17041 WASHER, LOCK 5/8" (51")
72 N17041 WASHER, LOCK 5/8" (61")
84 N17041 WASHER, LOCK 5/8" (71")
4
60 N15646 SCREW, 5/8" - 18UNF x 2 - 1/2" GR 8 (51")
72 N15646 SCREW, 5/8" - 18UNF x 2 - 1/2" GR 8 (61")
84 N15646 SCREW, 5/8" - 18UNF x 2 - 1/2" GR 8 (71")
1
2
3
4*
* Use copper based anti-seize.
Torque to 137 ft.-lbs.
Tighten top bolt (Item 4) first.
