Logosol B751 - Page 18

18
M8x20
M8x20
M8
M8
15 x
12 x
15 x
12 x
11
12
8400-005-0010
8400-005-0010

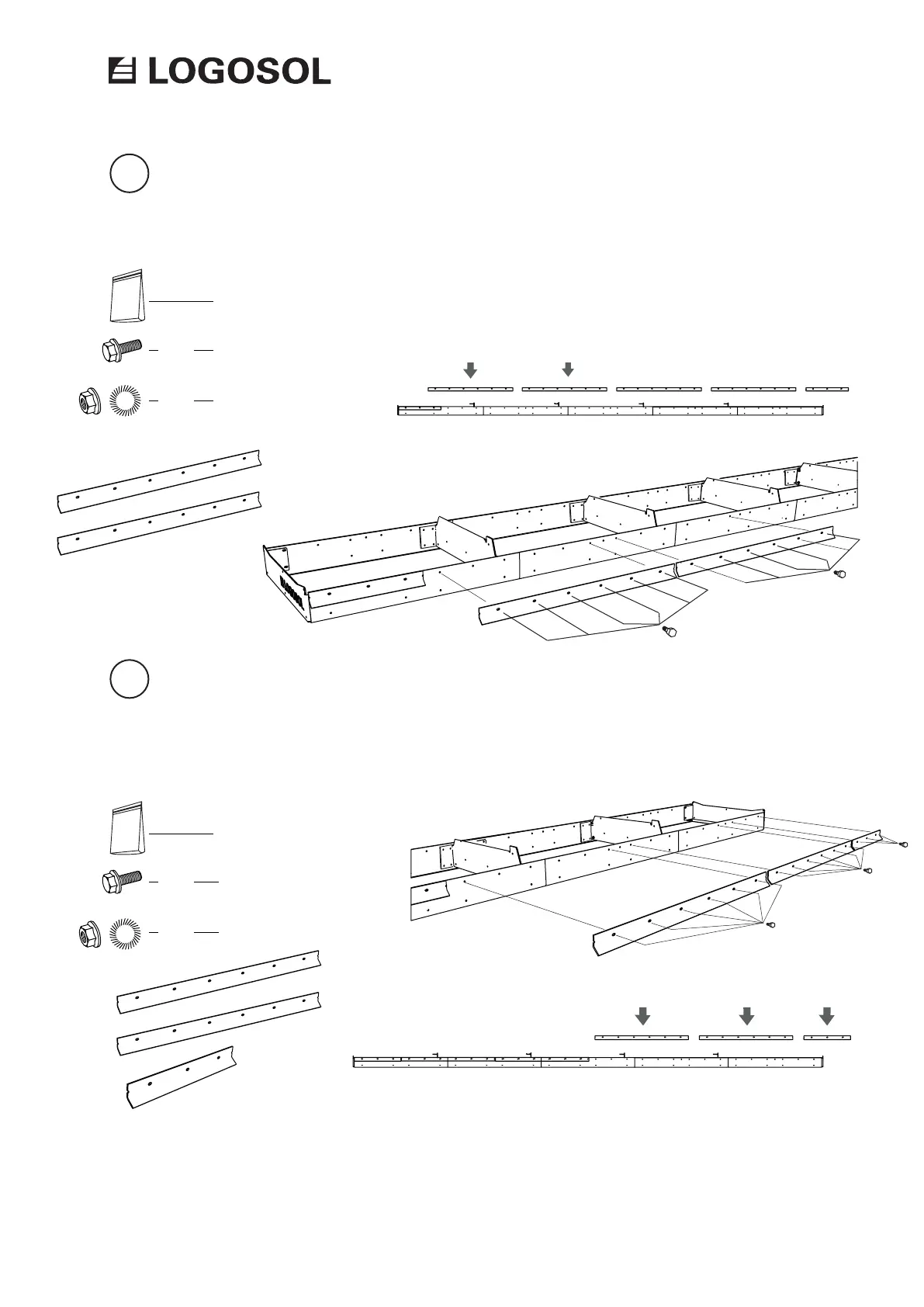

Fit the next two pieces of rail. Tighten the screw joints loosely.
Fit the last three pieces of rail. Note that the short piece must
be located at the end of the rail. Tighten the screw joint loosely.
