17
B751
9
10
M8x20
M8x20
M8
M8
3 x
4 x
3 x
4 x
8400-005-0010
8400-005-0010

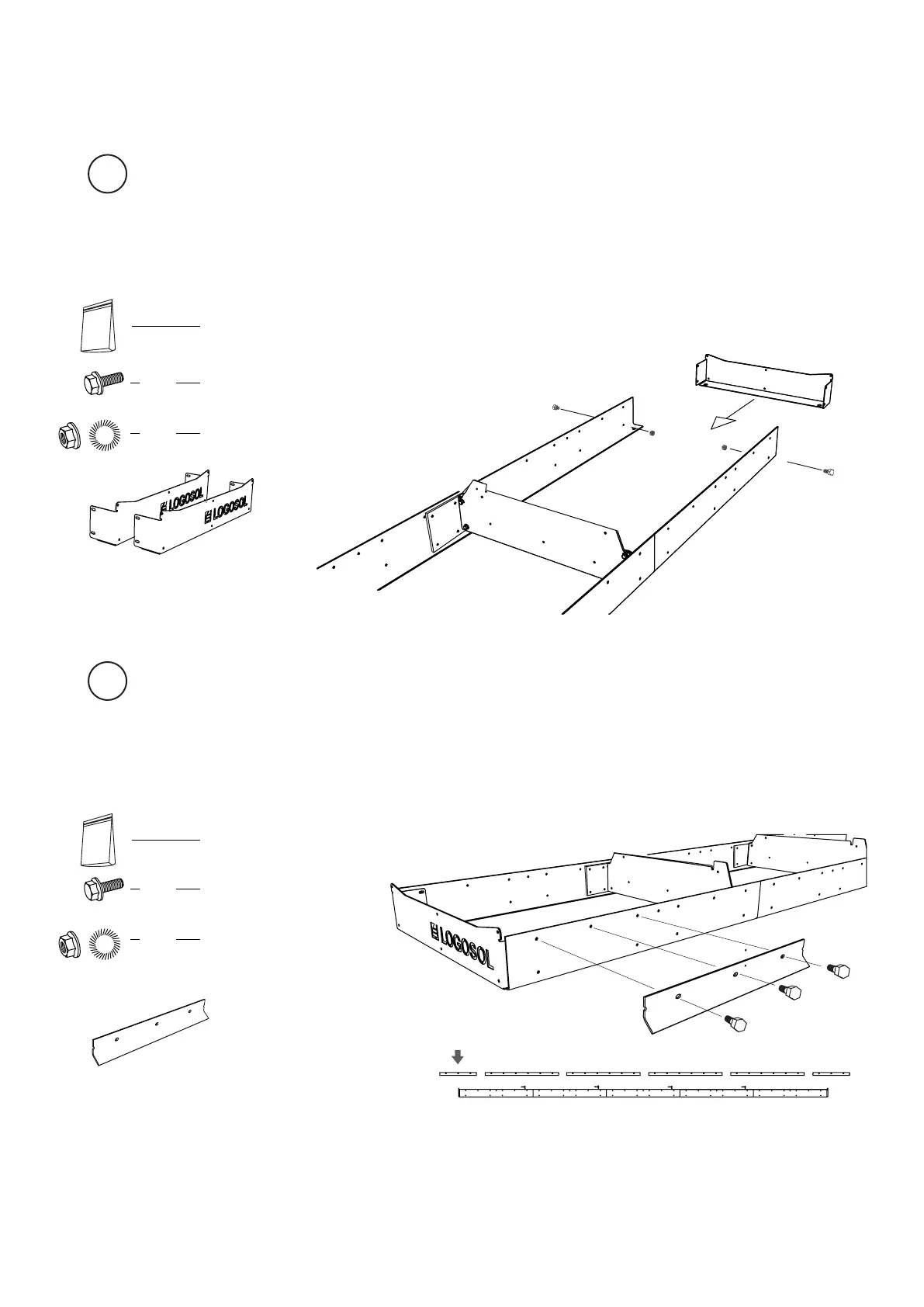

Fit the end piece to the end of the rail. Mount only in the lower
holes. Then repeat the installation procedure at the other end
of the rail.
Assemble the pieces of rail. Start with a short piece of rail
(3 holes) to be placed at the end of the rail. Tighten the
piece loosely.
