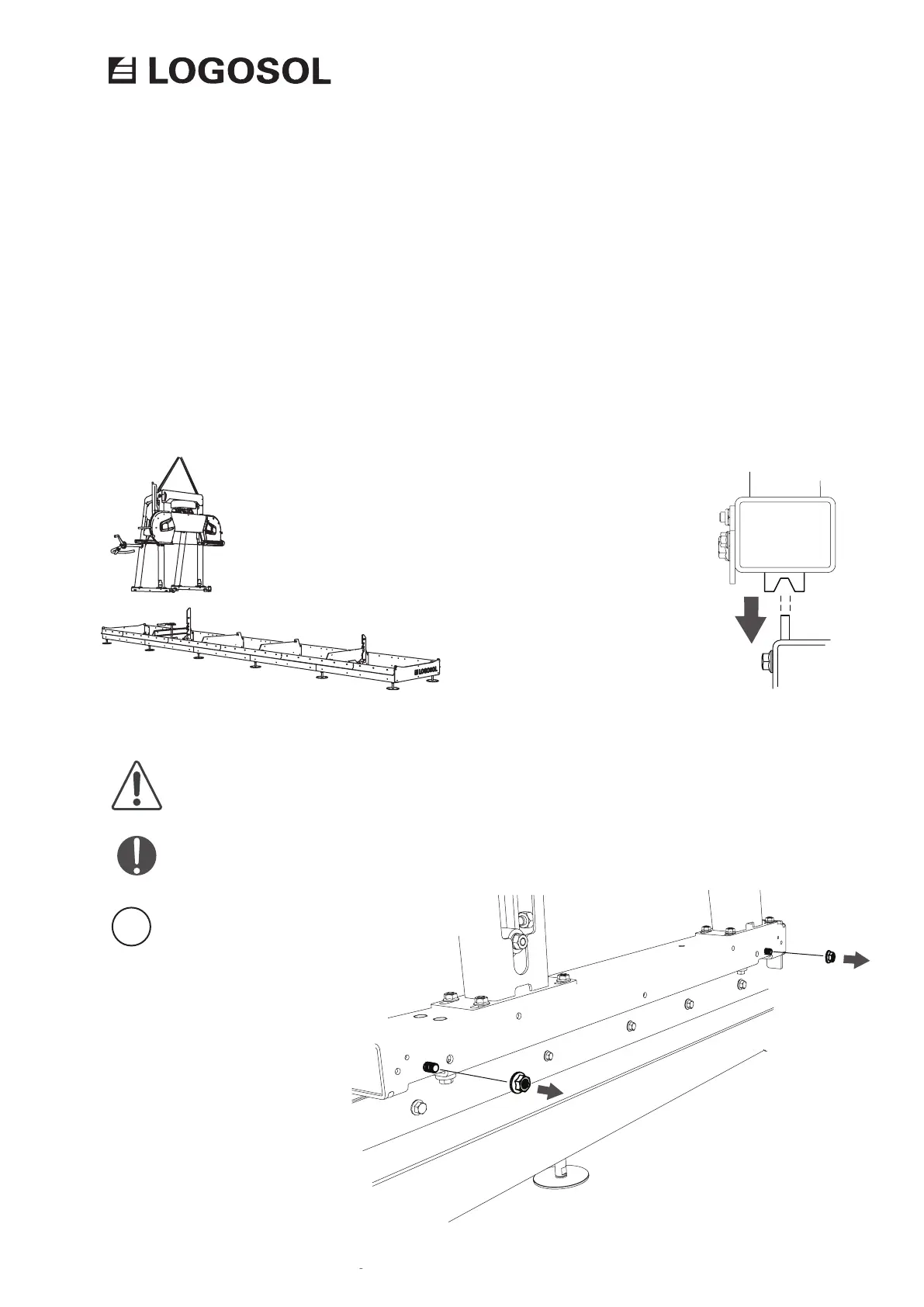

Lift the saw head into place on the rail. The
saw head weighs 178 kg in total. Use a sling
approved for the purpose and attach to the
saw head’s lifting eyes. Lift the saw head using
the appropriate lifting gear.
INSTALLING THE SAW HEAD ON THE RAIL
THE SAW HEAD
The anti-tip wheels must be mounted on the underside
of the saw carriage when the saw head is mounted
on the rail.
Danger, overturning hazard!
Critical assembly.
Start by removing the flange
nuts on the inside of the bogie
tube. Leave the screws where
they are. They will be needed
for installation later.
Take care to ensure that the saw
carriage surrounds the rail.
Important!
