Logosol B751 - Anti-Tip Plate and Rail Scraper

27
B751
2
3
M6x35
2
x
M6
2 x
2 x
M6
2 x
5
0
8400-005-0030
4 x
03-01982
THE SAW HEAD

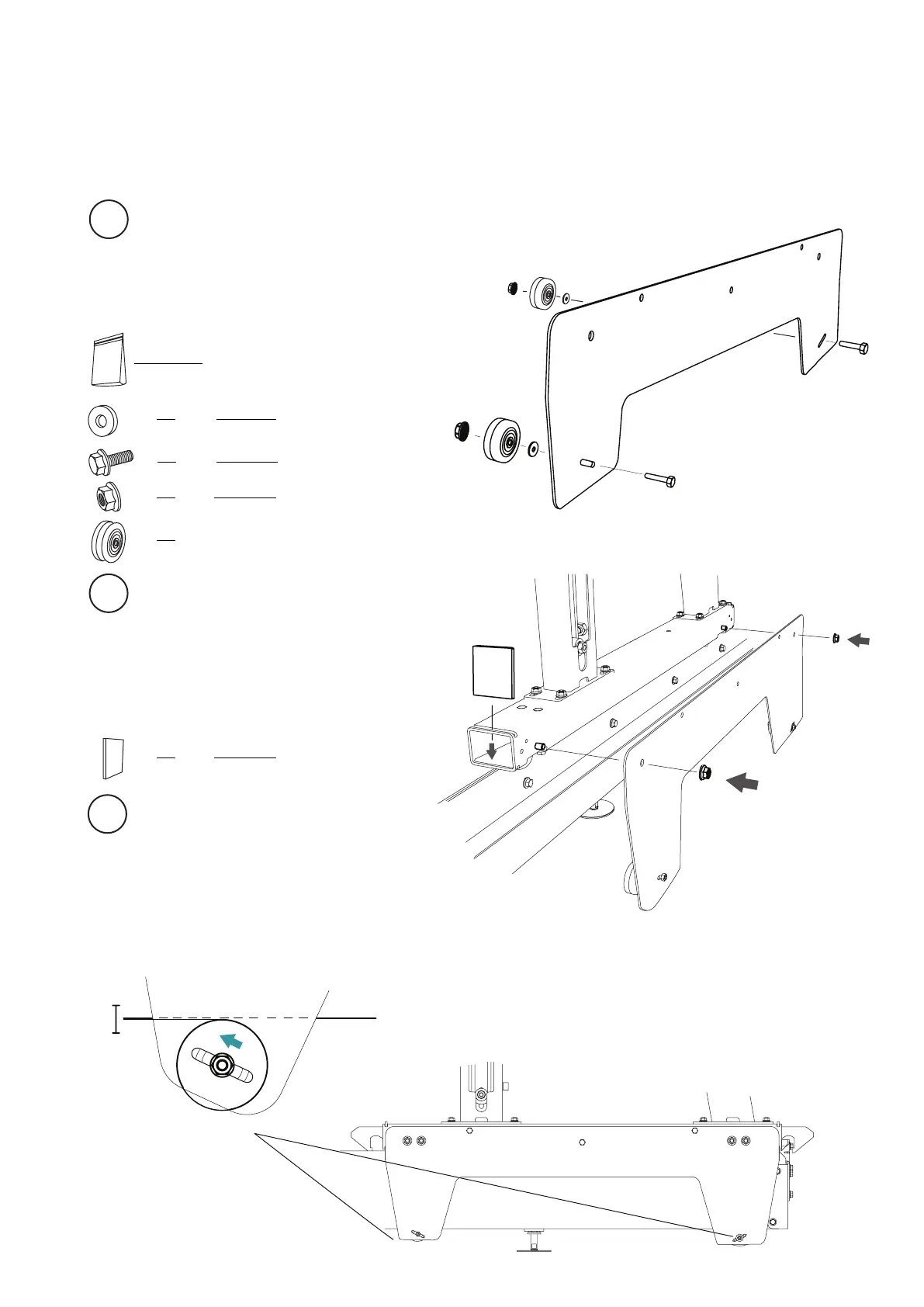

Fit the wheels and spacers to the anti-
tip plate. Then repeat the installation
procedure for the second anti-tip plate.
Fit the anti-tip plate on the bogie tube.
Use existing nuts from step 1. Then repeat
the installation procedure for the other side
of the machine.
Fit the rail scraper.
Tighten the anti-tip wheels by pushing them
upwards in the inclined groove. Move them
upwards so that they brace against the under-
side of the pipe. Then repeat the adjustment
procedure on the other side of the machine.
