- 30 -
FOCS Workshop Manual_cod. 1.5302.351_ed_ rev. 06
5
6
8
7
4
1
1
2
2
2
2
1
4
2
7
6
5
13
10
3
9
8
11
12

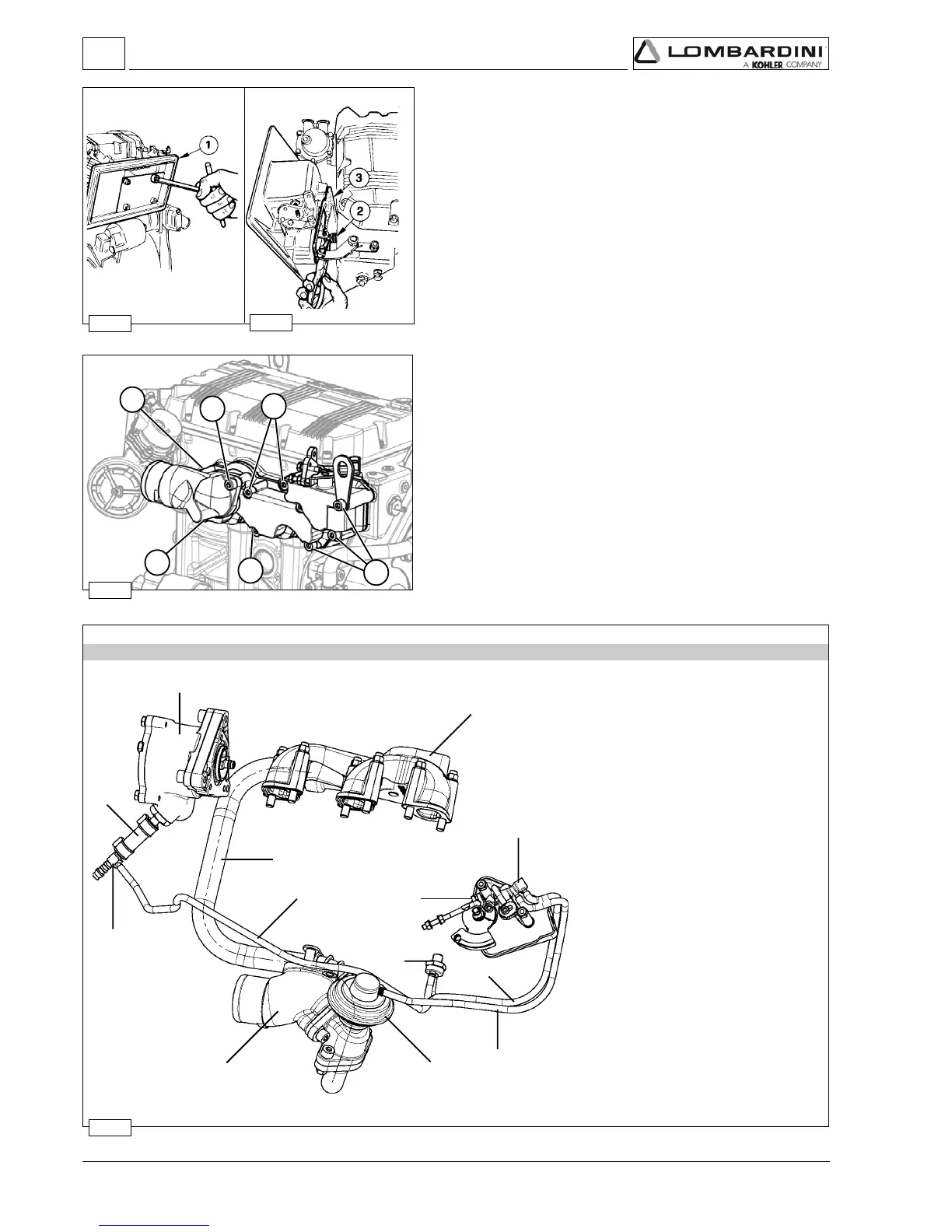

Air filter support
The support for air filter 1 incorporates the intake manifold and the
accelerator control box.
Remove all bolts that secure the air filter support 1 to the cylinder
head. Carefully pull the air filter support from the cylinder head.
Using suitable pliers, release the governor spring 2 from the air filter
support assembly.
Replace the gasket 3.
Components:
1. Exhaust manifold
2. E.G.R. Pipe
3. E.G.R. Valve
4. Vacuum pump
5. Three way union
6. Vacuum pump pipe
7. Thermovalve vacuum pump
connection pipe
8. Vacuum valve thermovalve
connection pipe
9. Vacuum valve - E.G.R. connection
pipe
10. Thermovalve
11. Vacuum valve
12. ON-OFF sensor control cam
13. Intake duct
Intake manifold Remote air filter
- Unscrew the the fastening screws (1) that fix the intake duct to
the intake manifold unit.
-Unscrew the two fastening screws (2) of the intake manifold from
the engine crankcase.
-Lift the intake manifold and disengage the hook of the min/max
cylinder from the same manifold (fig. 212).
Disassembly / Reassembly
E.G.R. Circuit
