- 68 -
FOCS Workshop Manual_cod. 1.5302.351_7° ed_ rev. 06
151
6
Danger – Attention
-The engine can be damaged if allowed to operate with insufficient oil. It is also dangerous to add too much oil
because its combustion may lead to a sharp increase in the rotation speed.
-Use suitable oil in order to protect the engine.
Nothing more than lubrication oil can influence the performances and life of an engine.
-Use of an inferior quality oil or failure to regularly change the oil will increase the risk of piston seizure, will cause
the piston rings to jam and will lead to rapid wear on the cylinder liner, the bearings and all other moving parts.
Engine life will also be notably reduced.
-The oil viscosity must suit the ambient temperature in which the engine operates.
Danger – Attention
-Old engine oil can cause skin cancer if repeatedly left in contact with the skin and for long periods of time.
Wear protective gloves to avoid touching used oil.
-If contact with the oil is unavoidable, you are advised to wash your hands with soap and water as soon as possible.
Dispose of old oil in the correct way as it is highly polluting.

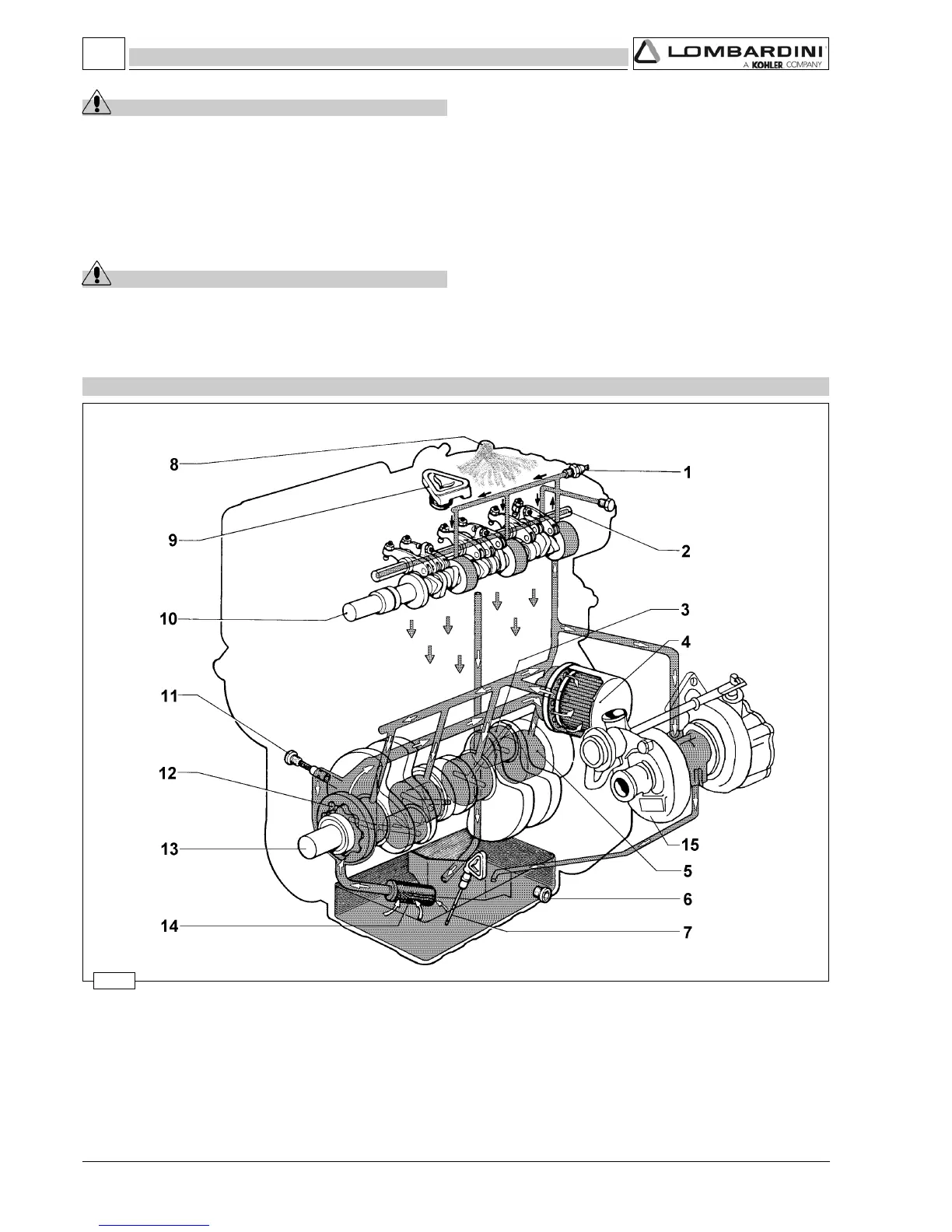

LUBRIFICATION CIRCUIT
Components:
1 Pressure gauge 9 Oil filler cap
2 Rocker shaft 10 Camshaft
3 Connecting rod pin 11 Oil pressure regulating valve
4 Oil filter cartridge 12 Oil pump
5 Journal 13 Crankshaft
6 Oil drain plug 14 Oil suction filter
7 Oil dipstick 15 Turbosupercharger with corresponding pipes only fitted in LDW 1204/T models.
8 Bleed
LUBRIFICATION CIRCUIT
