- 92 -
FOCS Workshop Manual_cod. 1.5302.351_ed_ rev. 06
0007
0042
001
064
02-
0
02+
04+
5.92÷5.32
5.61÷5.31
5.01÷5.8
0.8÷0.6
0.7÷0.4
02305+
210
212
211
9
209

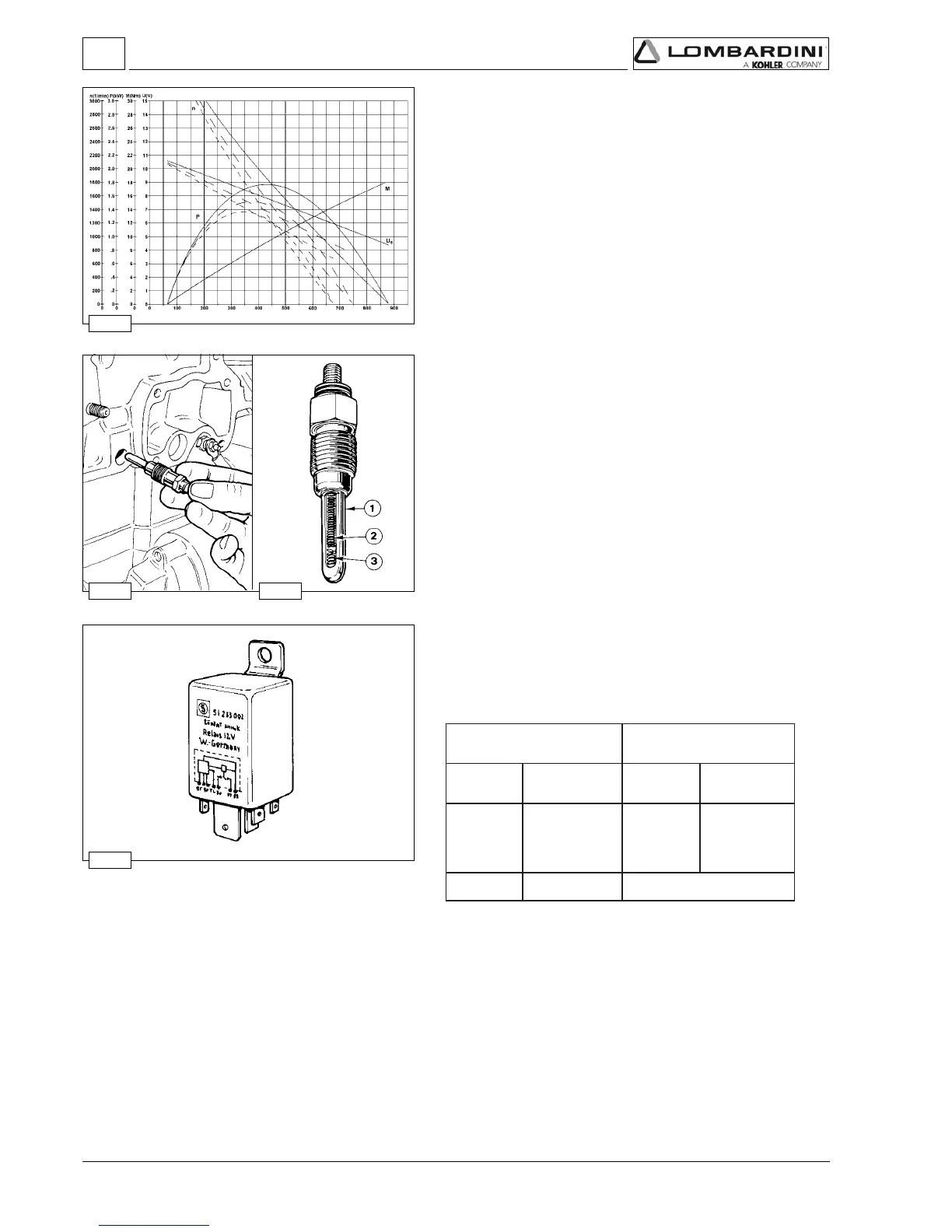

Pre-heating plug control unit with coolant temperature sensor
To avoid white smoke immediately following start-up post-heat for
about 5 seconds, see table
 For electrical connections see figures 196-199-203.
Pre-heating glow plug
Characteristics:
Nominal voltage ........................................ 12,5V
Current absorption .................................... 12A÷14A after 5 seconds
Sheath surface temperature ..................... 850°C after 5 seconds.
Components:
1 Sheath
2 Primary Heating Coil
3 Secondary Heating Coil
 When remounting tighten at a torque of 20 Nm.
Post-heat
Glow-plug heat time
(sec.)
Pre-heat
Coolant temp.
°C
Resistance
(ohm)
Thermistor input
Heating stop
Starter motor, Bosch DW 12V 1,6 KW - Performance Curve
The curve was obtained at room temperature of -20°C with a fully
charged 88 Ah battery.
U =Starter Motor Voltag
n =Armature r/min
I =Absorbed Amperage
P =Starter Output Power (KW)
M =Starter Output Torque (Nm)
Electric System
