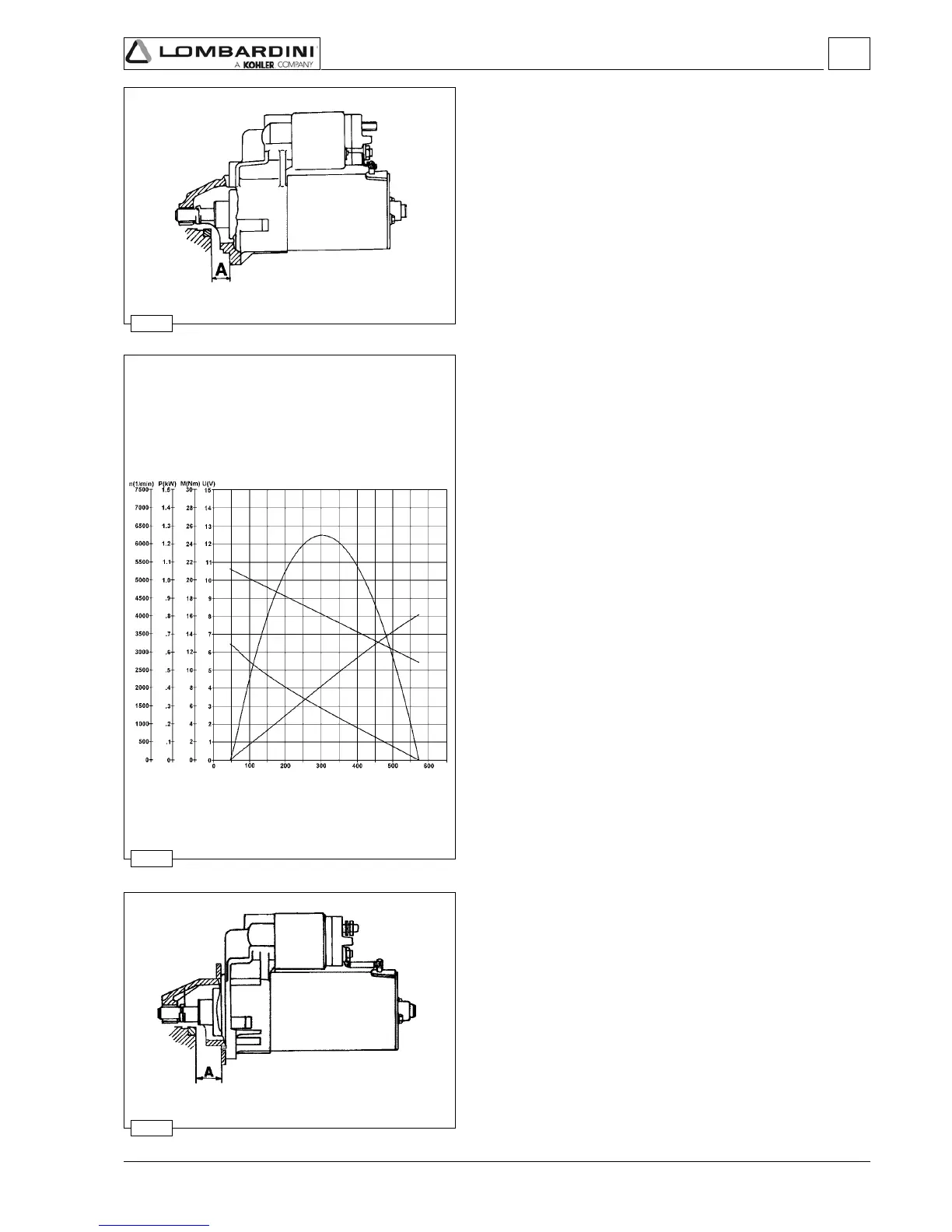

STARTER MOTOR - Bosch DW 12V 1,1 KW
Rotation: Clockwise
A = 17,5÷19,5 mm
(distance from starter mounting flange to ring gear face)
Note: Please refer to your local BOSCH distributor for service parts,
repair criterion and warranty service.
Starter motor, Bosch 12V 1,6 Kw
Rotation: Clockwise
A = 29,50÷31,5 mm
(distance from starter mounting flange to ring gear face)
Note: Please refer to your local BOSCH distributor for service parts,
repair criterion and warranty service.
Starter motor, Bosch DW 12V 1,1 KW - Performance Curve
The curve was obtained at room temperature of -20°C with a fully
charged 66Ah battery.
U =Starter Motor Voltag
n =Armature r/min
I =Absorbed Amperage
P =Starter Output Power (KW)
M =Starter Output Torque (Nm)
