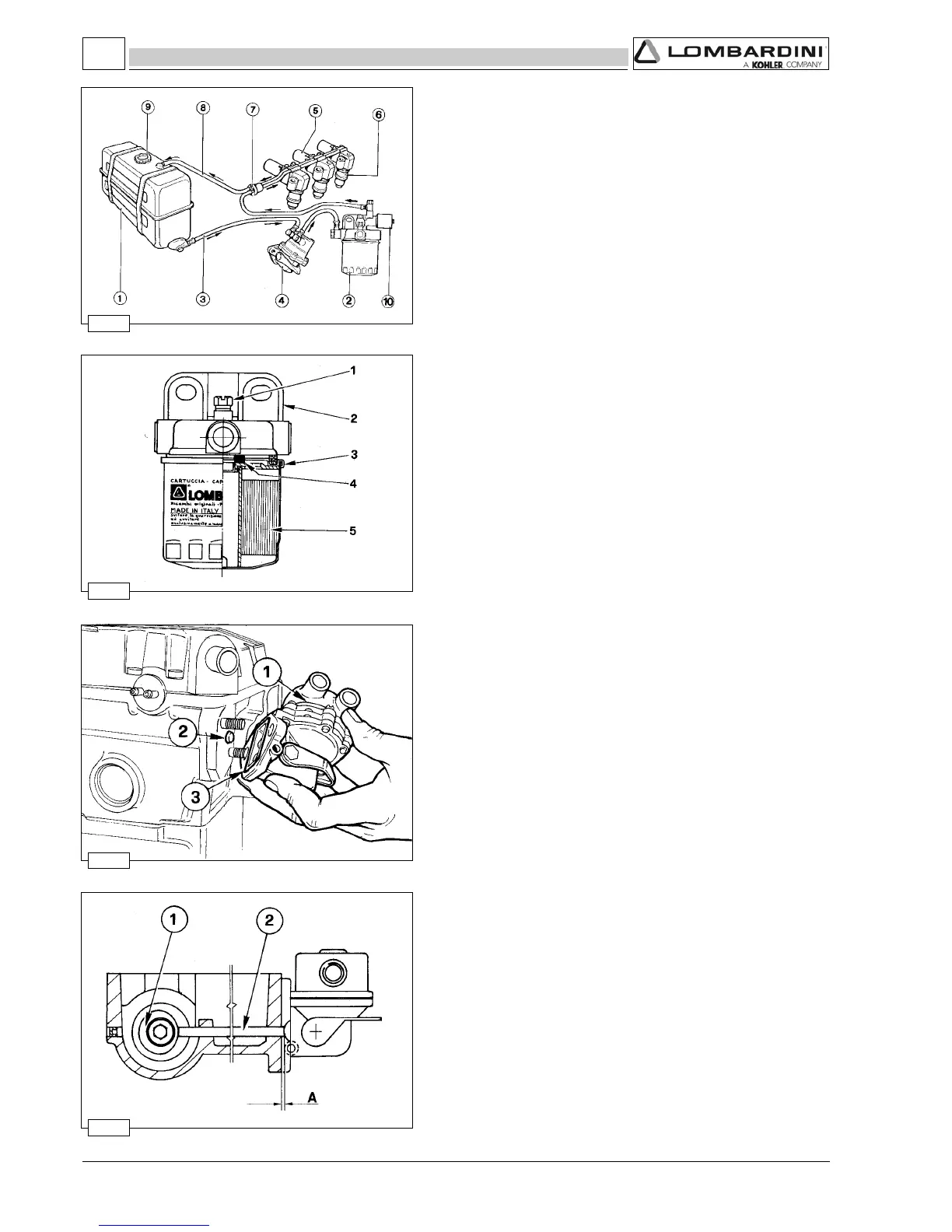

Fuel feeding / injection circuit
Components: 1 Fuel Tank
2 Fuel filter
3 Fuel feeding tube
4 Fuel lift pump
5 lnjection pump
6 Injector
7 Fuel rail passage rubber joint
8 Injector exhaust pipe
9 Fuel tank cap
10 Solenoid valve
Note: The tank complete with filter is supplied on request.
Fuel pump drive rod projection
The protrusion A of drive rod 2 from the cylinder head surface is
1.66÷2.18 mm.
The check must be carried out with cam 1 idle as in the figure.
Block the two fuel pump fastening nuts simultaneously at 24 Nm.
Check the length of the drive rod and if it is not the right size,
replace it.
Drive rod length = 153.15÷153.35 mm.
Fuel lift pump
Components:
1 Fuel lift pump
2 Push rod
3 Seal ring
The fuel pump is membrane type. It is driven by camshaft cam via
a drive rod.
It is equipped with an external manual fuel lever.
Characteristics:
With the control cam at 1500 rpm the delivery rate is 75 l/hours and
the self-adjusting pressure is at 0.55 to 0.65 bar.
Fuel filter detached from the tank (on request)
1 Air relief valve
2 Bearing
3 Cartridge
4 Rubber element
5 Filtering element
Cartridge characteristics:
Filtering paper: ................................ PF 905
Filtering surface: .............................. 2400 cm
2
Degree of filtration: .......................... 2÷3
µµ
µµ
µ
Maximum operating pressure: ........ 4 bar
 See page 24 for periodic maintenance details.
