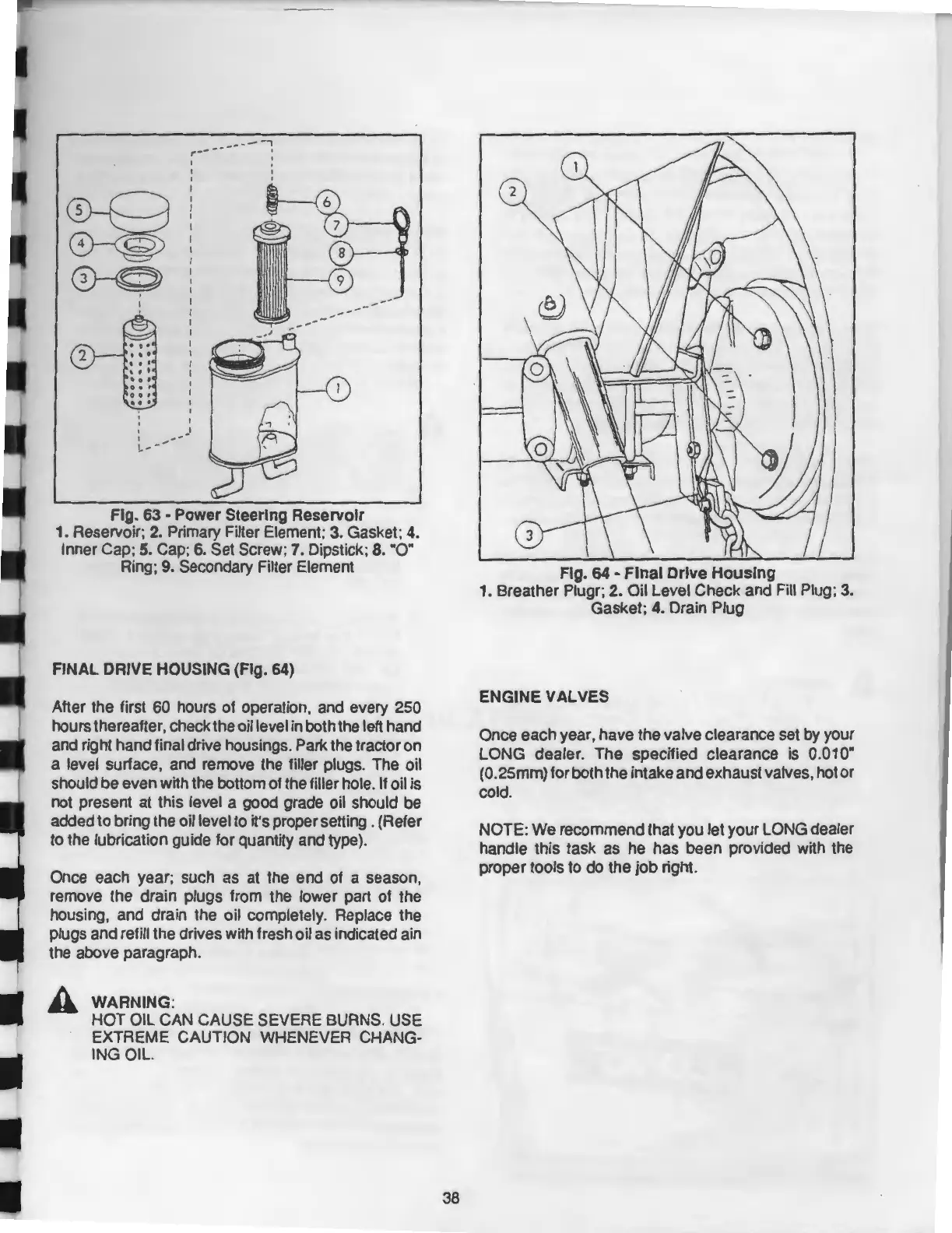

Fig. 63 - Power Steering
Reservoir
1. Reservoir;
2.
Primary Filter Element; 3. Gasket;
4.
Inner Cap; 5. Cap; 6. Set Screw; 7. Dipstick; 8. "0"
Ring; 9. Secondary Filter Element
FINAL DRIVE HOUSING (Fig.
64)
After the first 60 hours of operation, and every 250
hours thereafter, check the oil level in both the left hand
and right hand final drive housings. Park the tractor on
a level surface, and remove the filler plugs. The oil
should be even with the bottom of the filler hole. If oil is
not present at this level a good grade oil should be
added to bring the oil level to it's proper setting . (Refer
to the lubrication guide for quantity and type).
Once each year; such as at the end of a season,
remove the drain plugs from the lower part of the
housing, and drain the oil completely. Replace the
plugs and refill the drives with fresh oil as indicated ain
the above paragraph.
WARNING:
HOT OIL CAN CAUSE SEVERE BURNS. USE
EXTREME CAUTION WHENEVER CHANG-
ING OIL.
38
Fig.
64
-
Final
Drive
Housing
1. Breather Plugr; 2. Oil Level Check and Fill Plug; 3.
Gasket; 4. Drain Plug
ENGINE VALVES
Once each year, have the valve clearance set by your
LONG dealer. The specified clearance is 0.01 0"
(0
.25mm) for both the intake and exhaust valves, hot or
cold.
NOTE: We recommend that you let your LONG dealer
handle this task as he has been provided with the
proper tools to do the job right.
