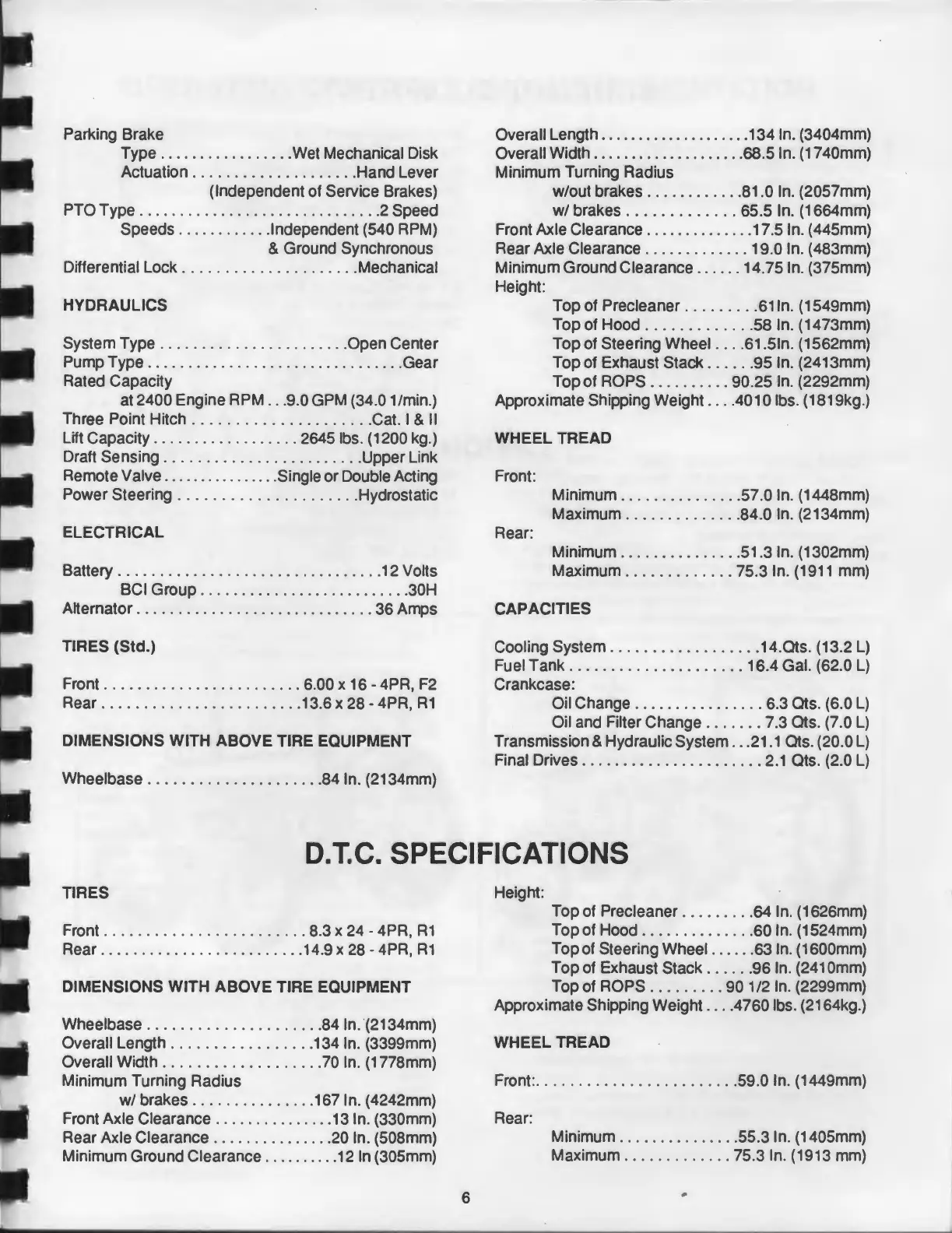

Long 2360 - Page 8

Parking Brake
Type ................. Wet Mechanical Disk
Actuation ................... . Hand Lever
(Independent of Service Brakes)
PTO Type
.............................. 2 Speed
Speeds ..... .. ..... Independent (540 RPM)
& Ground Synchronous
Differential Lock
...... .......... ..... Mechanical
HYDRAULICS
System Type ...... .... ............. Open Center
Pump Type ................................ Gear
Rated Capacity
at 2400 Engine RPM
.. . 9.0 GPM (34.0 1/min.)
Three Point Hitch . .. ..... ............. Cat. I & II
Lift Capacity ..... . . .... ....... 26451bs. (1200 kg.)
Draft Sensing
............ . ........... Upper Link
Remote Valve .......... ... ... Single or Double Acting
Power Steering ..................... Hydrostatic
ELECTRICAL
Battery ..................... ... .. ..... . 12 Volts
BCI Group .......................... 30H
Alternator ......... . ................. .. 36 Amps
TIRES
(Std.)
Front ................ . ....... 6.00 x 16- 4PR, F2
Rear ........................ 13.6 x 28- 4PR, R1
DIMENSIONS WITH ABOVE TIRE EQUIPMENT
Wheelbase ..................... 841n. (2134mm)
Overall Length
.................... 134 ln. (3404mm)
Overall Width .................... 68.5 ln. (1740mm)
Minimum Turning Radius
w/out brakes
.... ........ 81.0 ln. (2057mm)
w/ brakes ............. 65.5 ln. (1664mm)
Front Axle Clearance ... ....... .... 17 .5 ln. (445mm)
Rear Axle Clearance
...... .. ..... 19.0 ln. (483mm)
Minimum Ground Clearance ...... 14 .751n. (375mm)
Height:
Top of Precleaner ......... 611n . (1549mm)
Top of Hood .... ........ . 58 ln. (1473mm)
Top of Steering Wheel .... 61.51n. (1562mm)
Top of Exhaust Stack ...... 95 ln. (2413mm)
Top of ROPS .......... 90 . 25 ln. (2292mm)
Approximate Shipping Weight .... 401 0 lbs. ( 1819kg .)
WHEEL TREAD
Front:
Minimum ............ ... 57.0 ln. (1448mm)
Maximum .............. 84.0 ln. (2134mm)
Rear:
Minimum ............... 51.31n. (1302mm)
Maximum ............. 75.31n. (1911 mm)
CAPACITIES
Cooling System . . .... ............ 14.0ts. (13.2 L)
Fuel Tank ..................... 16.4 Gal. (62.0 L)
Crankcase:
Oil Change
................ 6.3 Ots. (6.0 L)
Oil and Filter Change
....... 7.3 Ots. (7.0 L)
Transmission & Hydraulic System ... 21.1 Ots. (20.0 L)
Final Drives ...................... 2.1 Qts. (2.0 L)
D.T.C. SPECIFICATIONS
TIRES
Height:
Top of Precleaner ......... 64 ln. (1626mm)
Front ........................ 8.3 x 24- 4PR, R1 Top of Hood .............. 60 ln. (1524mm)
Rear .
.. ...................... 14.9 x 28- 4PR, R1
Top of Steering Wheel ...... 63 ln. (1600mm)
Top of Exhaust Stack
...... 96 ln. (241 Omm)
DIMENSIONS WITH ABOVE TIRE EQUIPMENT
Top of ROPS
......... 90 1/2 ln. (2299mm)
Approximate Shipping Weight .... 4 760 lbs. (2164kg.)
Wheelbase ................... .. 841n. (2134mm)
Overall Length ........... . .... . 134 ln. (3399mm)
WHEEL TREAD
Overall Width .. ................. 70 ln. (1778mm)
Minimum Turning Radius
Front: .
..... ........... ....... 59.0 ln. (1449mm)
w/ brakes ..... .... ...... 1671n. (4242mm)
Front Axle Clearance ............... 13 ln. (330mm)
Rear:
Rear Axle Clearance
............... 20 ln. (508mm)
Minimum .. ............. 55.31n. (1405mm)
Minimum Ground Clearance .......... 12 In (305mm)
Maximum ............. 75.3 ln. (1913 mm)
