38
EN
NO OK
NO OK
NO
NO
OK
OK

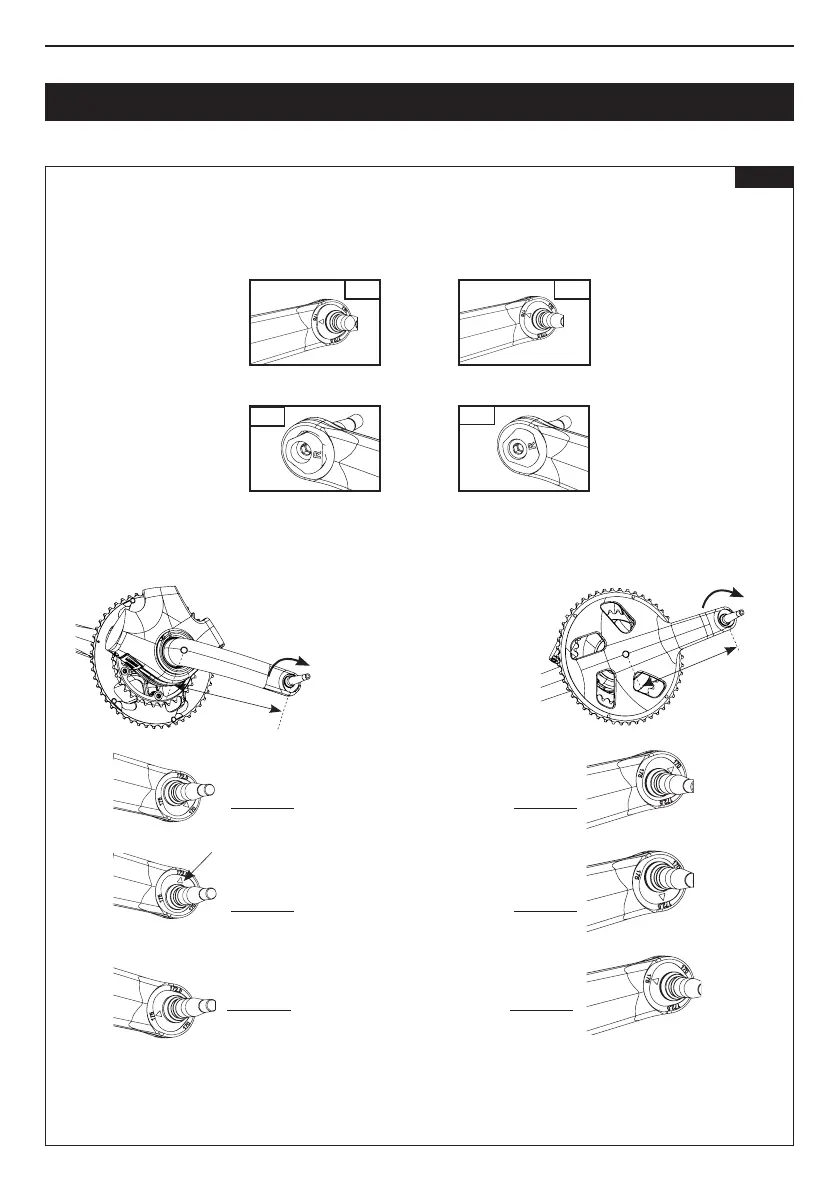

Rotatetheheadoftheconical
pinbeforeattachingthecrankso
thatthemarkeronthepinisset
atthechosencranklength.
Positionofthenutforacrank
lengthof170mm
Positionofthenutforacrank
lengthof172.5mm
Positionofthenutforacrank
lengthof175mm
The nut must reach the bottom of the housing and must not exceed it once tightened
The supporting washer must not exceed its housing
Left crank
Right
crank
Marker
Fig 12
