Pump Accessories Installation 8584 Pump Accessories Installation
EN EN
Remote Start
9.12 .6 Battery installation
The SmartStart is powered by a battery. The battery
is charged by the controller through the supplied
custom cable. The required battery must be ordered
separately.
If the battery is not delivered by LORENTZ, it must
meet the following characteristics:
Genesis NP7-12 or similar. Sealed 12V AGM lead
acid battery
Min. capacity: 7Ah
Max. dimensions without connector: 151 x 70 x
95 mm (5.94 x 2.56 x 3.74 in)
height overall max. 100 mm (3.94 in)
Connector: 4.8 mm (0.189 in) faston tabs

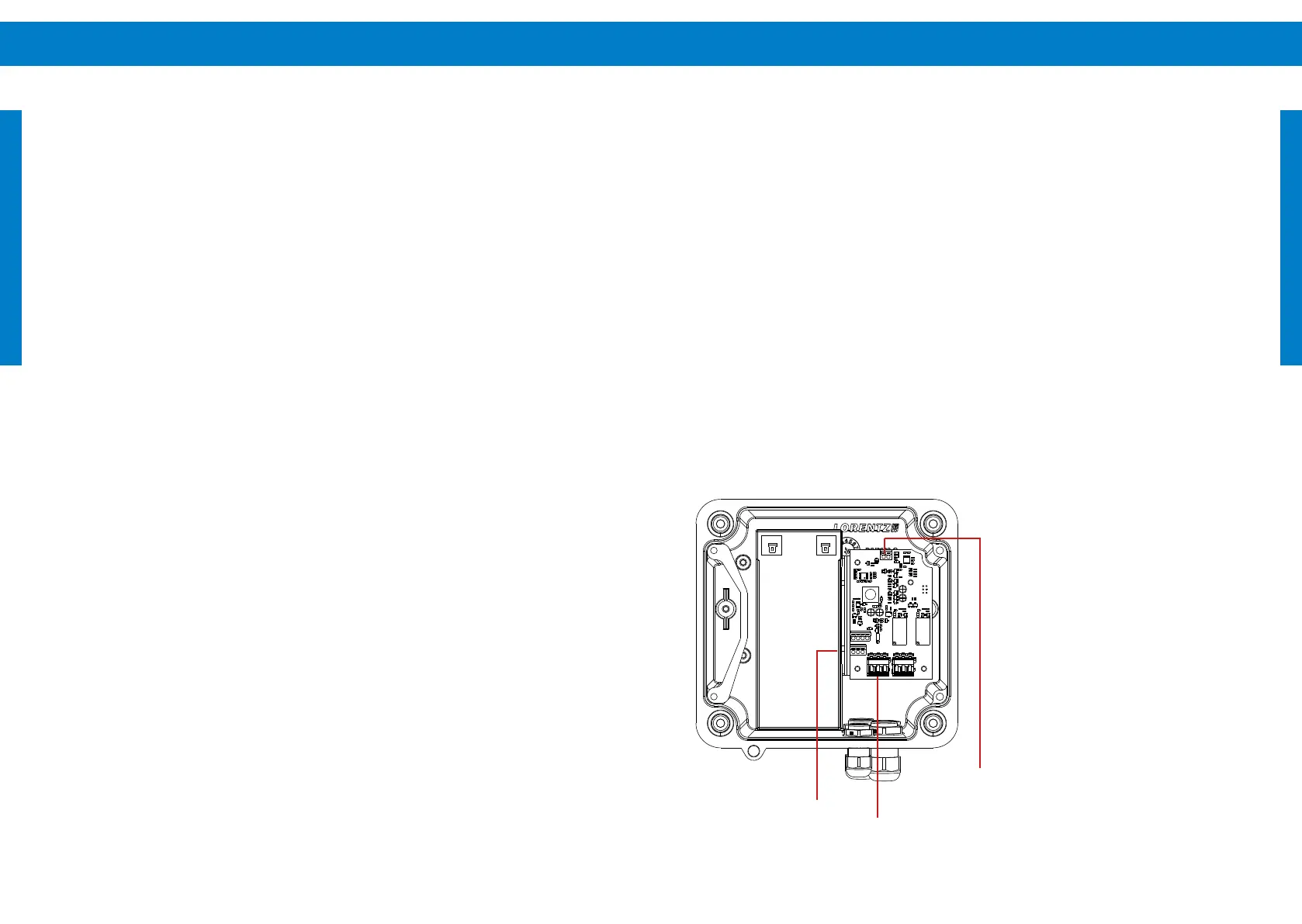

Figure 56: Opened SmartStart
It is possible to purchase a battery from LORENTZ.
Contact your distributor for further information.
If a SmartStarts is delivered by LORENTZ with
batteries included, they must be recharged every 6
months during storage.
9.12 .3 Physical installation
The SmartStart must be mounted within 1 m of the
PSk3 controller. The provided SmartStart to PSk3
cable will dene a logical mounting position.
Bottom access is required to the SmartStart for the
connection of cables. The battery and connections
are accessible from the front after removing the
screwed lid. You must allow a space above and below
the SmartStart of 250 mm.
9.12 .4 Cable entries and external sockets
There are cable glands and plug sockets in the
bottom of the SmartStart. The socket for the remote
PSk3 connection is pre-wired and pre-assembled
in the SmartStart housing. Cables for the generator
connection and the auxiliary connection which leads
through the cable glands have to be xed tightly in
the glands for strain relief and sealing.
9.12 .5 Wiring
The SmartStart to PSk3 cable is prewired and
connected.
The generator auto start connections are made
using the remote switch plug inside the SmartStart.
These terminals are marked NO and Com ("Figure 56:
Opened SmartStart" on page 85). The connector
type is a spring connection, press the white button
with a small screwdriver and then insert the stripped
cable. 5 - 6 mm of bare conductor is required for a
good connection.
The maximum switching capability for the remote
switch is: 250 V AC / 30 V DC, 2 A.
battery
plugcustom cable to
controller
