Installation
4

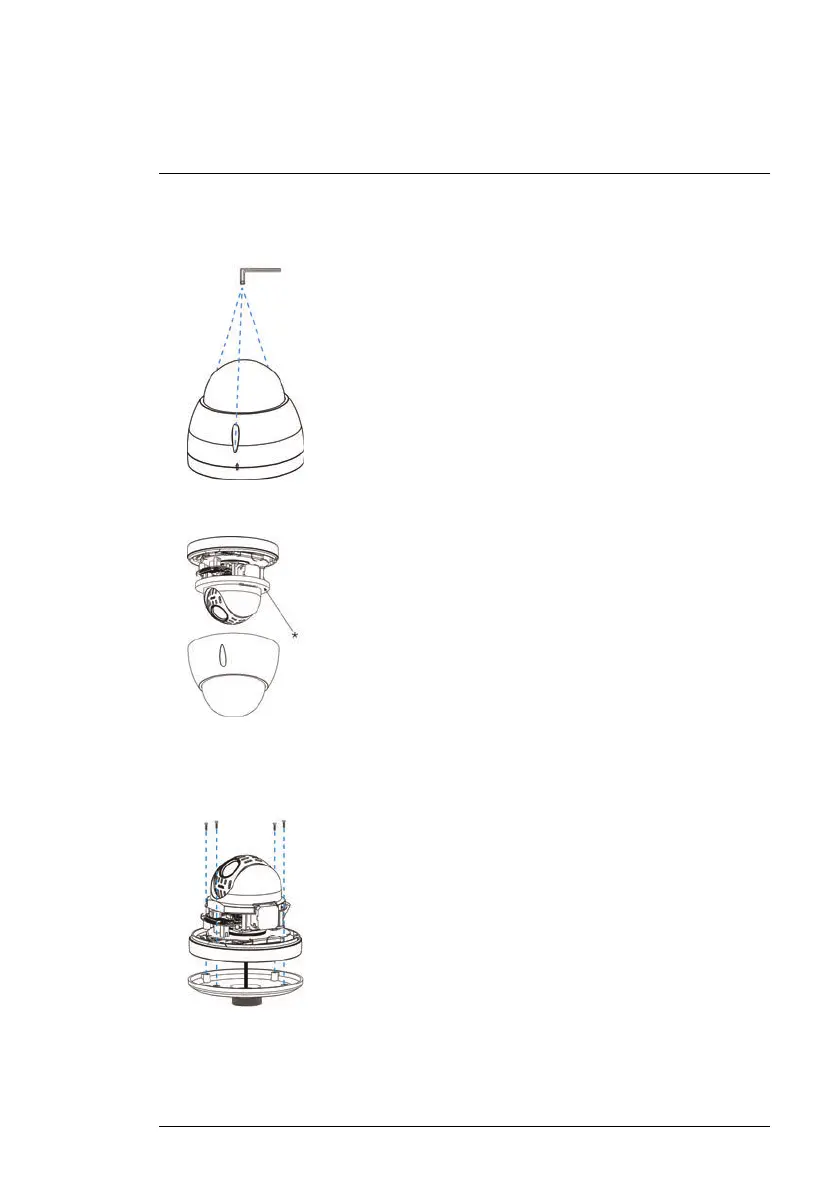

5. Use the included Allen key to loosen the dome cover screws (x3). Remove
the dome cover.
6. Remove the foam ring* around the camera module.
7. Pull the camera cables through the hole in the pendant cap. Use the in-
cluded Allen bolts (x4) to attach the PTZ camera base firmly to the pend-
ant cap. Tighten using the included Allen key.
#LX400020; r.41770/42005; en-US
11
