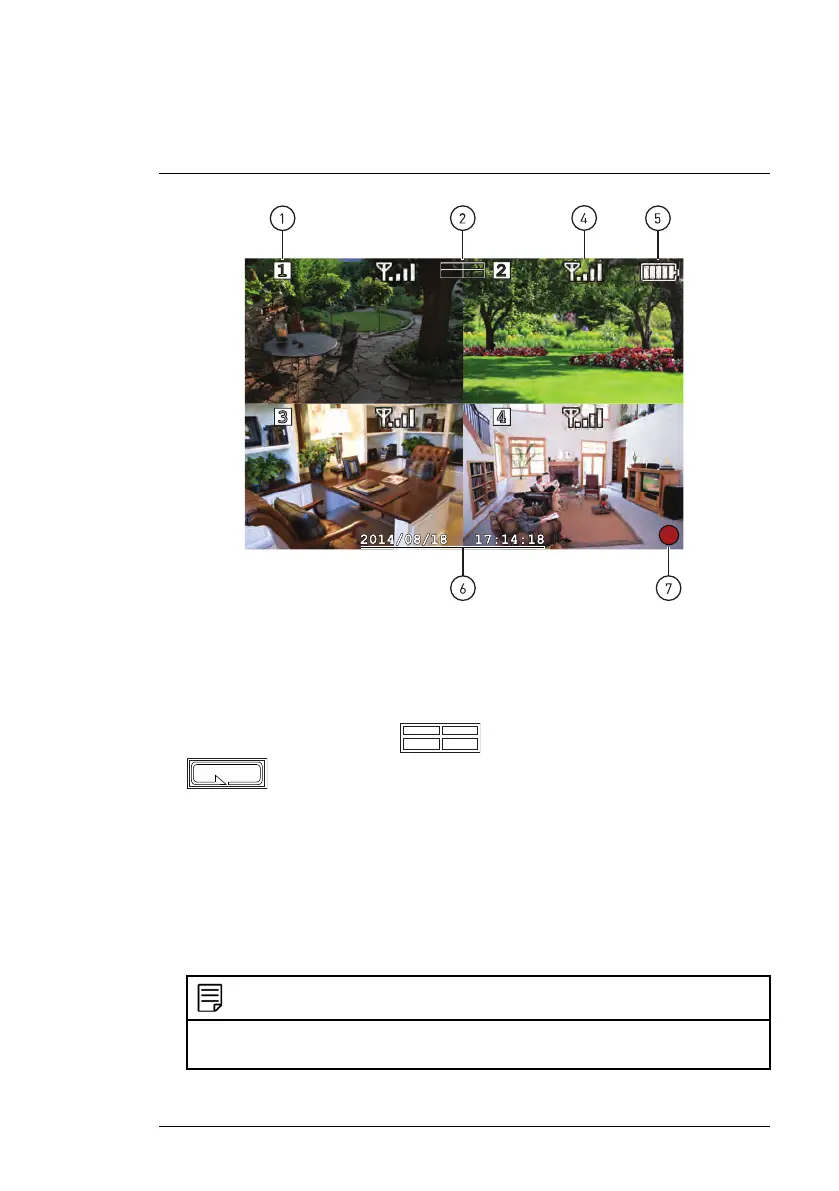

1. Channel indicator: Displays the camera you are presently viewing. If
viewing in Quad mode, the camera indicator will appear above each video
display.
2. Viewing mode indicator: Indicates the viewing mode by showing a differ-
ent icon for Quad Viewing (
) and Auto Sequence Viewing (
) modes. If there is no viewing mode indicator during live view,
then the system is in Single Channel Viewing mode.
3. Zoom indicator: Indicates that the current live view is zoomed in to twice
the original size. Digital zoom is disabled in Quad mode.
4. Signal indicator: The signal indicator shows the strength of the wireless
signal from each connected camera. The number of bars indicates the
strength of the signal. One or no bars indicates the signal is poor, and 4
bars indicate a very strong signal.
NOTE
If the signal is low (for example, 1 or 2 bars) adjust the antennas, or reposition the
camera(s) or receiver for best performance.
