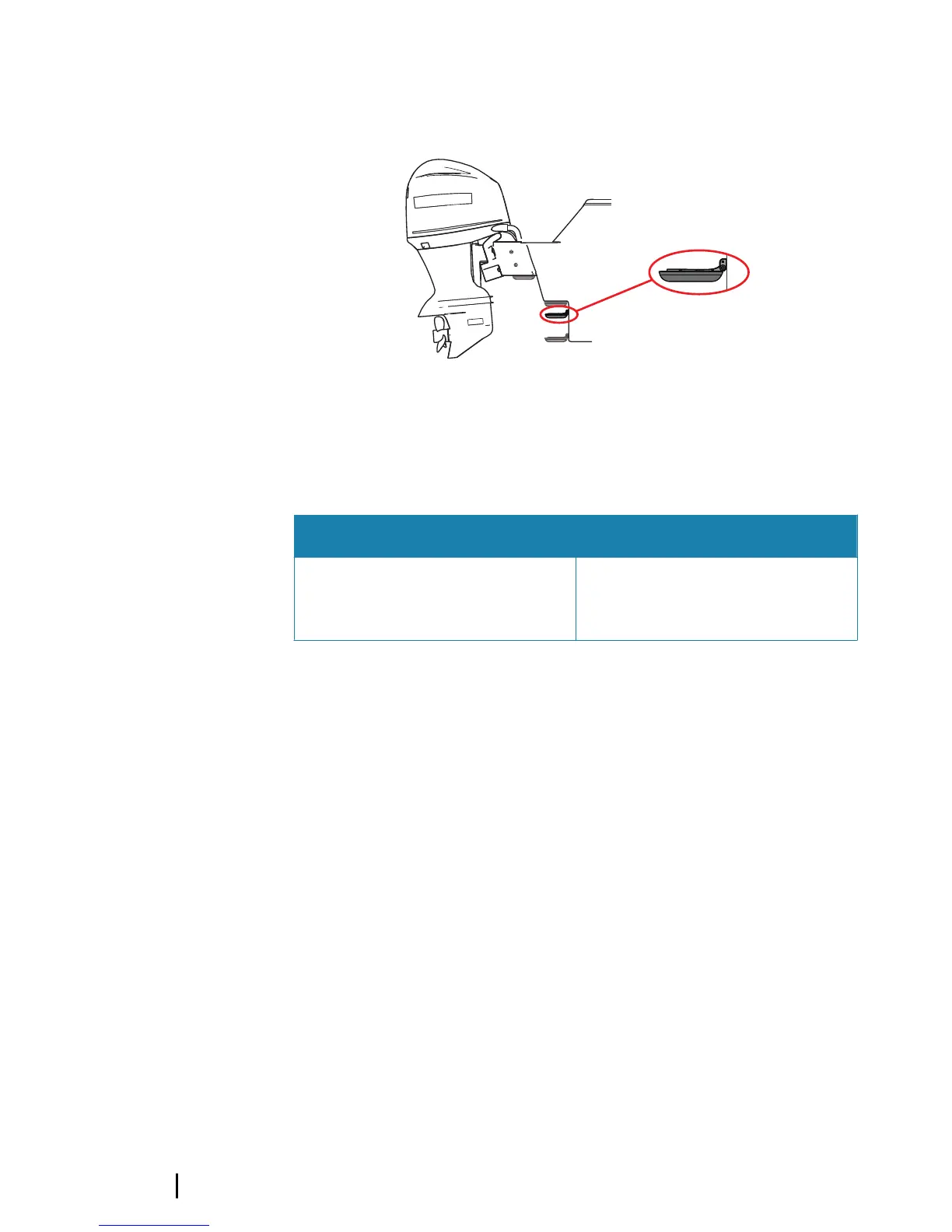

Step mount (Transom bracket)
The transducer can be mounted on a transom bracket. With this
mounting option the transducer can be in the water when you are
on plane, or can be mounted so it is only in the water when you are
moving at trolling speed.
Step mount supplies (not included)
3 mm (1/8”) Drill bit (Transom
mount pilot holes)
Marine high-grade above- or
below-waterline sealant/
adhesive compound
To step mount using transom bracket:
1. Choose a transducer location.
2. Route the transducer cables through the bracket to the location
where the module will be installed.
3. Move the transducer bracket into the desired position and then
use a pencil to mark the pilot holes through the slots in the
bracket.
4. Drill the pilot holes.
5. Apply a marine high-grade above- or below-waterline sealant/
adhesive compound to the pilot holes.
6. Align the bracket slots over the pilot holes and fasten the
bracket to the transom using the supplied screws.
7. To make adjustments to transducer position, loosen the screws
and slide bracket up or down.
8. Connect the transducer cables to the module ports.
After the transducer is connected and your boat is in the water, turn
on the Flip Left/Right feature in your display unit to ensure what is
shown on the left and right side on your display corresponds with
12
Installation | StructureScan 3D Transducer
