Ú

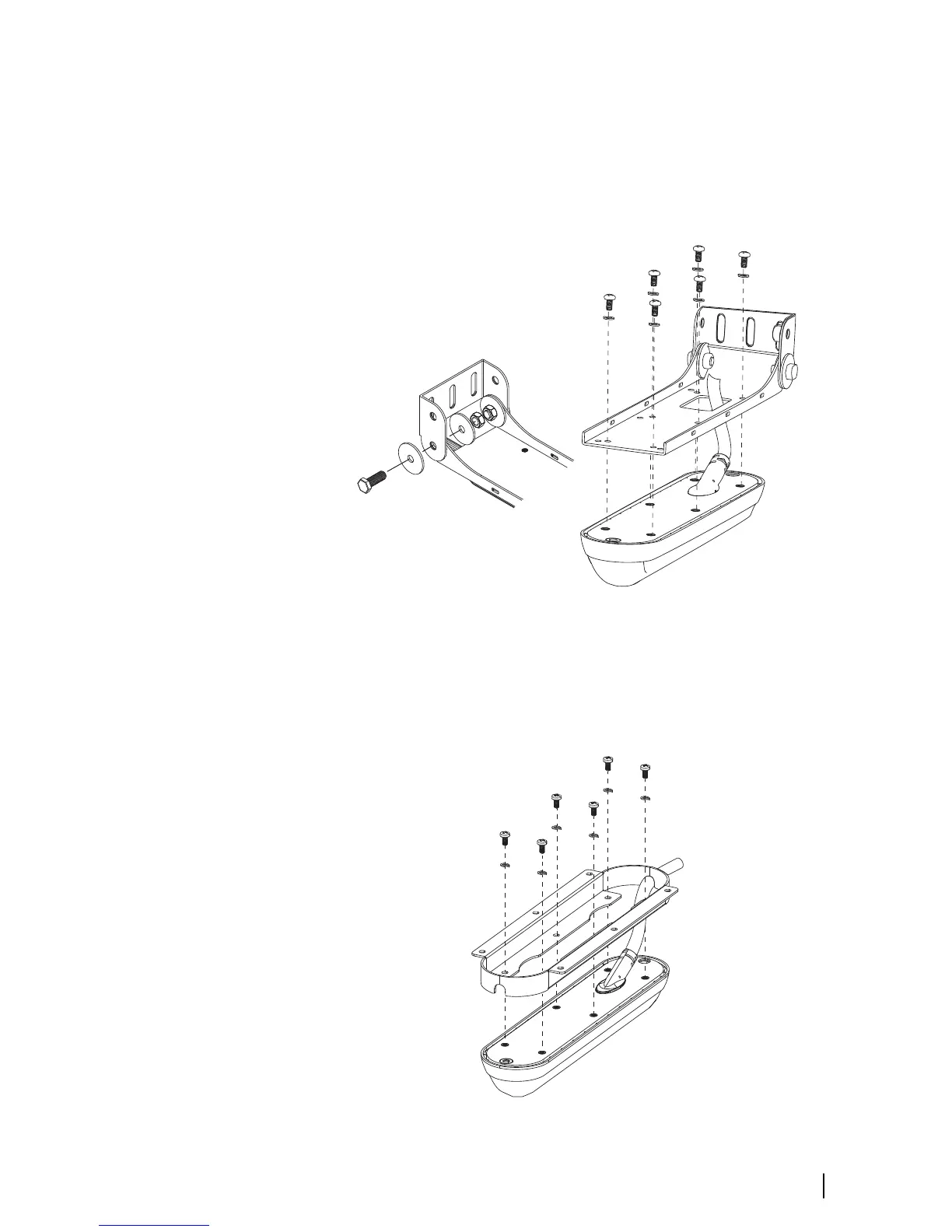

Note: Ensure the cable has been threaded through the
bracket before running the cable through the boat.
Ú
Note: The inside washer must be placed in the groove on
the curved shield before putting the bolt through from the
outside.
Flush mount bracket assembly
To mount the transducer directly to the step (Direct Step mount),
use the flush mount bracket (sold separately).
Installation | StructureScan 3D Transducer
7

Other manuals for Lowrance StructureScan 3D

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Lowrance StructureScan 3D and is the answer not in the manual?

Lowrance StructureScan 3D Specifications

General IconGeneral
Frequency455 kHz, 800 kHz
Beam Width60° at 455 kHz, 45° at 800 kHz
Transducer TypeSkimmer
Mounting OptionsTransom mount
Max Depth300 ft (91 m)
Connector9 Pin
Cable Length20 feet
Maximum Range Side600 feet
Depth Capability300 ft (91 m)
CompatibilityHDS Gen3, HDS Carbon, HDS LIVE
