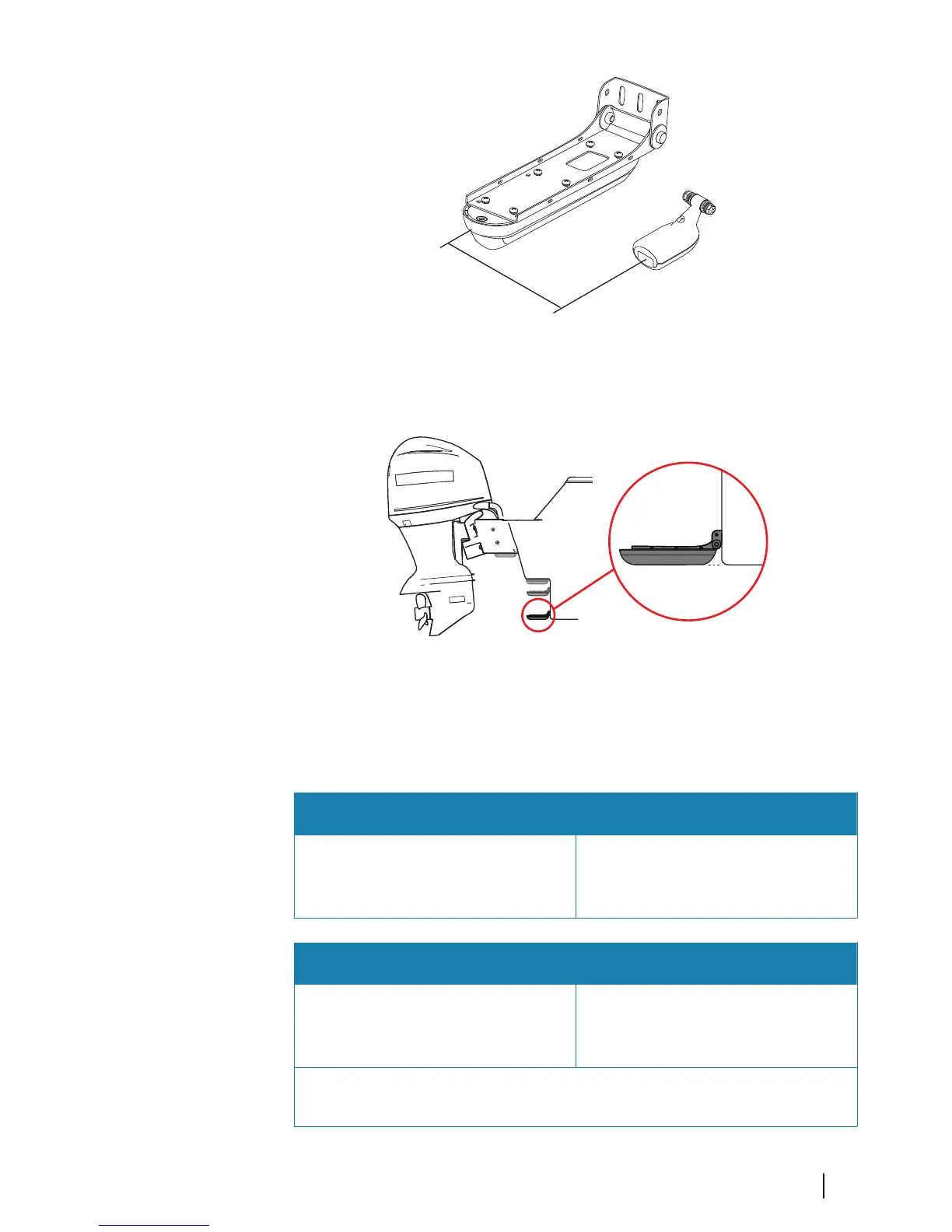

< 0.3m (1ft)
Transom mount (Transom bracket)
The transducer can be mounted on a transom bracket. With this
mounting option the transducer can be in the water when you are
on plane, or can be mounted so it is only in the water when you are
moving at trolling speed.
Transom mount (fiberglass) supplies (not included)
3 mm (1/8”) Drill bit (Transom
mount pilot holes)
Marine high-grade above- or
below-waterline sealant/
adhesive compound
Transom mount (aluminum hull) supplies (not included)
M4 Machine Screws Marine high-grade above- or
below-waterline sealant/
adhesive compound
Plastic isolating material such as King Starboard (prevents
corrosion between bracket and aluminum hull)
Installation | StructureScan 3D Transducer
9

Other manuals for Lowrance StructureScan 3D

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Lowrance StructureScan 3D and is the answer not in the manual?

Lowrance StructureScan 3D Specifications

General IconGeneral
Frequency455 kHz, 800 kHz
Beam Width60° at 455 kHz, 45° at 800 kHz
Transducer TypeSkimmer
Mounting OptionsTransom mount
Max Depth300 ft (91 m)
Connector9 Pin
Cable Length20 feet
Maximum Range Side600 feet
Depth Capability300 ft (91 m)
CompatibilityHDS Gen3, HDS Carbon, HDS LIVE
