what is on the left and right side of your boat. Refer to your display

unit's Operation manual for more information.

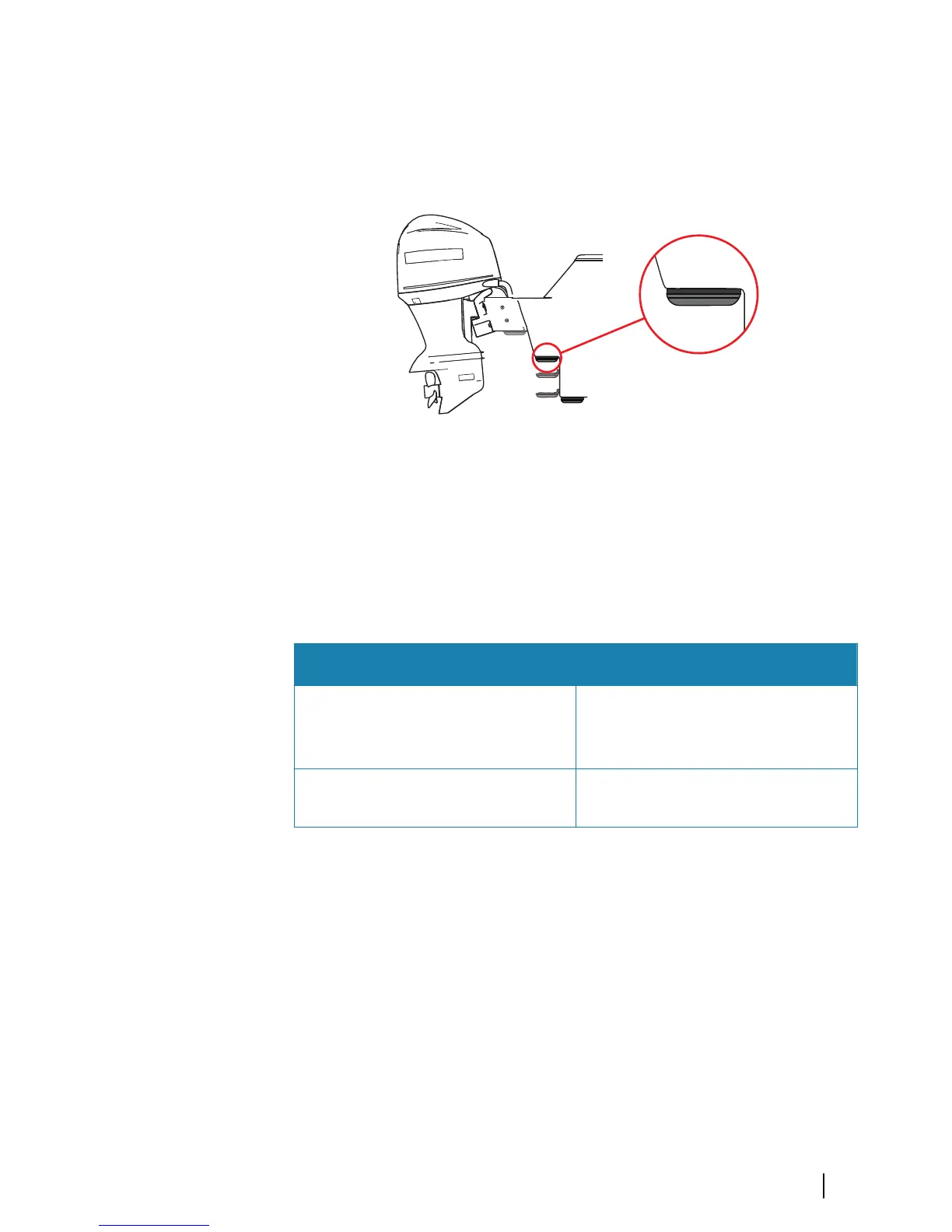

Direct Step mount (Flush bracket)

Note: Do not install the transducer under the hull.

You can mount the transducer in either direction; with the cable

coming out towards or away from the transom when installing with

the direct step (Flush bracket) mount.

Note: Sonar does not track bottom when the transducer is

out of the water.

Direct step mount bracket and supplies (not included)

Pilot hole drill bit (Direct Step

mount pilot holes for self-

tapping metal screws)

Marine high-grade above- or

below-waterline sealant/

adhesive compound

Maximum 5 mm (#10 or 3/16”)

self-tapping metal screws

To direct step mount using flush bracket:

1. Make sure the boat’s step is the same length or longer than the

transducer.

2. After selecting a mounting location, route the transducer cable

to the location where the display will be installed.

3. Attach the transducer to the surface bracket and hold in the

desired position. Use a pencil to mark pilot holes through the

mounting holes on the surface bracket.

4. Drill the pilot holes.

5. Apply a marine high-grade above- or below-waterline sealant/

adhesive compound to the pilot holes.

Installation | StructureScan 3D Transducer
