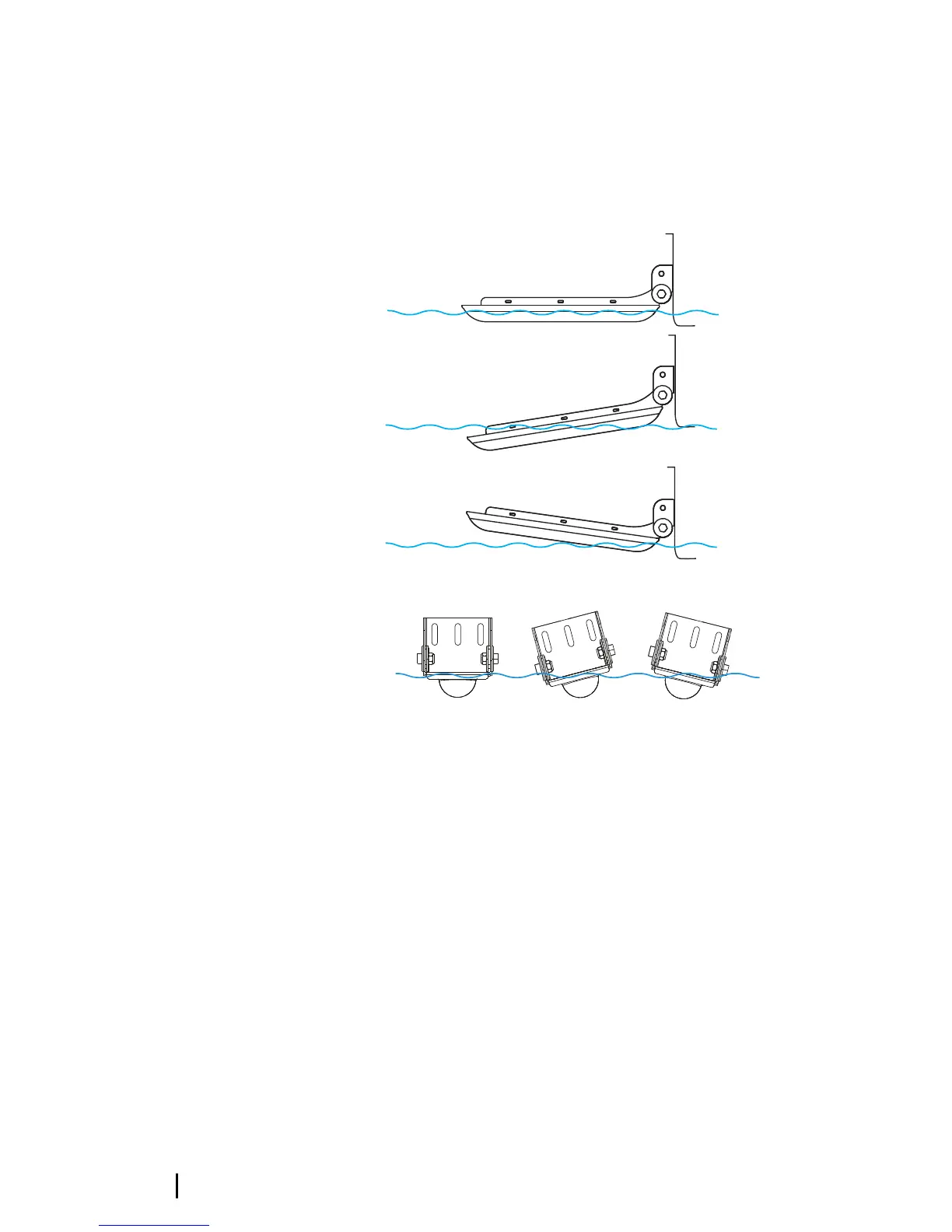

Transducer angle
After mounting the transducer, make sure the transducer is adjusted
so it will be parallel with the waterline in both the horizontal and
vertical axis when moving at trolling speed.
ü
û
û
ü
û
û
Downscan Overlay
The StructureScan 3D transducer should be installed within
approximately 0.3 m (1 ft) of the broadband sounder transducer to
get optimum performance from the Downscan Overlay feature.
Downscan overlay feature performance could be degraded if the
StructureScan 3D transducer is too far away from the broadband
sounder transducer.
8
Installation | StructureScan 3D Transducer

Other manuals for Lowrance StructureScan 3D

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Lowrance StructureScan 3D and is the answer not in the manual?

Lowrance StructureScan 3D Specifications

General IconGeneral
Frequency455 kHz, 800 kHz
Beam Width60° at 455 kHz, 45° at 800 kHz
Transducer TypeSkimmer
Mounting OptionsTransom mount
Max Depth300 ft (91 m)
Connector9 Pin
Cable Length20 feet
Maximum Range Side600 feet
Depth Capability300 ft (91 m)
CompatibilityHDS Gen3, HDS Carbon, HDS LIVE
