Lowrance StructureScan 3D Installation Manual

Check the contents
Included with the StructureScan 3D Transducer, is the transom
mounting bracket, and a hardware mounting kit. The transducer has
a 6 m (20 ft) cable attached.

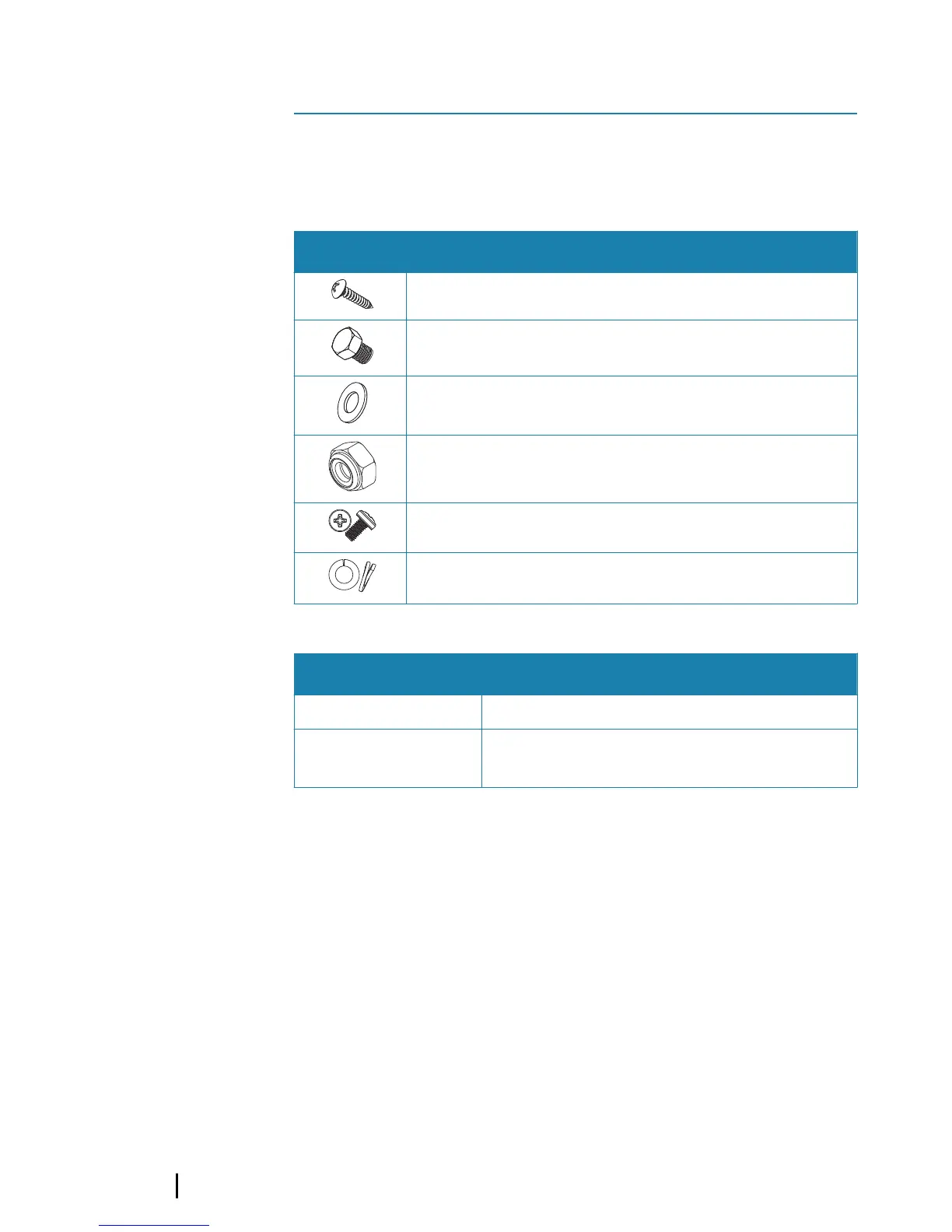

Hardware mounting kit (included)
Transom mount screws #10x1-1/4" (3)
Bracket assembly bolts M6x12mm (2)
Bracket assembly washers M6 (4)
Bracket assembly nylon lock nuts M6 (2)
Transducer attachment screws M4x8mm (6)
Transducer attachment lock washers M4 (6)
Required tools and supplies (not included)
Drill Phillips (slotted-head screwdriver)
Drill bits Marine high-grade above- or below-
waterline sealant/adhesive compound
2
4
Check the contents | StructureScan 3D Transducer

Lowrance StructureScan 3D Specifications

General

Frequency	455 kHz, 800 kHz
Beam Width	60° at 455 kHz, 45° at 800 kHz
Transducer Type	Skimmer
Mounting Options	Transom mount
Max Depth	300 ft (91 m)
Connector	9 Pin
Cable Length	20 feet
Maximum Range Side	600 feet
Depth Capability	300 ft (91 m)
Compatibility	HDS Gen3, HDS Carbon, HDS LIVE
