Installation

Mounting options

The transducer can be mounted on the transom, jackplate, step or

directly to your boat’s hull.

Note: Step and direct to hull mount requires the separately

sold ‘Direct/Step mount (Flush bracket)’ mounting bracket.

Use the following table to determine which mounting option is

best suited to your boat/installation preferences.

Note: When mounting the transducer, make sure there is

nothing around the mounting location that could interfere

with its sonar beams.

Note: If mounting where the transducer comes out of the

water, for example when the boat is on plane, the sonar will

not work while the transducer is out of the water.

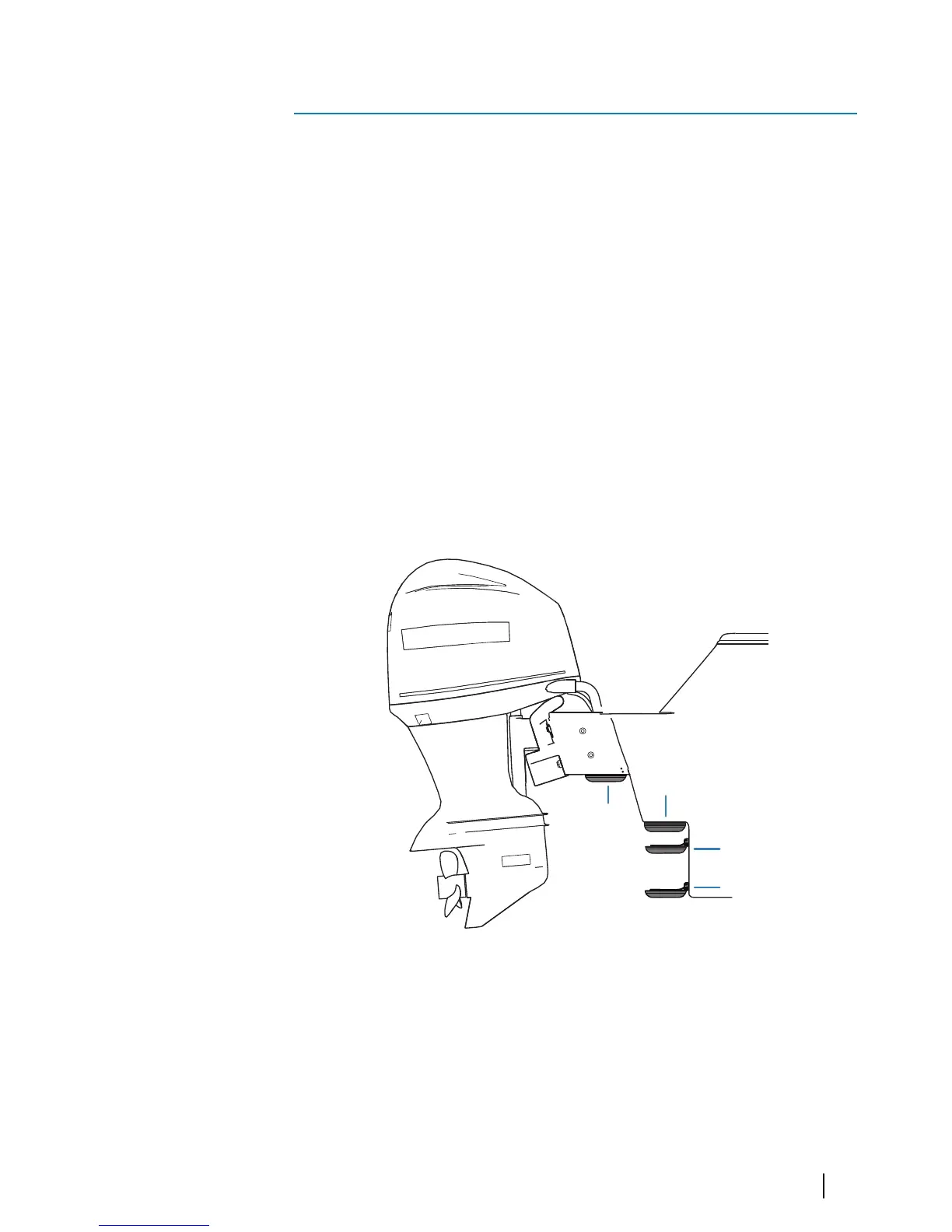

1 Jackplate mount (Transom bracket)

2 Direct Step mount (Flush bracket)

3 Step mount (Transom bracket)

4 Transom mount (Transom bracket)

Installation | StructureScan 3D Transducer
