3-1. Front Panel Overview

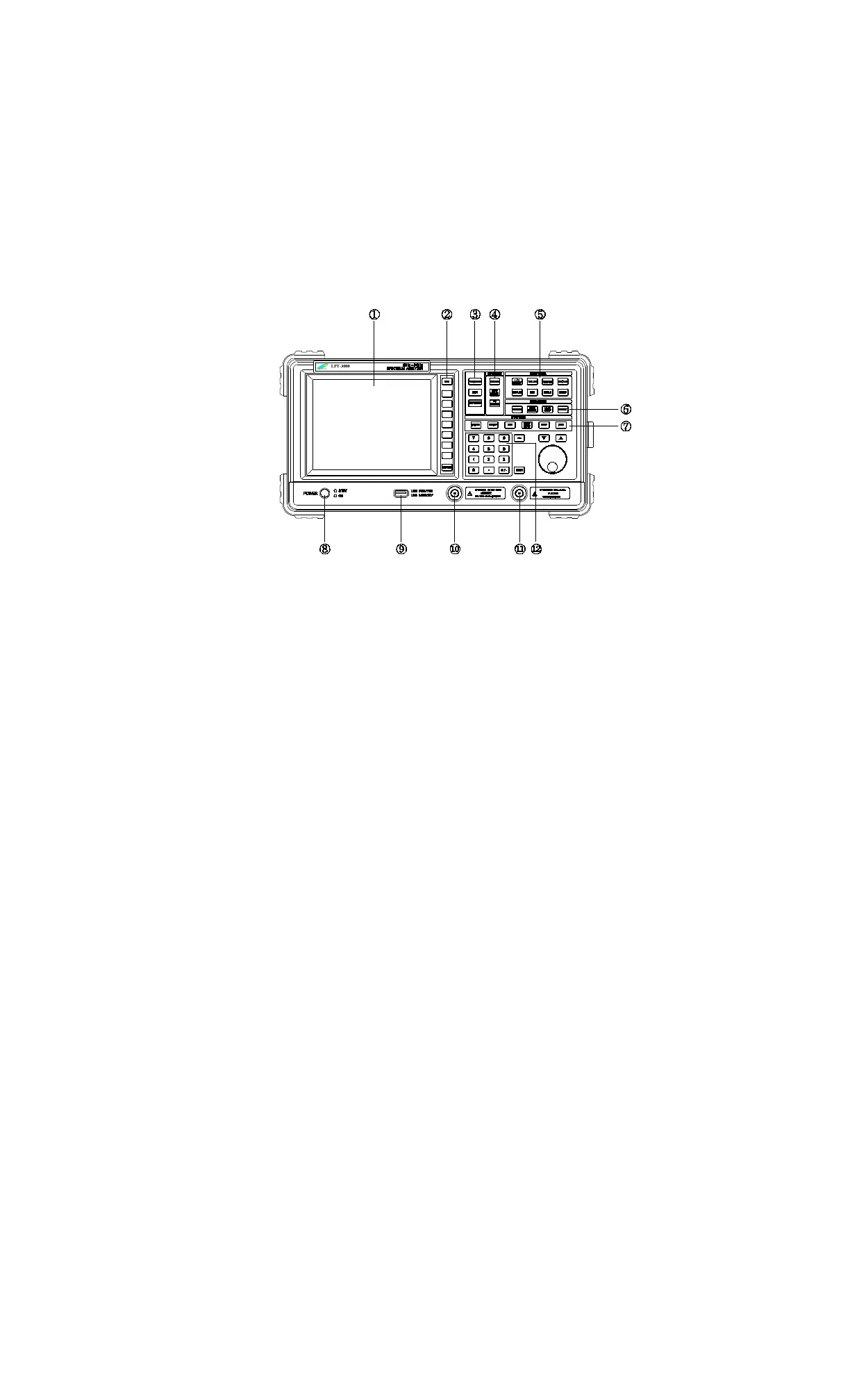

[Figure 3-1] Front panel
1. 6.4 ″ TFT-LCD.
Displays the wave type, parameter set-up, indicated value, and menu key label.
2. Unlabeled soft keys next to the screen.
Allow the user to perform several different functions using the menu displayed on the
LCD screen.
3. FREQUENCY, SPAN, and AMPLITUDE keys.
Activate the primary spectrum analyzer functions and access menus of related
functions.
FREQUENCY key allows the user to enter or change the frequency parameter data.
SPAN key allows the user to enter or change the span parameter data.
AMPLITUDE key allows the user to enter or change the amplitude parameter data.
4. MARKER function.
