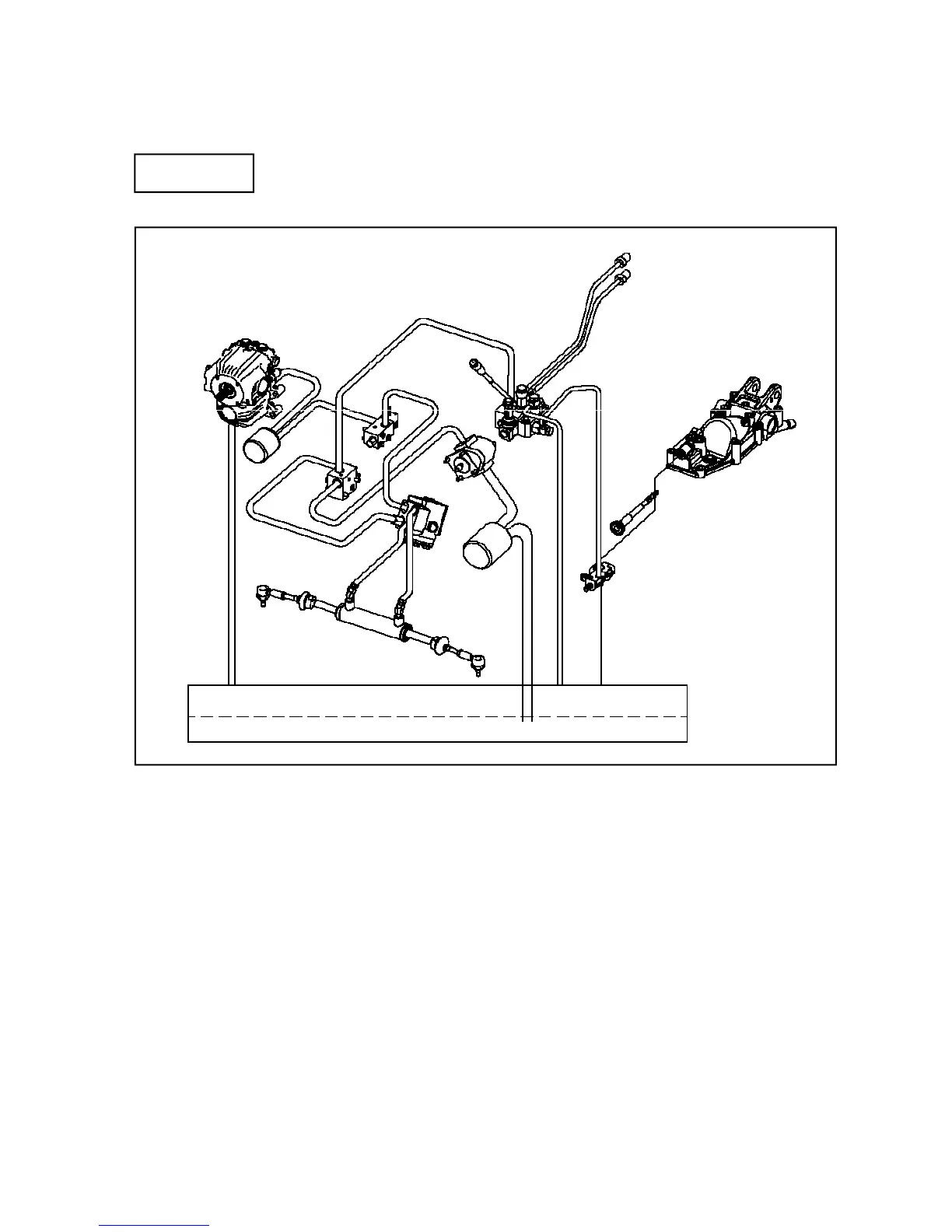

(5) Hy
draulic S
y
stem
Diagram
HST ty
pe
⑧
⑨
⑥
⑦
③
④
①
②
⑨
⑥
⑤
⑬
⑩
⑪
⑫
1. Hy
draulic
oil filter
6. Inde
pendent
PTO valve
11. Dow
n
speed co
ntrol valve
3
3
3
3
-
16
1. Hy
draulic
oil filter
2. Hy
draulic
pump
3. Priority
valve
4. Steerin
g unit
5. Steerin
g cy
linder
6. Inde
pendent
PTO valve
7. HST filter
8. HST unit
9. Remote
control
valve (option)
10. Hy
draulic
lift control valve
11. Dow
n
speed co
ntrol valve
12. Hy
draulic
cylinder & h
ousing
13. Oil tan
k (Transmission case
)
38
40
Table of Contents
Table of Contents
2
General Notices for Safety
6
Before Using the Tractor
6
Safety Precautions (Read this for Safety before Using)
8
Notices before Using
8
Notices When Starting Engine
10
Notices While Operating/Using the Tractor
11
Notices When Connecting Implement
13
Notices When Towing the Tractor
13
Notices When Transporting the Tractor
14
Notices When Parking Tractor
14
Notices When Checking Tractor after Work
15
Notices When Handling Diesel Fuel
16
Operator Protective Structure (OPS)
16
Long-Term Storage
17
Preparation for Storage
17
Check & Maintenance During Storage
18
Preparation for Reuse
18
Notices for "Use & Disposal" Related to Environment Preservation
19
Symbols
20
Safety Decals
21
Handling and Maintenance of Safety Decals
21
Safety Decals and Attaching Position
21
HST Type
23
The Name of each Part
23
Key Switch
24
Cold Start Aid Indicator
24
Tachometer and Hour Meter
25
Engine Coolant Temperature Gauge
25
Fuel Level Gauge
25
Turn Signal Light Switch
26
Engine Oil Pressure Indicator
26
Battery Charging Indicator
26
Light Switch
27
Horn Switch
27
Hazard Warning Light Switch
28
Work Light Switch
28
PTO Operation Indicator
29
PTO Switch
29
Parking Brake Indicator
29
Operating Levers and Pedals
30
Throttle Lever
30
Brake Pedal
31
Parking Brake Lever
31
Range Gear Shift Lever
31
PTO Gear Lever (if Fitted)
32
4WD Lever
32
Differential Lock Pedal
33
HST Forward/ Reverse Pedal (HST Type)
33
HST Neutral Switch
34
Cruise Control Lever (HST Type)
34
Driver's Seat (HST Type)
35
Seat Adjustment
35
Hydraulic System
36
Steering System
36
Hydraulic Lift Control
37
Down Speed Control Knob
37
Remote Control Lever and Quick Coupler
38
Hydraulic System Diagram
39
Safety Device
40
Seat Belt
40
Foldable Safety Frame (R.O.P.S Type)
40
Operation and Work
41
Engine Start and Stop
41
Engine Start
41
Start in Cold Weather
42
Engine Stop
42
How to Drive and How to Stop
43
How to Drive
43
Changing Speed
44
Emergency Stop
44
Stopping Tractor
45
Driving Tractor on the Road
46
Parking
47
How to Handle New Tractor
48
Check Points
48
Notices in Handling New Tractor
48
Attaching Implement
49
3-Point Linkage
49
Upper Link
49
Upper Link Installation and Adjustment
50
Adjustment of Lift Rod's Length
50
Adjustment of Stabilizer's Length
50
Reference of Implement Installation Part
51
Reference of PTO Shaft
51
PTO Safety Cover and Protection Cap
52
Hitch and Drawbar
53
7-Pole Connector (Option)
54
Technically Maximum Permissible Mass
55
Adjusting Wheel Tracks and Tire Replacement
56
Tires and Load Capacity
56
Adjusting Steering Angle
57
Driving Speed
58
Lubrication and Maintenance
59
Checking of each Part
59
Checking Parts
59
Maintenance Table
60
Lubricants and Capacity
61
Access for Maintenance
62
First 50 Hour Check
62
Checking before Staring (Daily Check)
63
Engine Oil
63
Fuel Tank
64
Instrument Panel & Indicators
64
Turn Signal Lights, Lights, Horn
65
Engine Coolant
65
Air Cleaner (Dry Type)
66
Cleaning of Radiator and Radiator Screen
67
Tires Air Pressure and Damage
67
Tightening State of Bolts and Nuts of each Part
68
Adjustment of Brake Pedal Play
68
Adjusting HST Control Linkage (HST Type)
69
Every 50 Hour Check
70
Lubricating Grease
70
Checking Transmission Oil
70
Checking Front Axle Oil
71
Battery Check
71
Air Cleaner (Dry Type)
71
Cleaning of Radiator and Radiator Screen
71
Every 300 Hour Check
72
Replacing Engine Oil and Filter
72
Replacing Hydraulic Oil Filter
73
Replacing Fuel Filter Cartridge
74
Replacing Air Cleaner Element (Dry Type)
74
Tension Adjustment of Fan Belt
75
Toe-In
75
Every 600 Hour Check
76
Changing Front Axle Oil
76
Changing Transmission Oil
76
Replacement of Engine Coolant
77
Adjusting Engine Valve Clearance
78
Checking Nozzle Injection Pressure
78
General Maintenance (When Required)
79
Air-Bleeding from Fuel System
79
Fuse & Main Fuse
81
Battery Handling and Notices
83
Troubleshooting
87
