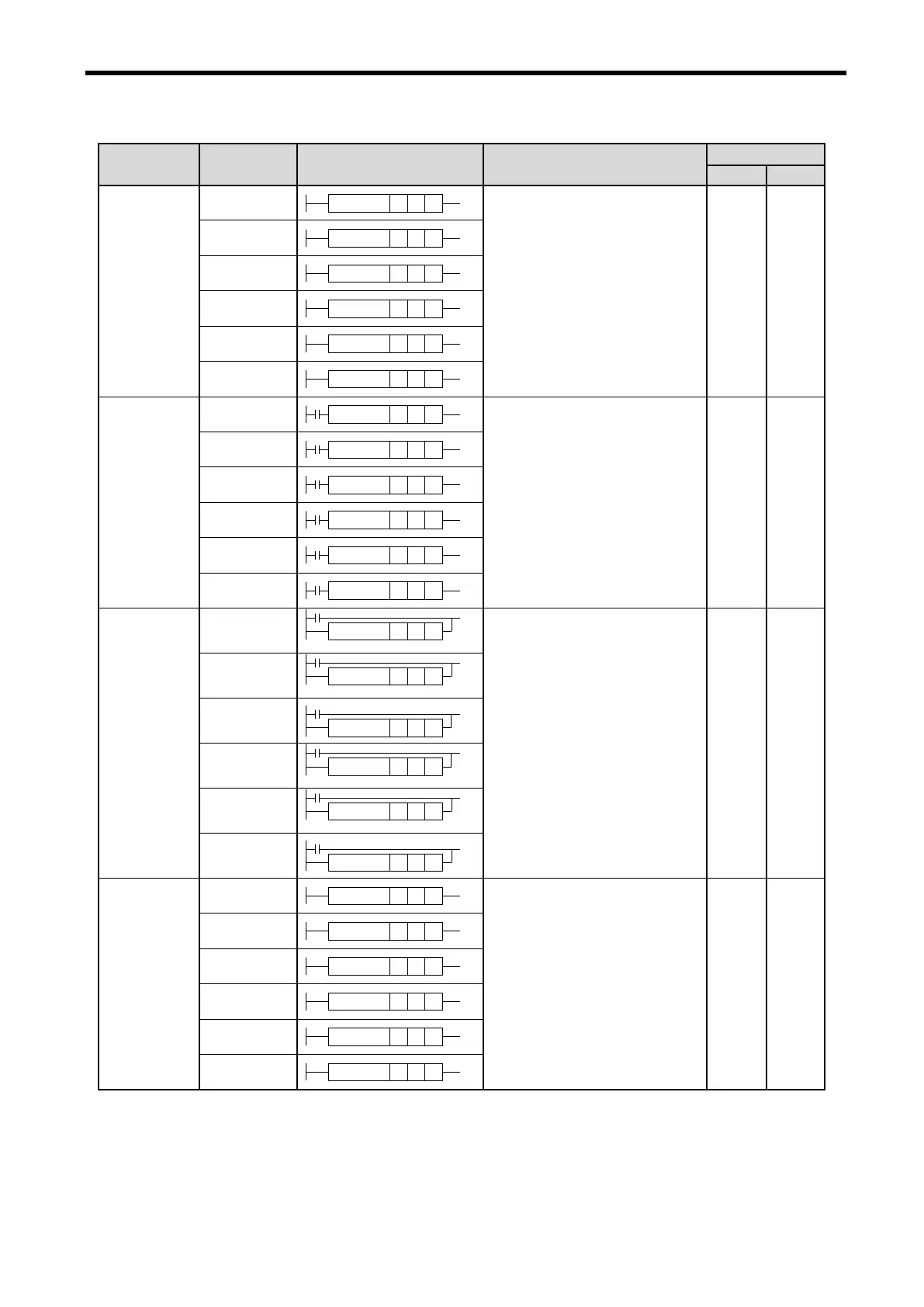

LSIS XBC-DN40SU - Page 358

Appendix 4 Instruction List
App. 4-16
(4) Comparison instruction (continued)
Classification
Designations
Symbol
Description
Support
XGK
XGB
Three 16-Bit
Data Compare
(LOAD)
LOAD3=
3= S2S1 S3
Saves 1 in Bit Result(BR) if each
value of (S1), (S2), (S3) meets
given condition
○
○
LOAD3>
3> S2S1 S3
LOAD3<
3< S2S1 S3
LOAD3>=
3>= S2S1 S3
LOAD3<=
3<= S2S1 S3
LOAD3<>
3<> S2S1 S3
Three 16-Bit
Data Compare
(AND)
AND3=
3= S3S2S1
Performs AND operation of (S1),
(S2), (S3) Compare Result by
given condition and Bit Result
(BR), and then saves its result in
BR
○
○
AND3>
3> S3S2S1
AND3<
3< S3S2S1
AND3>=
3>= S3S2S1
AND3<=
3<= S3S2S1
AND3<>
3<> S3S2S1
Three 32-Bit
Data Compare
(OR)
OR3=
3= S2S1 S3
Performs OR operation of (S1),
(S2), (S3) Compare Result by
given condition and Bit Result
(BR), and then saves its result in
BR
○
○
OR3>
3> S2S1 S3
OR3<
< 3 S2S1 S3
OR3>=
> =3 S2S1 S3
OR3<=
3<= S2S1 S3
OR3<>
3<> S2S1 S3
Three 16-Bit
Data Compare
(LOAD)
LOADD3=
D3= S2S1 S3
Saves 1 in Bit Result(BR) if each
value of (S1+1,S1), (S2+ 1,S2),
(S3+1,S3) meets given condition
○
○
LOADD3>
D3> S2S1 S3
LOADD3<
D3< S2S1 S3
LOADD3>=
D3>= S2S1 S3
LOADD3<=
D3<= S2S1 S3
LOADD3<>
D3<> S2S1 S3
