Lucent Technologies MERLIN LEGEND Release 6.1 System Planning

MERLIN LEGEND Communications System Release 6.1
T1/PRI Planner (Continued)
CONTROL UNIT
100D
MODULE 1
SLOT:____
100D
MODULE 2
SLOT:____
100D
MODULE 3
SLOT:____
Approximate
Distance_____
Approximate
Distance_____
Approximate
Distance_____
CSU
Acculink 3150
Other*
None
Acculink 3150
Other*
None
Acculink 3150
Other*
None
Connection 1
CO
PBX
PRI**
* Other model numbers
** The switching equipment
of the service provider
must be 4ESS Generic 13 or later
or 5ESS G6 or later.
Key:
Digital Transmission
Facility
Primary Synchronization
Source
Secondary Synchronization
Source
Tertiary Synchronization
Source
P
S
T
Clock
CSU CSU
Tie
LS
GS
DID
S56 Data
Services
T1 Emulated Trunks
Connection 2
CO
PBX
PRI**
Tie
LS
GS
DID
S56 Data
Services
T1 Emulated Trunks
Connection 3
CO
PBX
PRI**
Tie
LS
GS
DID
S56 Data
Services
T1 Emulated Trunks
4

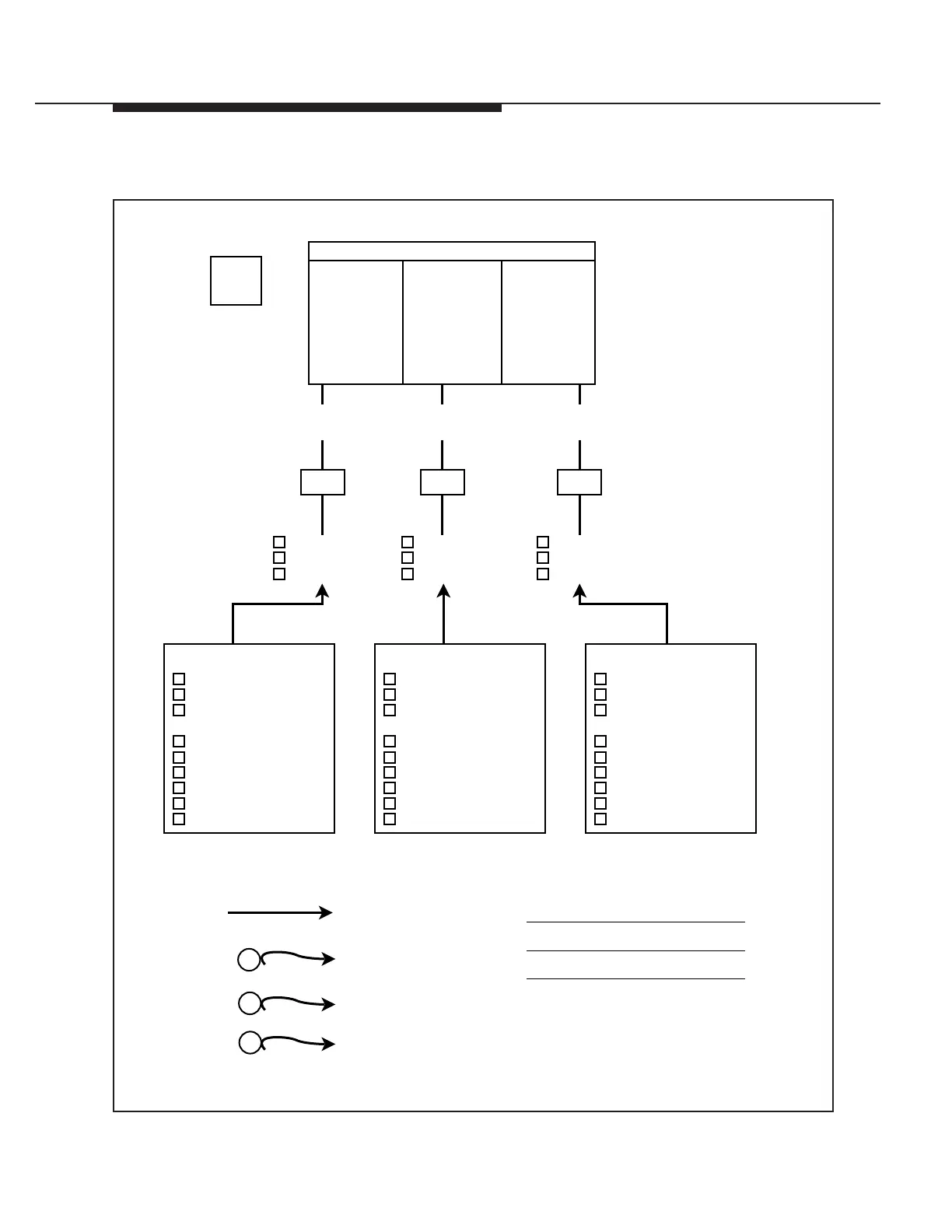

DS1 Planning Map
