33
Chapter
10
DIP
Switch Setting
10.1
Description of DIP
DIP
Function Descriptions
DIP1 & DIP2
Output Resolution
DIP3
OFF (Normal mode): 30/
25 fps, applicable to
general
scene
ON (High-speed mode): 60/50
fps, applicable to support
rapidly changing scene
(Only applicable to 1080P)
DIP4
OFF
:
60Hz
ON
:
50Hz
10.2

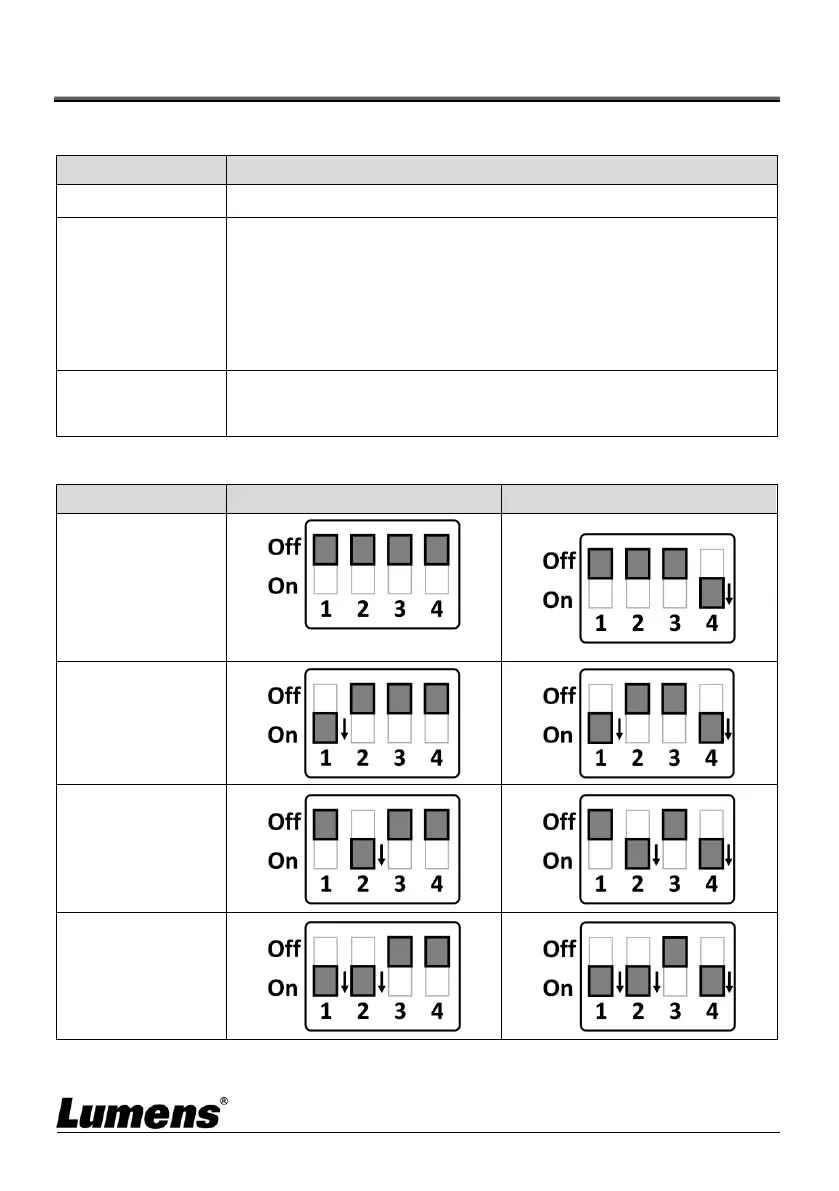

Resolution Switch
Resolution
60Hz
50Hz
1920 x 1080
(Default V
alues)
3840 x 2160
1280 x 720
1024 x 768
33
35
