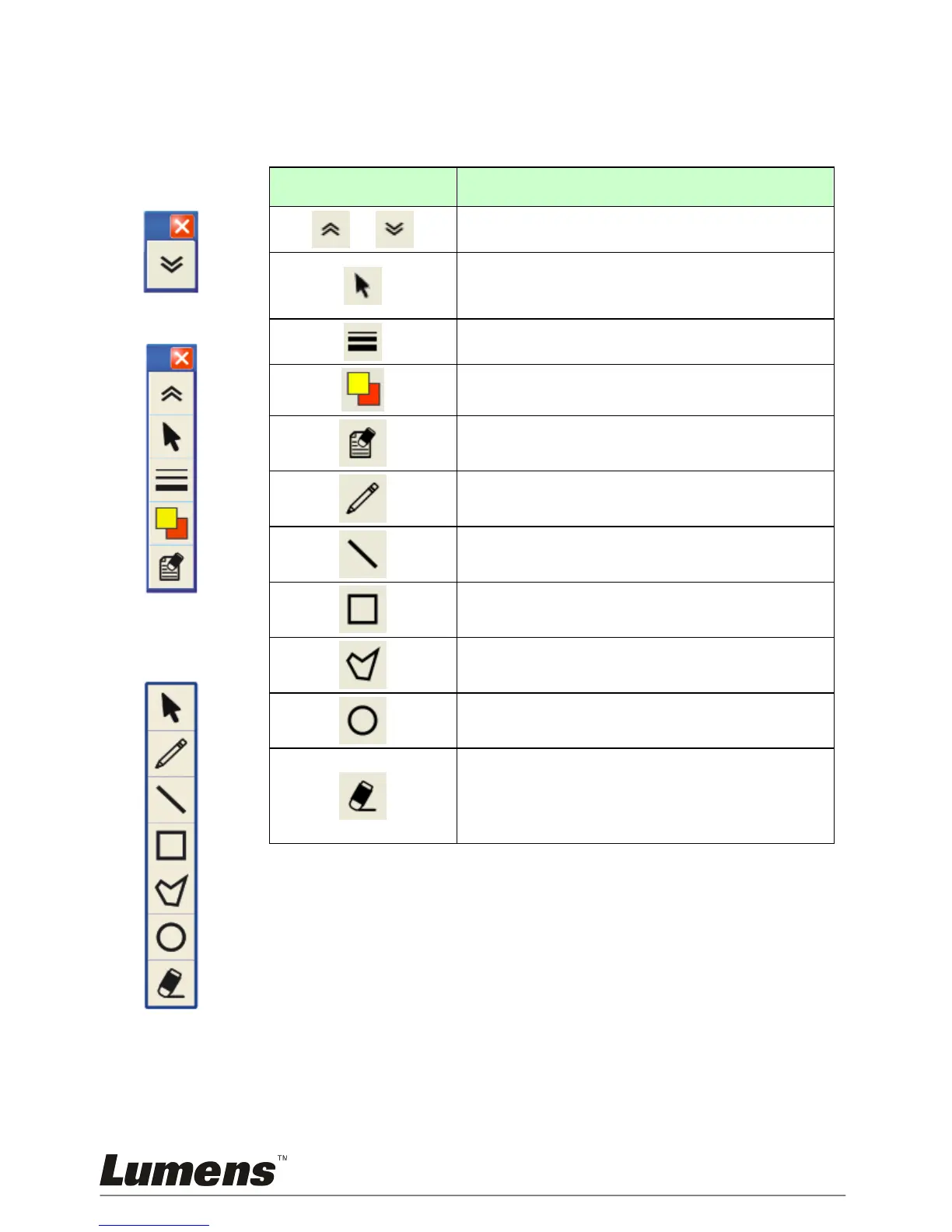

25
6.2.6
A
nnot
ation T
ools (
A
nnot
ation)
A
fter the mouse i
s connected, right cl
ick the mous
e to star
t the too
ls.
<Note> When the s
etting menu is a
ctivated, the to
ols cannot be used.
Icon of
Annot
ation
Main Menu
Free-hand
Drawing T
ool
menu
Icon
Description
/
Expand/Collapse the
Annotation m
enu
Open/Close the F
ree-han
d Drawin
g
T
ool
menu
Select the line
width
Select pen co
lor
Clear all
Free-hand dra
wing tool
Draw a line
Draw a rectangle
Draw a pol
ygon
Draw an ellipse
Eraser
(Clear m
arks of free
-hand drawing
tool)
25
27
Table of Contents
Default Chapter
2
Table of Contents
2
Copyright Information
5
Chapter 1 Safety Instructions
6
Precautions
7
FCC Warning
7
EN55022 (CE Radiation) Warning
7
Chapter 2 Package Contents
8
Chapter 3 Product Overview
9
Relative Position of the Presenter and Document
9
Chapter 4 Installation and Connections
10
System Diagram
10
Connecting to a Projector or Monitor
11
Connecting to a Computer and Use Lumens Software or an
11
Interactive Whiteboard (IWB)
11
Connecting to Internet
12
Connecting to a Projector, 2 Pcs, and a Monitor at the same Time
12
Connecting to a TV (C-Video or S-Video)
13
Connecting to an HDTV
13
Connecting to DVD and Display DVD Images
14
Connecting to a Computer with RS232
15
Connecting to Audio Input and Output
15
Installing Application Software
16
Chapter 5 Start Using
17
Chapter 6 Control Panel/Remote Control and Setting Menu
18
Functions of Control Panel and Remote Control
18
Setting Menu
20
Chapter 7 Descriptions of Major Functions
27
I Would Like to Automatically Adjust the Image to Have Best Brightness and Focusing Performance (Auto Tune)
27
I Would Like to Switch Image Sources
27
I Would Like to Set the Image Source of VGA OUT2
27
I Would Like to Make Text Clearer and Photos more Colorful
28
I Would Like to Zoom In/Out Images
28
I Would Like to Adjust the Focal Length
28
I Would Like to Adjust the Brightness
29
I Would Like to Turn On/Off the Lamp
29
I Would Like to Freeze Images
29
I Would Like to Adjust the Volume
29
I Would Like to Capture Images
30
I Would Like to Record Videos
31
I Would Like to View Captured/Recorded Images
31
I Would Like to Delete the Captured/Recorded Images
32
I Would Like to Automatically Delete the Stored Images Whenever It Is Turned off (Auto Erase)
32
I Would Like to Use the MASK and Spotlight Function
32
I Would Like to Enlarge a Part of the Image (PAN)
33
I Would Like to Play the Slides (Slide Show)
33
I Would Like to View the X-Ray Film
34
I Would Like to Compare Images (Compare Live Images with Stored Images (PIP))
34
I Would Like to Reduce the Image Noise (Projector Type)
35
I Would Like to Set the Time for PS760
35
I Would Like to Lock/Unlock Keys
36
I Would Like to Resume the Factory Default Settings (Factory Reset)
37
I Would Like to Use a USB Disk
37
Computer-Related Functions
37
I Would Like to Use the Network Remote Control Function
41
Chapter 8 Connecting to Microscope
45
Chapter 9 DIP Switch
47
Connecting to a Projector or Monitor
47
Connecting to a TV/DVD
48
Chapter 10 Packing the Machine
49
Chapter 11 Troubleshooting
50
Attachment 1
53
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Lumens PS760 and is the answer not in the manual?
Ask a question
Lumens PS760 Specifications
General
Brand
Lumens
Model
PS760
Category
Document Camera
Language
English
