4.10 Dip Switch Setting

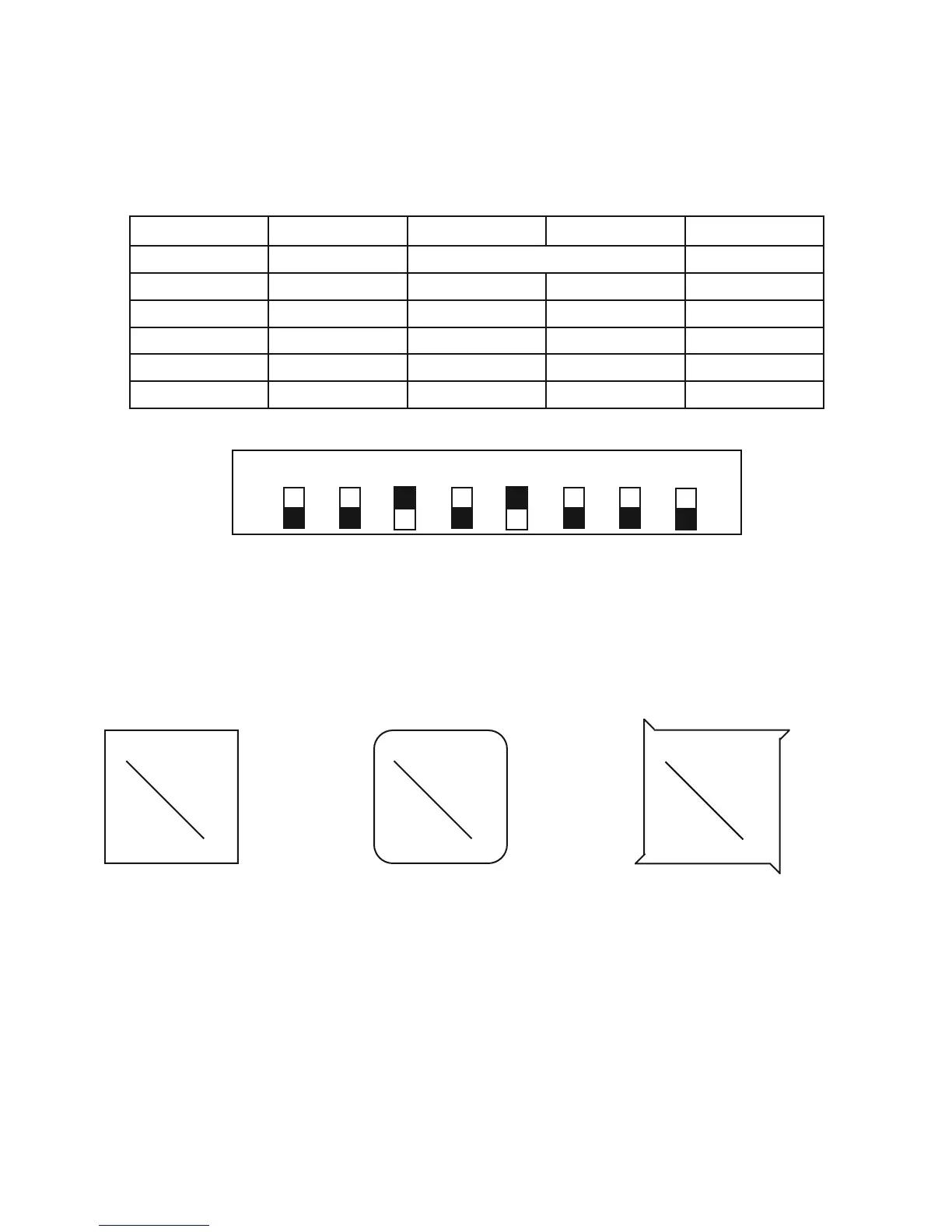

To get a perfect cutting job, you have to choose the proper dip switch setting. The table below shows function of
each dip switch. See the default setting values Figure 4-13.
Dip Switch Function Switch Down Switch Up Default Value
SW 1-3 Offset Value (please refer to SW 1-3) 0.275 mm
SW-4 Media Weight Light Heavy Light Media
SW-5 Quality Draft Fine Draft
SW-6 Smooth Enable Disable Enable
SW-7 Auto Unroll Enable Disable Enable
SW-8 Media Type Roll Single Roll
Figure 4-13
ON
OFF
1 2 3 4 5 6 7 8
4. Basic Operation 4-10
4.11 Adjust Offset Value
The square cut out should appear as one of the follow fi gure:
AA
Lower offset value
OR over-speed
BB
Higher offset
value
CC
offset value
If the square appears in BB or CC layout, Change the OFFSET by referring the dip switch part to adjust the
value to the optimum result. OFFSET is the distance that the blade tip is displaced from the center-line of the
blade.
