Lynx S-30 User Manual

4. Basic Operation
4.1 Loading the Sheet Media
To load the media properly, please follow the procedures listed below:

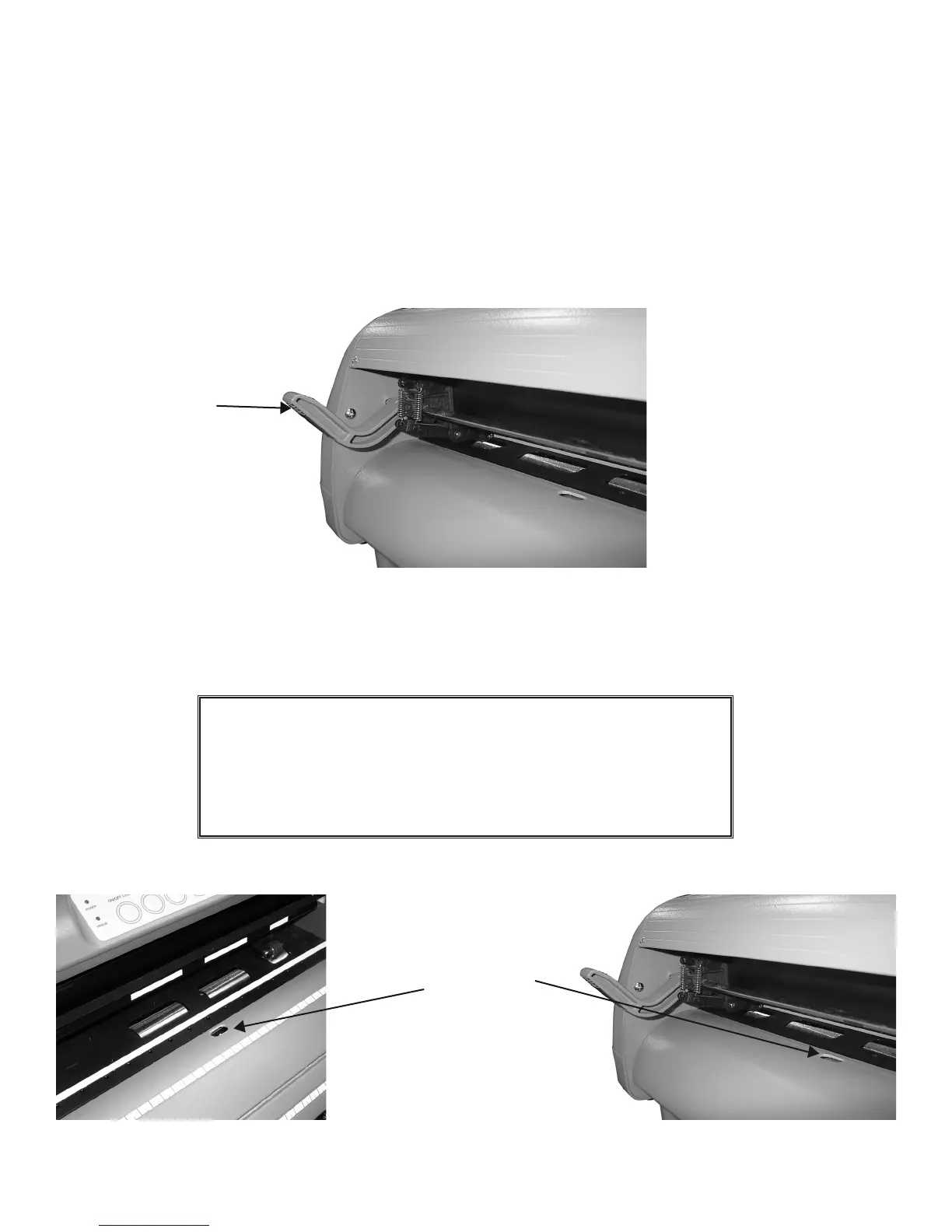

1. Use the lever on the upper right side of the cutting plotter to raise or lower down pinch rollers. Pull the
lever forward until it makes a clicking sound then the pinch rollers are raised (Figure 4-1).
2. Load your media on the platen and slide it under the pinch rollers from the backside. The alignment
rulers on the platen extension will help you to adjust the media precisely.
Note:
The media must cover the paper sensors on the platen when loading
the media. At least one of the two paper sensors (Figure 4-2) should
be covered. Once the media covers the sensor, the cutting plotter
will size the media’s width and length automatically.
Figure 4-2
4. Basic Operation 4-1
Lever
Figure 4-1
Paper Sensor
Front View Of Lynx
Back View Of Lynx
