4) Then turn the roll downward to make an equal tension across the media (Figure 4-10)
Move the pinch rollers to the correct
location and be careful that the pinch
rollers are positioned above the grid
drums.
Push the lever backward to lower down
the pinch rollers
5) Adjust and tighten roll media guide bushes on the roll holder to
secure the roll media
6) Turn on the power switch, and then the tool carriage will size the
media automatically. Then the cutting plotter is ready to work.
7) Use the reverse steps to remove the media.
Make sure that the media tension
is equally distributed from left
to right. If the media is not tight
enough against the platen it will
cause tracking problems.
You can also use the ROLL BASE to feed a roll media. Please adjust the position of roll base to get a good
cutting result (Figure 4-11).
4. Basic Operation 4-5

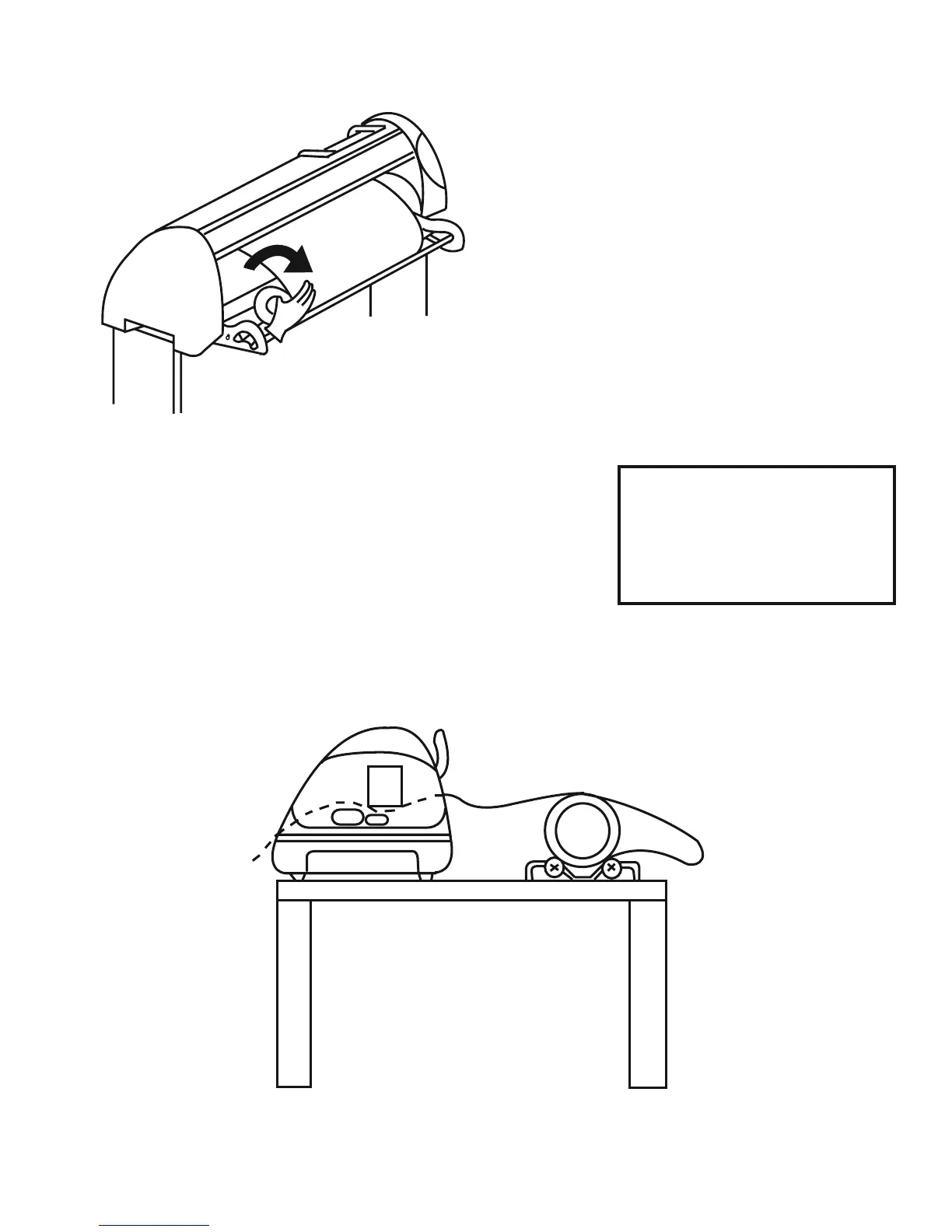

Figure 4-10
Figure 4-11
