Lynx S-30 User Manual

About the Tool

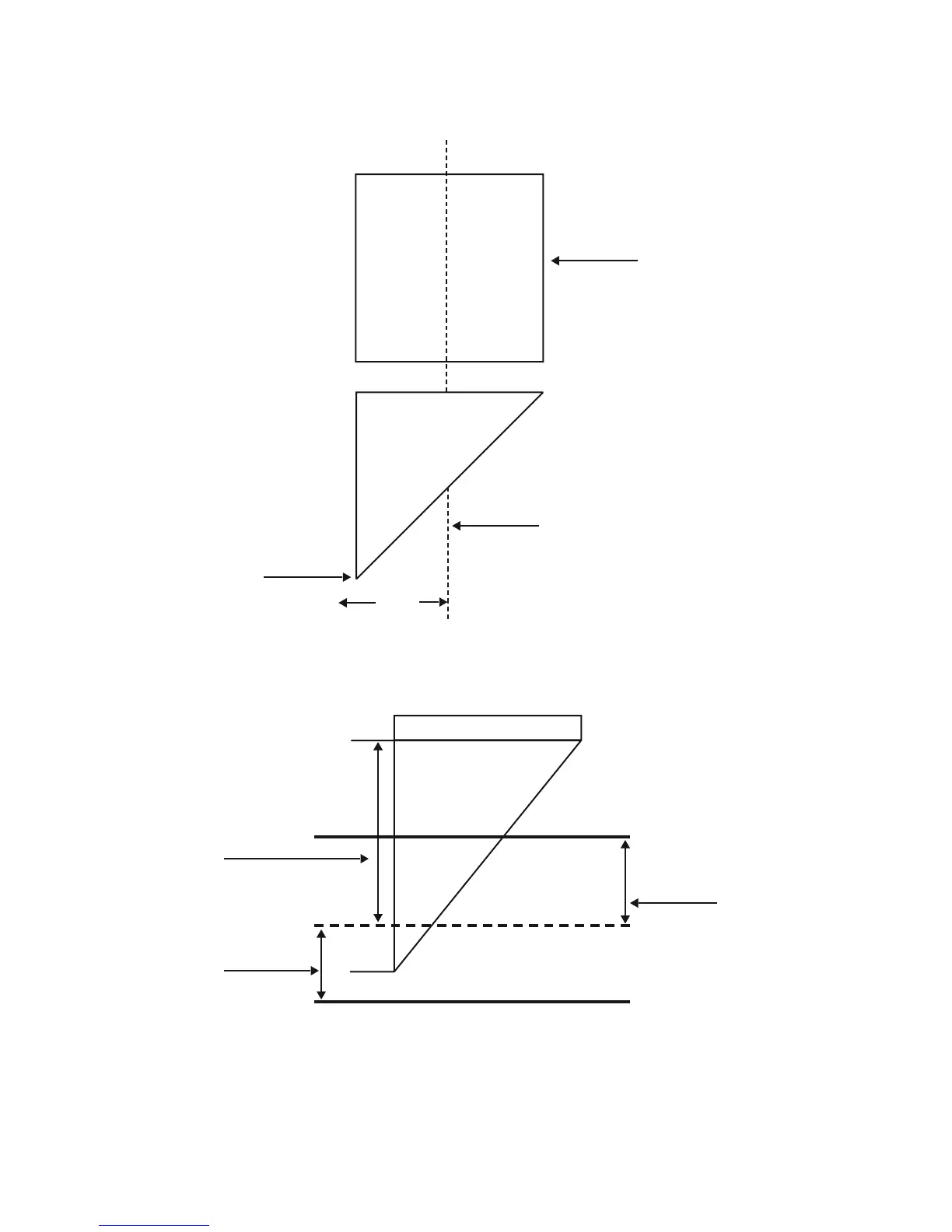

OFFSET is the distance that the blade tip is displaced from the center-line of the blade.
Protrusion Length of the Blade
Length of protrusion = t1 + t 2/ 2, but for your convenience you may just make it about 0.3~ 0.5 mm beyond the
blade holder tip.
Blade
Blade tip
Offset
Central line
Thickness of the
fi lm (t1)
Protrusion length
of the blade
Thickness of the
base paper (t2)
