Lynx S-30 User Manual

5.2 Cleaning the Grid Drum
1. Turn off the cutting plotter, and move the tool carriage away from the area needed to be cleaned.
2. Raise the pinch rollers and move them away from the grid drum for cleaning.

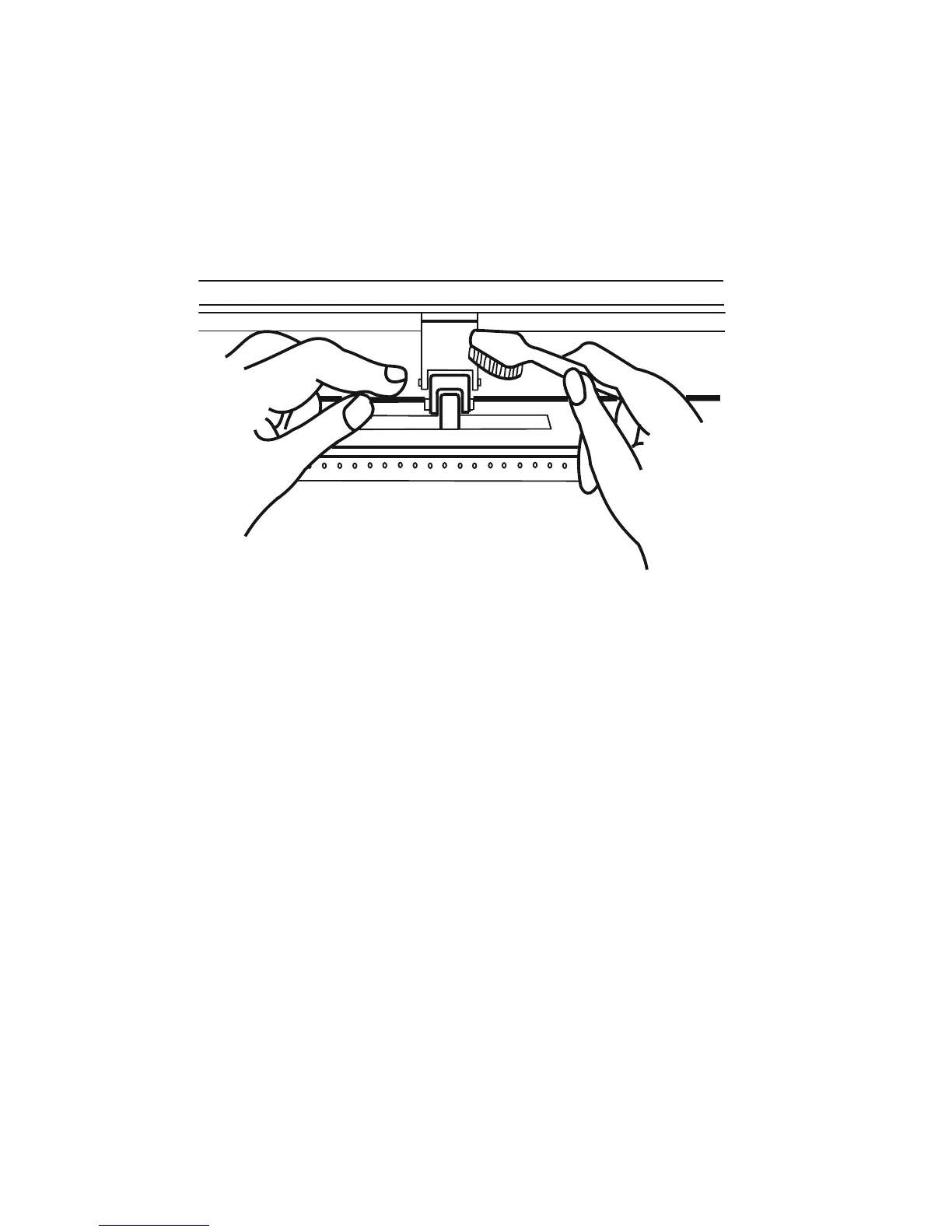

3. Use a bristle brush (a toothbrush is acceptable) to remove dust from the drum surface. Rotate the drum
manually while cleaning. Refer to Figure 5-1
Figure 5-1
5.3 Cleaning the Pinch Rollers
1. If the pinch rollers need a thorough cleaning, use a lint-free cloth or cotton swab to wipe away the
accumulated dust from the rubber portion of the pinch rollers. To prevent the pinch rollers from rotating
while cleaning, use fi nger to hold the pinch rollers still.
2. To remove the embedded or persistent dust, use the lint-free cloth or cotton swab moistened
with rubbing alcohol.
5. Care & Basic Maintenance 5-2
