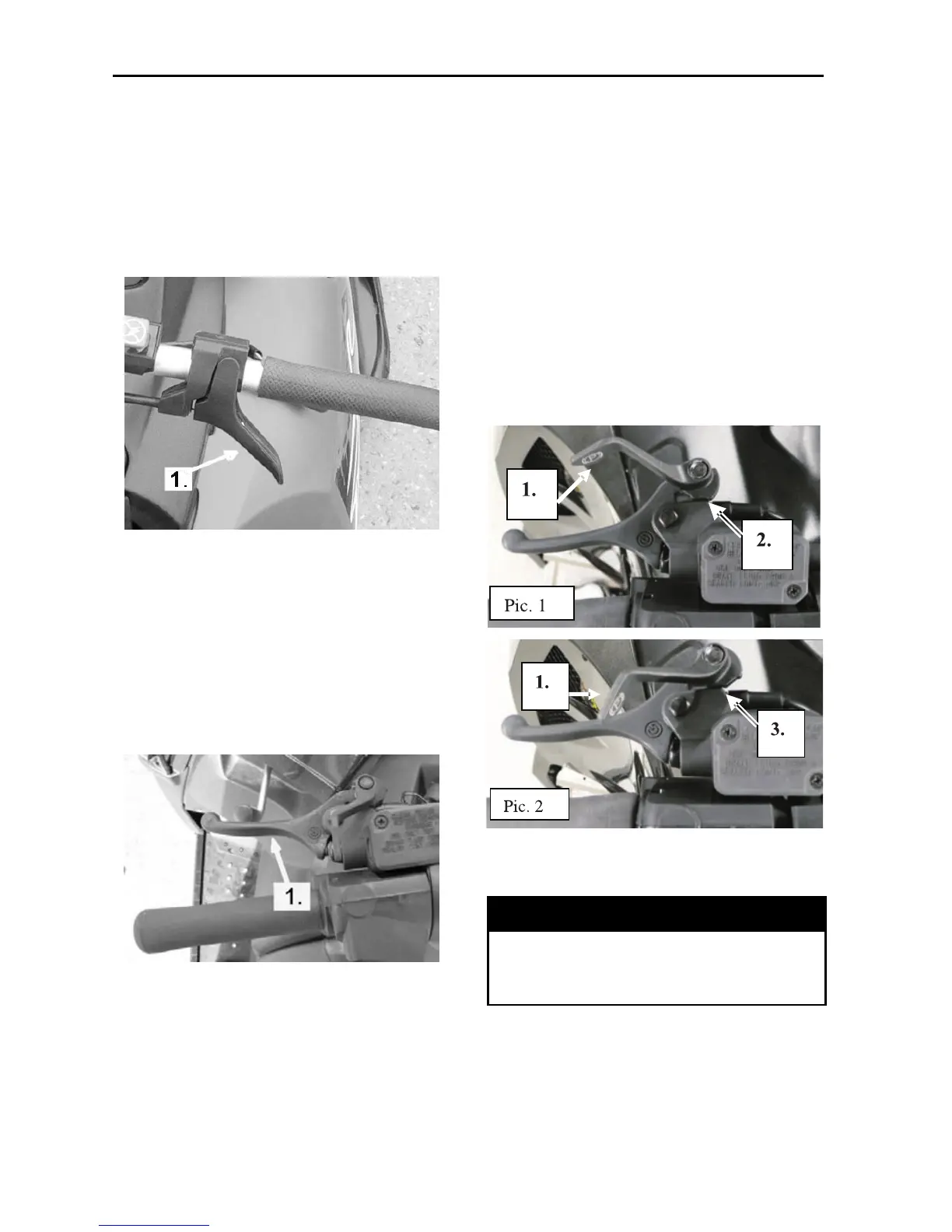

CONTROLS/INSTRUMEN TS
1) Throttle lever
Located on the right side of handlebar.
When compre ssed, it co ntro ls the en-
gine speed and the engagement of the
transmission. When released, engine
speed returns au tomatically to idle .
1. Throttle lever
2) Brake lever
Located on the left side of handlebar.
When compressed, the b ra ke is ap-
plied. When released, it automatically
returns to its original positio n. Bra k ing
effect is proportional to the pressure
appliedontheleverandtothetypeof
terrain and its snow coverage.
1. Brake lever
3) Parking b rake button
or lever
Hydraulic brake
Located on left side of handlebar.
Parking brake should be used w hen-
ever snowmobile is parked.
Whenever parking brake is applied
and engine is running, injec tion oil lev-
el/parking brake pilot lamp lights up to
remind you that it is engaged. Never
leave your snowmobile on downhill
only with parking brake engaged.
1. Locking lever
2. Position 1
3. Position 2
WARNING
Make sure parking brake is fully
disengaged before operating the
snowmobile.
26
