Lynx Yeti 550 - Drive Belt & Pulley Service

Drive belt removal and
installation
Remove tether cord cap. Open en-
gine compartment.

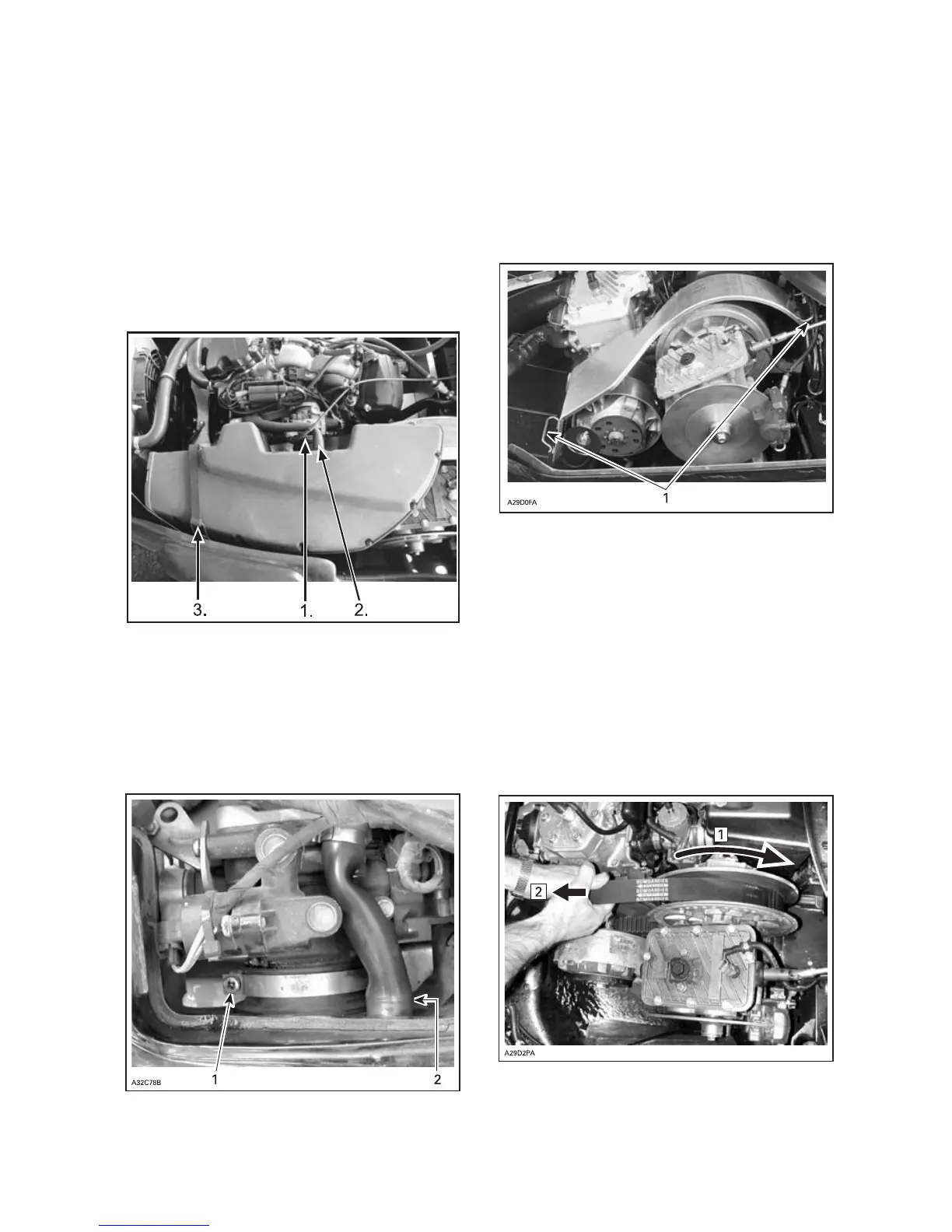

1. Remove air silencer
Removing air silencer, Yeti
models
1. Collar screw
2. Vent hose
3. Latch
Loosen collar screw on air silencer
grommet.
Disconnect engine vent hose from air
silencer.
1. Collar screw
2. E ngine vent hose
Remove latch from air silencer.
Remove air silencer
2. Remove belt guard
Belt guard removal all m odels
1. P in retaining
Remove pins, located at both ends of
the belt guard
Remove belt guard
3. Remove belt
Removing belt YETI models
Turn slid ing half clo ckwise then, pull
on drive belt to open driven pulley.
Follow instruction on decals for belt re-
moval and installation.
1. Turn sliding half clockwise
2. P ull belt to open driven pulley
_____________________
61
