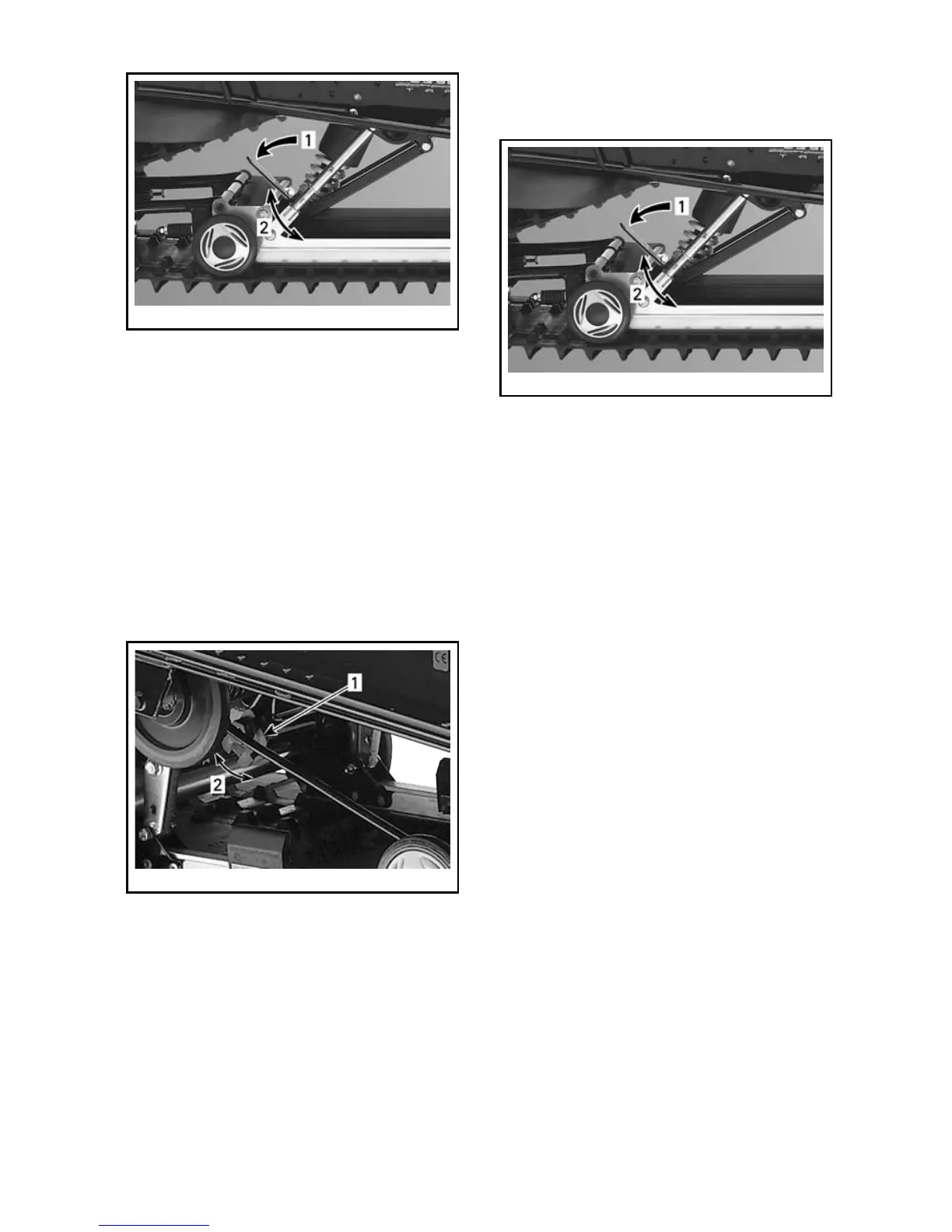

mmo2008-001-005_a
TYPICAL
1. P ull on handle
2. Turn to increase spring preload
Decrea se Spring Preloa d
Yeti models with Easy ride
XWLS suspension
CAUTION: To decrease preload,
always turn the left side adjust-
ment cam in a counterclockwise
direction, the right side cam in a
clockwise direction. Left and right
adjustment cams may be at differ-
ent settings.
mmo2008-001-006_a
1. P ull on handle
2. Turn to decrease spring preload
Yeti models with RCG-A
suspension
mmo2008-001-005_a
TYPICAL
1. P ull on handle
2. Turn to decrease spring preload
2. Suspended Extension
Adjustment
Suspended extension can be adjusted
according to the load a nd snow condi-
tions.
For better deep snow performance
or to increase reverse performance in
deep snow, first loosen lock nut, then
tighten nut 3/4 turn after contacting
washers. Retighten lock n ut. Ad ju st
thesameonbothsides.
For trail riding with a load or for pulling
a load, first loosen lock nut . Turn to
a maximum p reload of 3 turns after
nut touching washers. Retighten lock
nut. Adjust the same on both sides.
3. Shackle Movement Limiter
For deep snow riding, do not install
horse shoe washers.
For trail riding with passenger and/or
weight, install 1 horse shoe washer
under each rubber stoppers.
For trail riding with heavy lo ad and/or
pulling a load, use 2 horse shoe wash-
ers under each rubber stoppers.
CAUTION: Always install same
amount of washers on both sides.
_____________________
39
