215505 19 Revision A

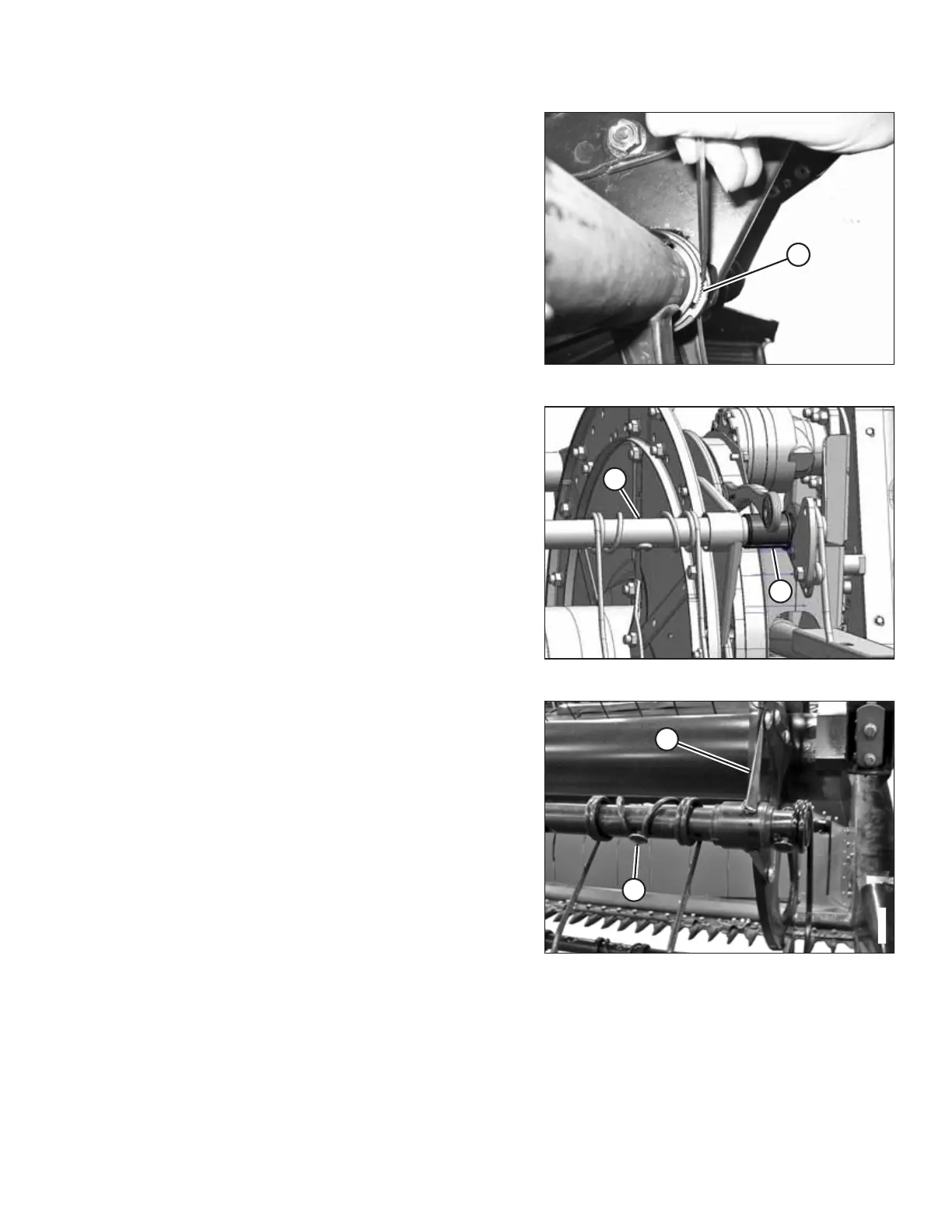

Figure 4.11: Bushing Clamp
18. Release bushing clamps (A) at the cam disc using a small
screwdriver to separate the serrations. Move the clamps off
the bushings.
Figure 4.12: Cam End
19. Slide tine tube (A) outboard to expose bushing (B).
20. Remove bushing halves (B). If required, remove the next
steel or plastic finger so the arm can slide off the bushing.
Refer to the following steps as necessary for removing steel
or plastic fingers:
Figure 4.13: Removing Steel Finger
Steel Finger
21. Remove bolts (B) from the existing fingers and slide the
fingers over the tine tube to remove. (remove tine tube
arms (A) from the tine tubes as necessary).
REMOVING EXISTING FINGERS AND BUSHINGS
To Next Page
