215505 30 Revision A
$
%

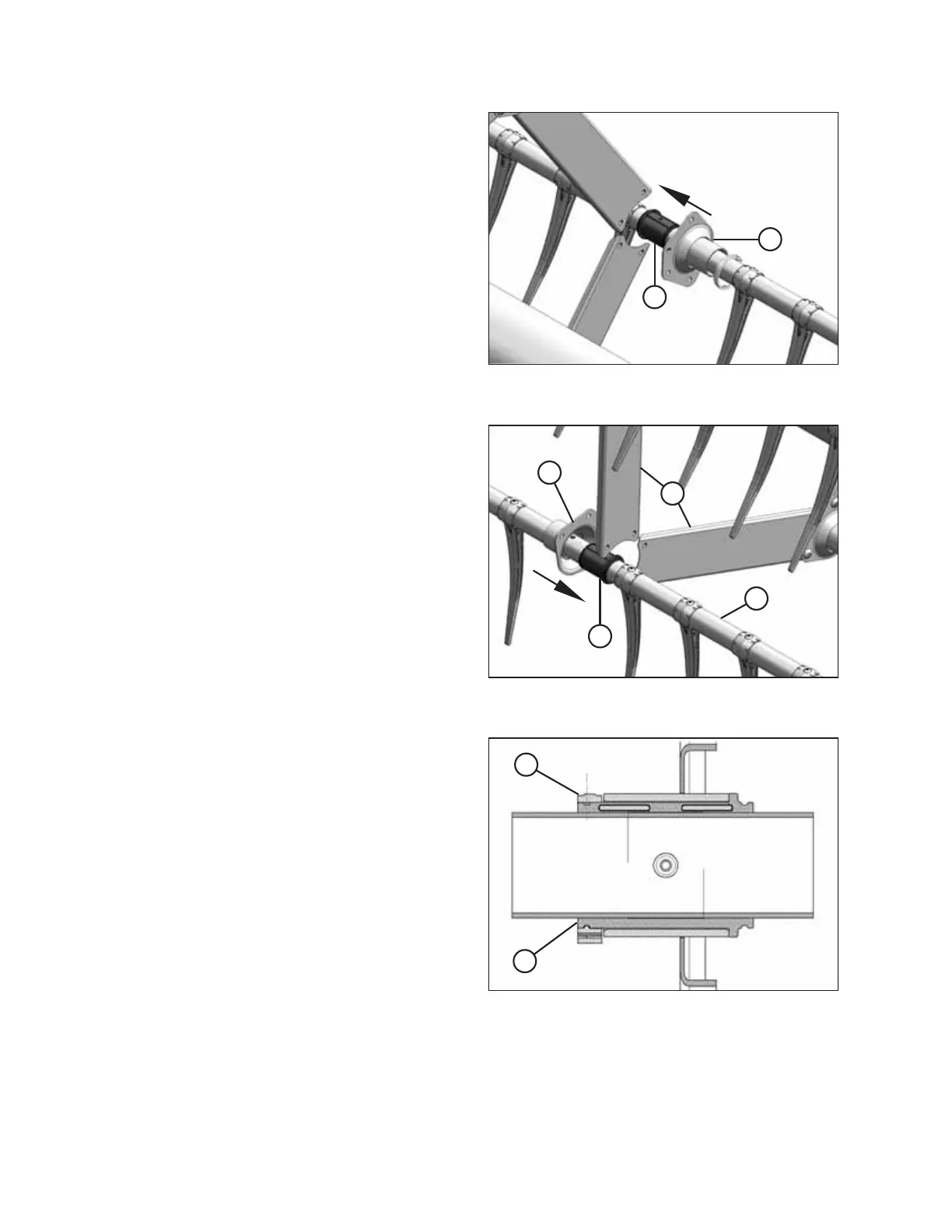

Figure 5.15: Tine Tube Reinforcing Kit Support
(Option)
25. On each reel, there are three right-facing supports (A). Slide
the support onto bushing (B).
%
$
&
'
Figure 5.16: Tine Tube Reinforcing Kit Opposite
Support (Option)
26. On each reel, there are two left-facing supports (A). Rotate
support (A) until its flanges clear channels (C) before
moving the support onto bushing (B).
NOTE:
If necessary, move tine tube (D) slightly away from the reel
to allow the support flange enough room to clear the
channel.
$
%
Figure 5.17: Bushing
27. Install bushing clamp (A) onto the tine tube adjacent to the
flangeless end of bushing (B).
28. Position clamp (A) on bushing (B) so the edges of the clamp
and bushing are flush when the clamp is fit into the groove
on the bushing and the lock tabs are engaged.
INSTALLATION INSTRUCTIONS
