215505 31 Revision A

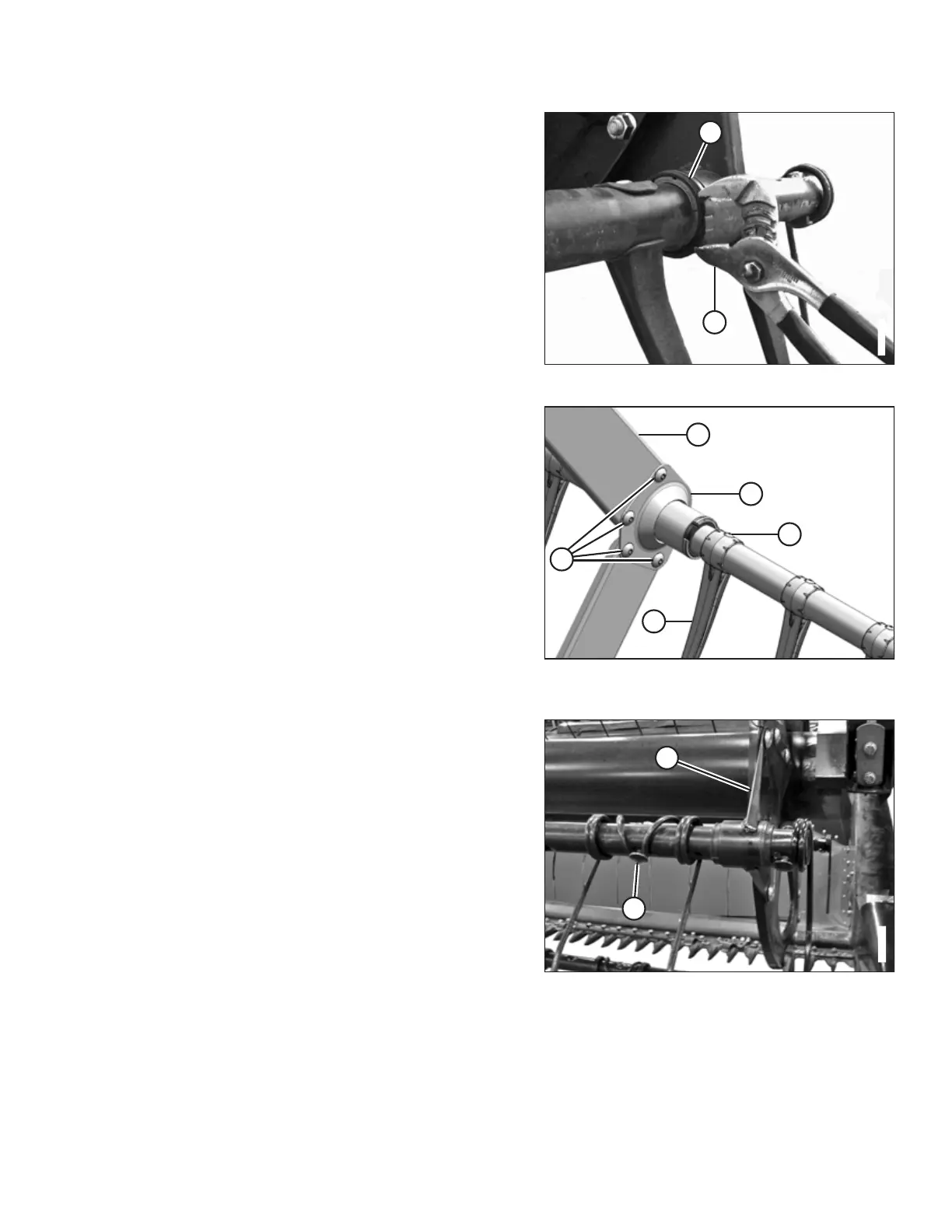

Figure 5.18: Installing Clamp
29. Tighten clamp (A) using modified channel lock pliers (B)
until finger pressure will NOT move the clamp.
IMPORTANT:
Overtightening clamp may result in breakage.
Figure 5.19: Tine Tube Reinforcing Kit Support
(Option)
30. Reattach channels (C) to the three right-facing supports (A)
on each reel with screws (B) and nuts. Torque screws to
43 Nm (32 lbf∙ft).
Figure 5.20: Tine Tube
31. Slide the new finger and tine tube arm (A) onto the end of
the tube.
32. Attach the fingers to the tine tube with bolts and nuts (B).
For finger location and proper hardware installation refer to
3 Steel Finger Placement, page 9.
33. Torque steel finger hardware to 35 Nm (26 lbf·ft).
NOTE:
Do NOT overtighten hardware, may result in flattening of
tube.
INSTALLATION INSTRUCTIONS
