215505 36 Revision A
$
%%
$
$
'
(
&
)
)(
**
'
*

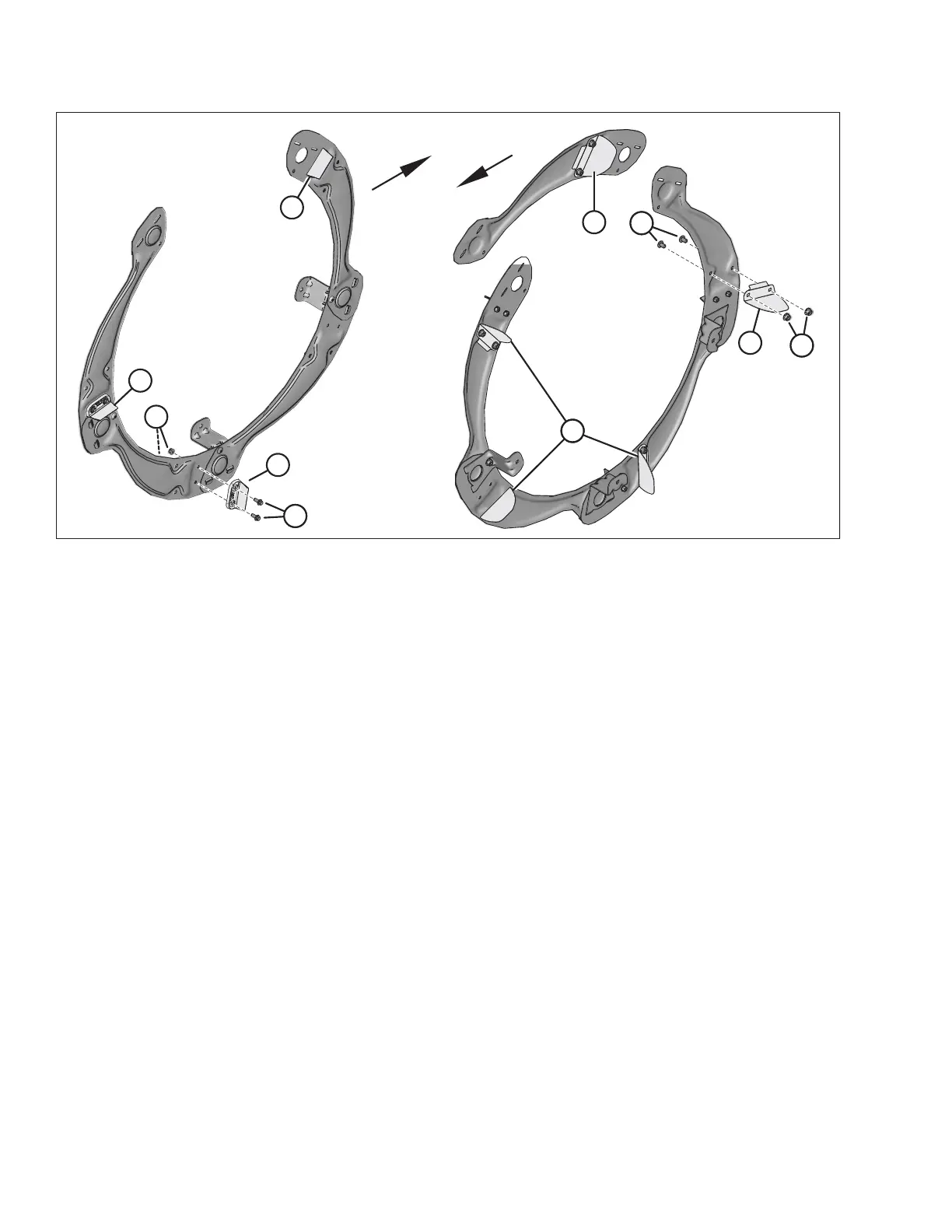

Figure 5.26: Five-Bat Reel – Rubber Paddles and Aluminum Cam Deflectors
IMPORTANT:
The arrows point to the front of the machine. Ensure rubber paddles and cam deflectors are oriented as shown.
2. If removed, install three RUBBER reel end paddles (A) on the OUTBOARD FACE of the endshield assembly using two
M8 X 1.25 X 20 hex bolts (B) and nuts (C) per paddle.
3. If removed, install four ALUMINUM cam deflectors (D) on the INBOARD FACE of the endshield assembly shown using
two M10 X 1.5 X 16 Torx
®
screws (E) and hex nuts (F).
4. Install ALUMINUM cam deflector (G) on the last segment as shown using two M10 X 1.5 X 16 Torx
®
screws and hex
nuts.
INSTALLATION INSTRUCTIONS
