215505 37 Revision A

$$$
%$
$

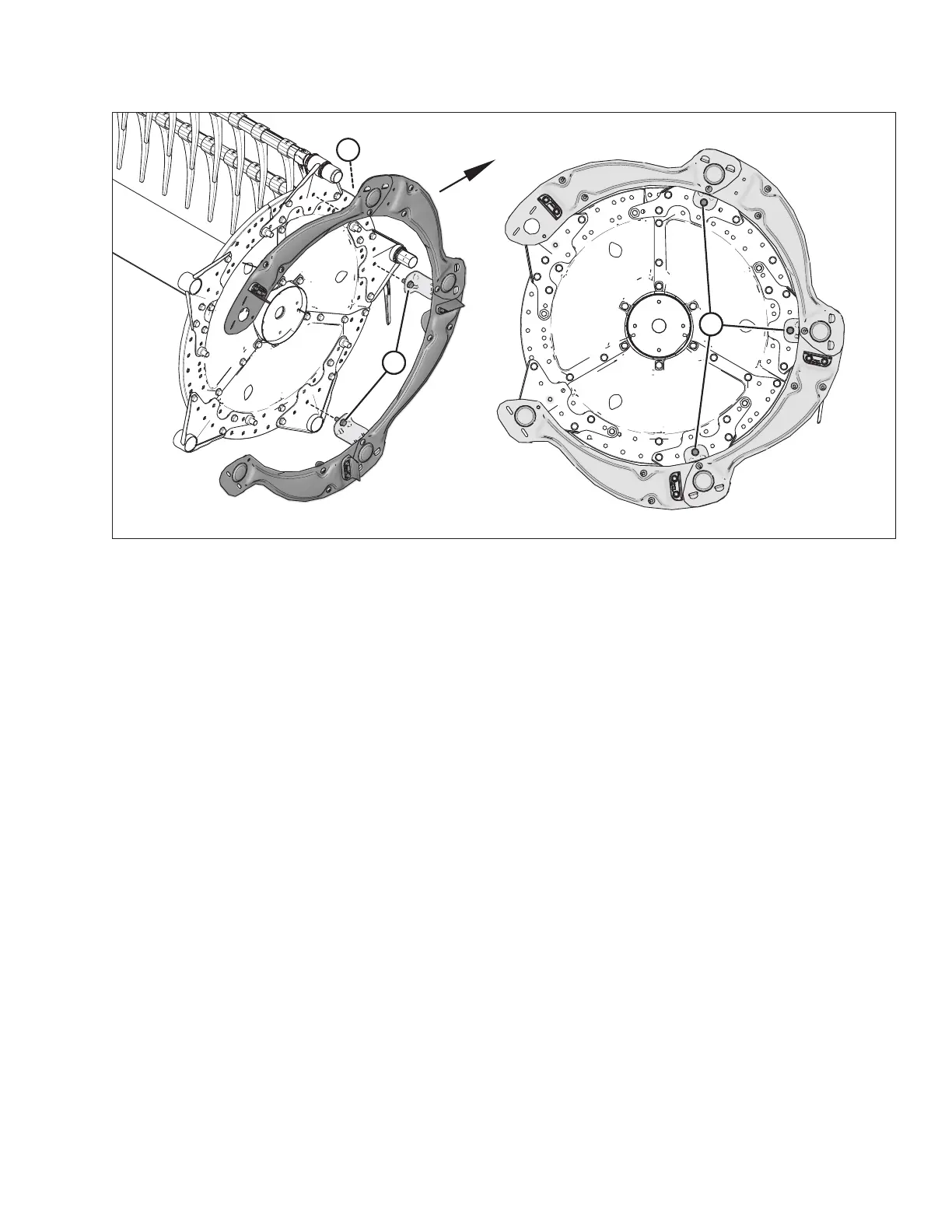

Figure 5.27: Five-Bat Reel – Partially Assembled Reel Endshields on Reel
NOTE:
The arrow points to the front of the machine.
5. Position the partially assembled reel endshield onto the reel.
6. Secure with three M12 X 1.75 X 30 hex bolts (A) and nuts. Do NOT tighten.
INSTALLATION INSTRUCTIONS
