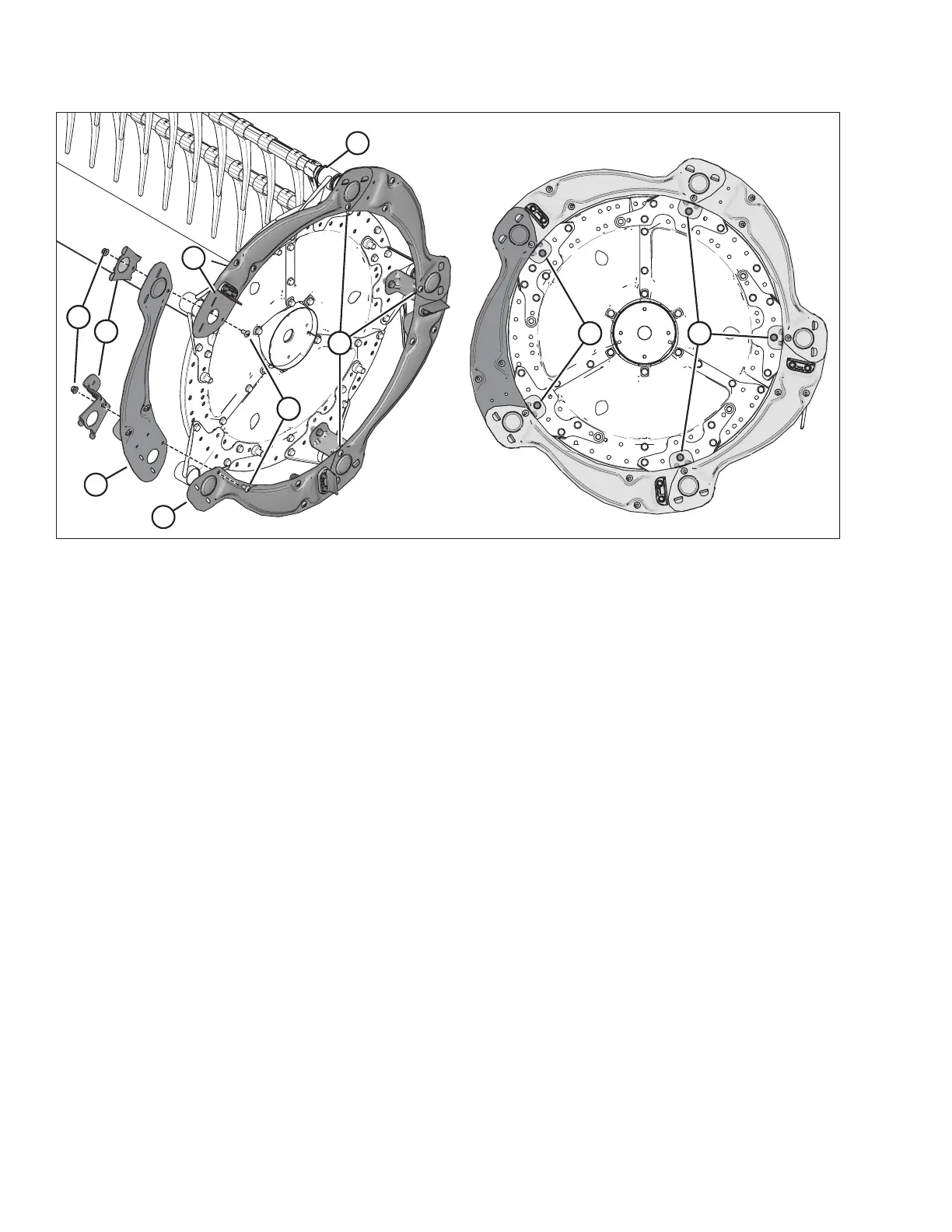

Figure 5.28: Five-Bat Reel – Partially Assembled Reel Endshields on Reel
7. Install the last segment of endshield (A) as follows:
a. Position the wide end of last segment (A) BEHIND segment (B). Position the other end of last segment ON TOP of
segment (C).
b. Install the tabs of endshield supports (D) through the endshield segments.
c. Secure endshield supports using two M10 X 1.5 X 20 Torx
®
screws (E) and nuts (F).
d. Torque five M10 X 1.5 X 20 Torx
®
screws (E) and (G) to 39 Nm (29 lbf·ft). Rotate the reel to reach the screws if
required.
8. Slip the endshield supports onto tine tubes (H).
NOTE:
Not all tine tubes shown in illustration.
9. Secure the two endshield supports to the reel disc using two M12 X 1.75 X 30 hex bolts (J) and nuts.
10. Tighten five M12 X 1.75 X 30 hex bolts (J) and (K) and nuts that secure the endshield supports to the cam discs to
68.5 Nm (50.5 lbf·ft).
