215505 40 Revision A
$
%
&&
''
((
*
*
)

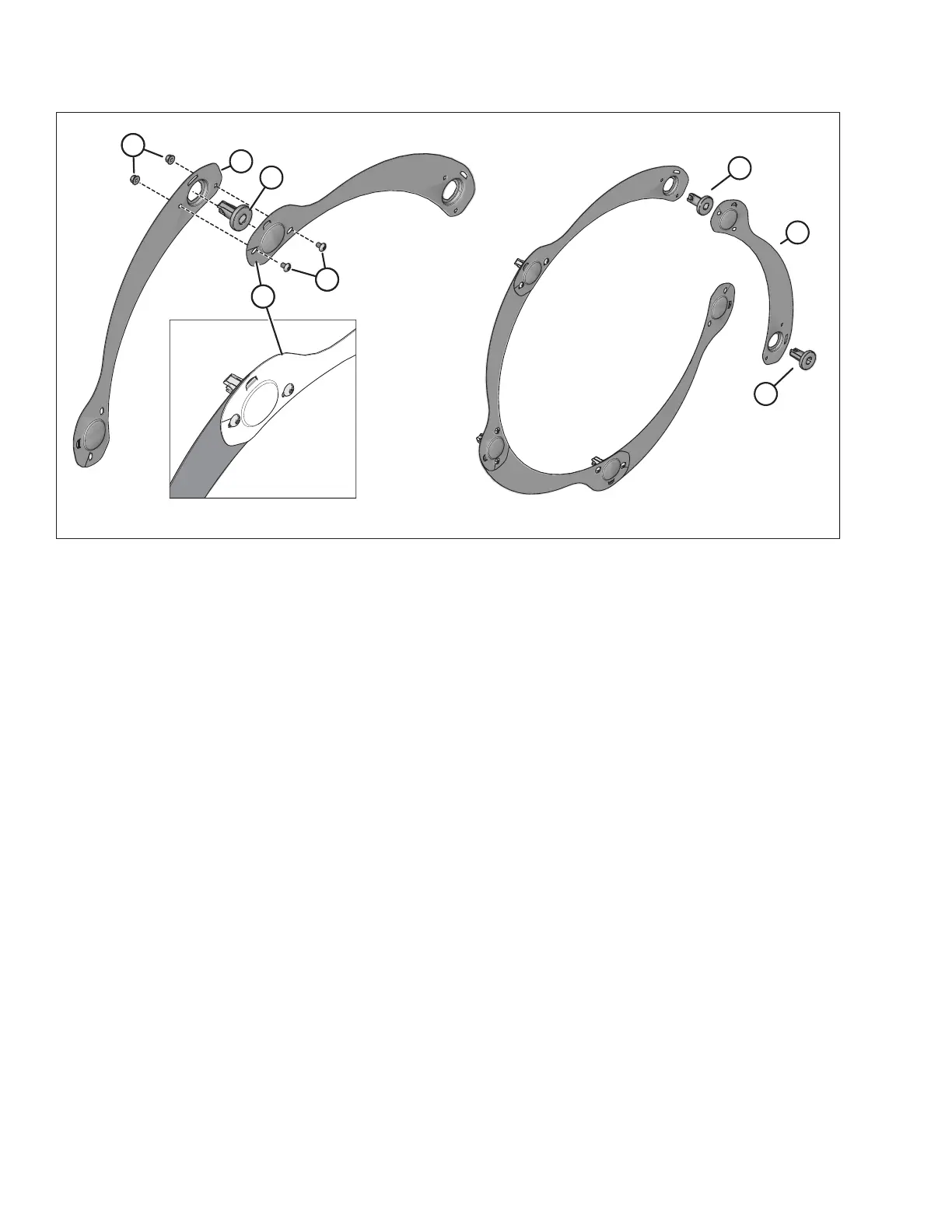

Figure 5.30: Endshield Subassembly
1. Assemble the endshield as follows:
a. Insert bushing (A) into endshield segment (B).
b. Place the cupped end of endshield segment (C) ON TOP of segment (B). Attach the segments using two with M10
X 1.5 X 16 Torx
®
screws (D) and nuts (E). Do NOT tighten the hardware.
c. Repeat for the remaining segments leaving last segment (F) and two bushings (G) uninstalled.
INSTALLATION INSTRUCTIONS
