215505 41 Revision A
%
&
$
$
$
'
(

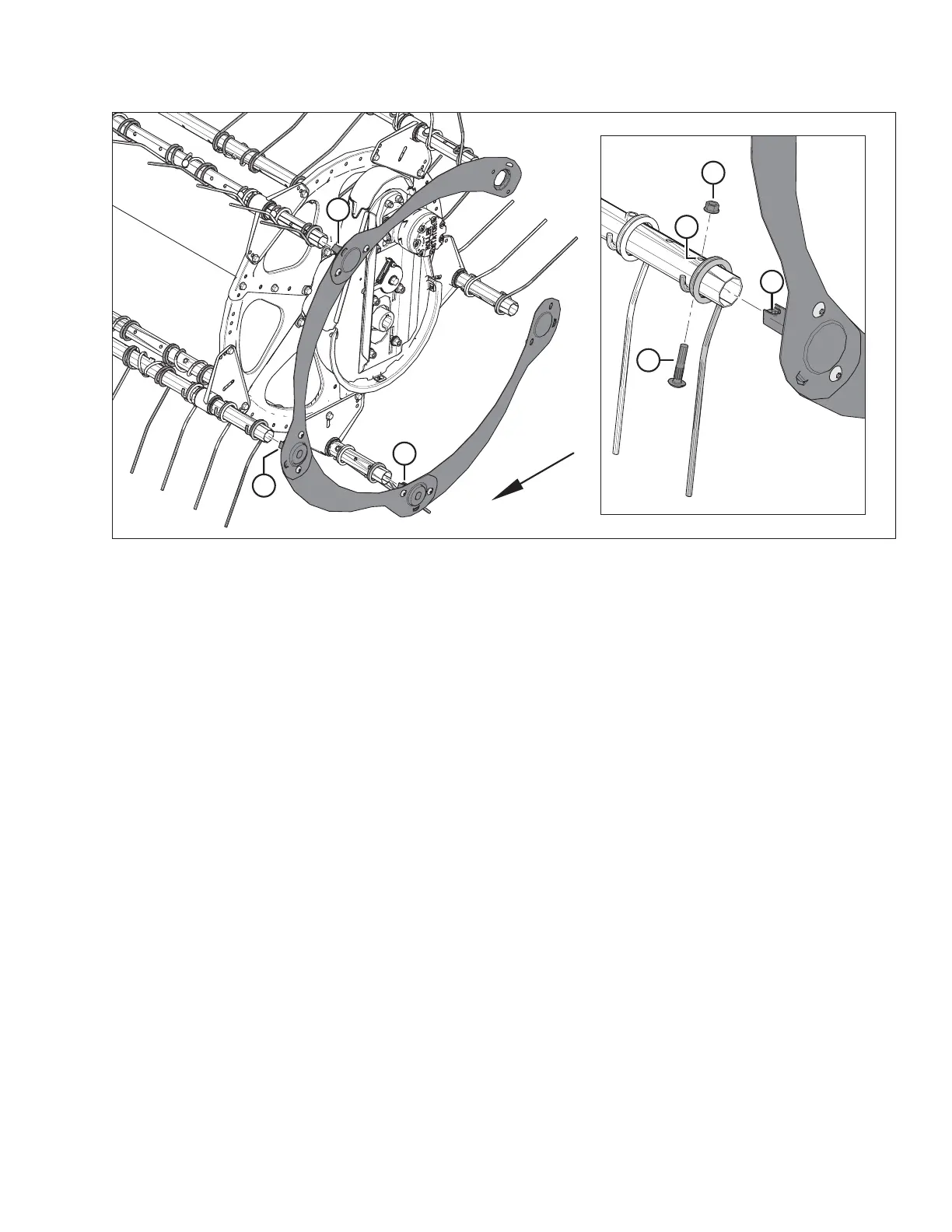

Figure 5.31: Endshield Mounted onto Reel
2. Mount the endshield onto the reel as follows:
a. Insert three bushings (A) into the tine tubes. Align the bushing hole (B) and finger slot with the hole in the tine
tube (C).
b. Secure the bushings and fingers to the tine tube using bolt (D) and nut (E). Do NOT tighten.
NOTE:
The arrow points to the front of the machine.
INSTALLATION INSTRUCTIONS
