215505 42 Revision A

$
%
&
'
(
)
*
+
-
.
-
.
-
.
-
.
-
.
-
.
-
.
Figure 5.32: Completed Endshield Assembly

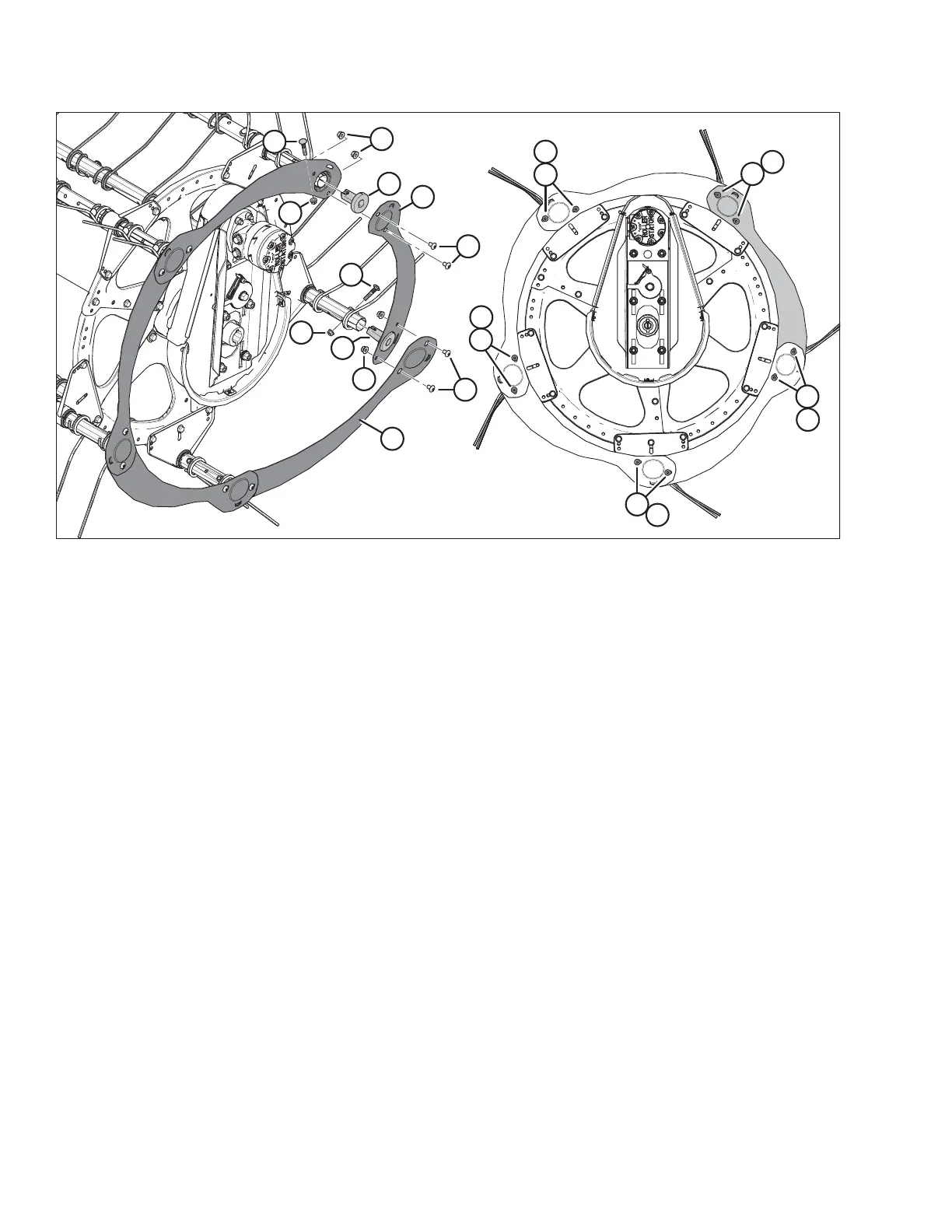

3. Install the remaining endshield segment (A) as follows:
a. Install bushing (B) into the endshield segment and tine tube. Secure the bushing and finger to the tine tube using
bolt (C) and nut (D). Do NOT tighten.
b. Install bushing (E) into the endshield segment.
c. Insert bushing (E) end of segment into the tine tube. Secure the bushing and finger to the tine tube using bolt (F)
and nut (G). Do NOT tighten.
d. Place cupped end of segment (H) ON TOP of segment (A).
e. Secure the endshield segments with M10 X 1.5 X 16 Torx
®
screws (J) and nuts (K).
4. Prevent the flattening of the tubes. Torque all the tine tube steel finger bolts and nuts to 9 Nm (7 lbf·ft). Do NOT
overtighten the screws.
5. Torque all M10 X 1.5 X16 Torx
®
screws (J) and nuts (K) to 39 Nm (29 lbf·ft).
