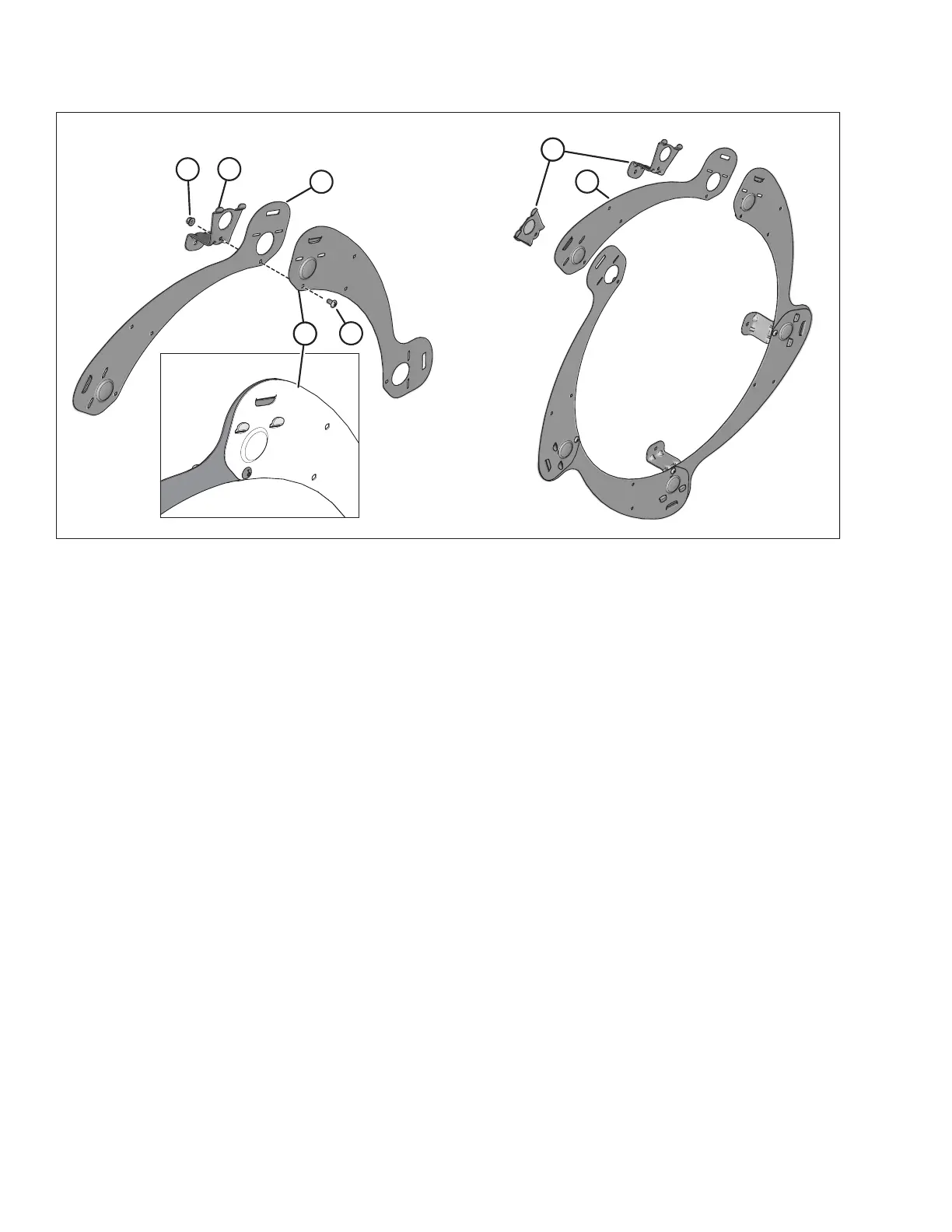

Figure 5.34: Five-Bat Reel – Initial Endshield Assembly
1. Assemble the endshield as follows:
a. Position endshield segment (A) BEHIND segment (B). Engage endshield support tabs (C) through both segments,
and secure with M10 X 1.5 X 20 Torx
®
screw (D) and hex nut (E). Do NOT tighten.
b. Repeat for the remaining segments leaving last segment (F) and two support tabs (G) uninstalled.
INSTALLATION INSTRUCTIONS
