215505 45 Revision A
$%
%
&
$
'($
'

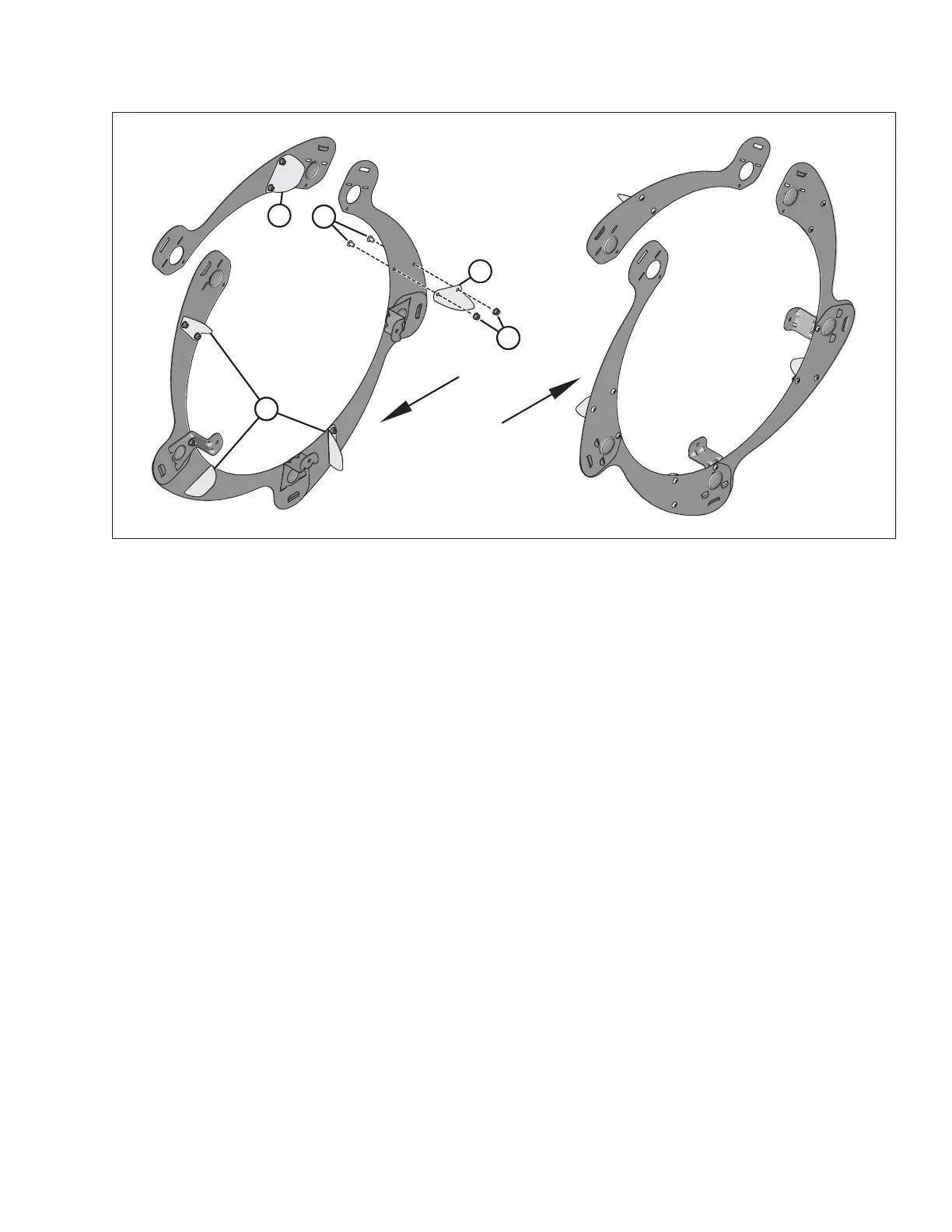

Figure 5.35: Five-Bat Reel – Aluminum Cam Deflectors
IMPORTANT:
The arrows point to the front of the machine. Ensure the cam deflectors are oriented as shown.
2. If removed, install four ALUMINUM cam deflectors (A) on the INBOARD FACE of the endshield assembly shown using
two M10 X 1.5 X 16 Torx
®
screws (B) and hex nuts (C).
3. If removed, install ALUMINUM cam deflector (D) on the last segment as shown using two M10 X 1.5 X 16 Torx
®
screws
and hex nuts.
INSTALLATION INSTRUCTIONS
