215505 46 Revision A

%
&
$
($
$

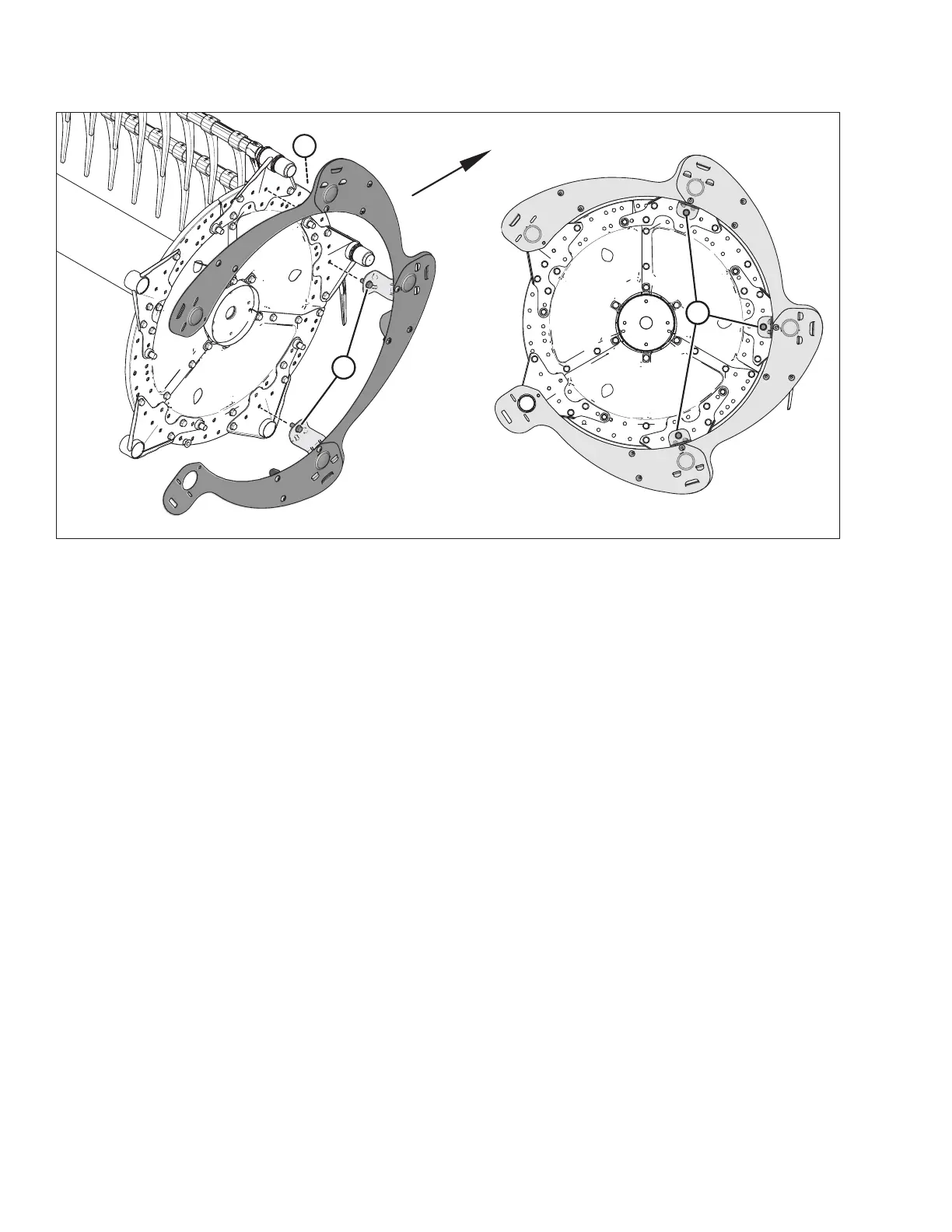

Figure 5.36: Five-Bat Reel – Partially Assembled Reel Endshields on Reel
4. Position the partially assembled reel endshield onto the reel.
NOTE:
The arrow points to the front of the machine.
5. Secure with three M12 X 1.75 X 30 hex bolts (A) and nuts. Do NOT tighten.
