215505 49 Revision A
$
%
&
'
(
+
)
*
%

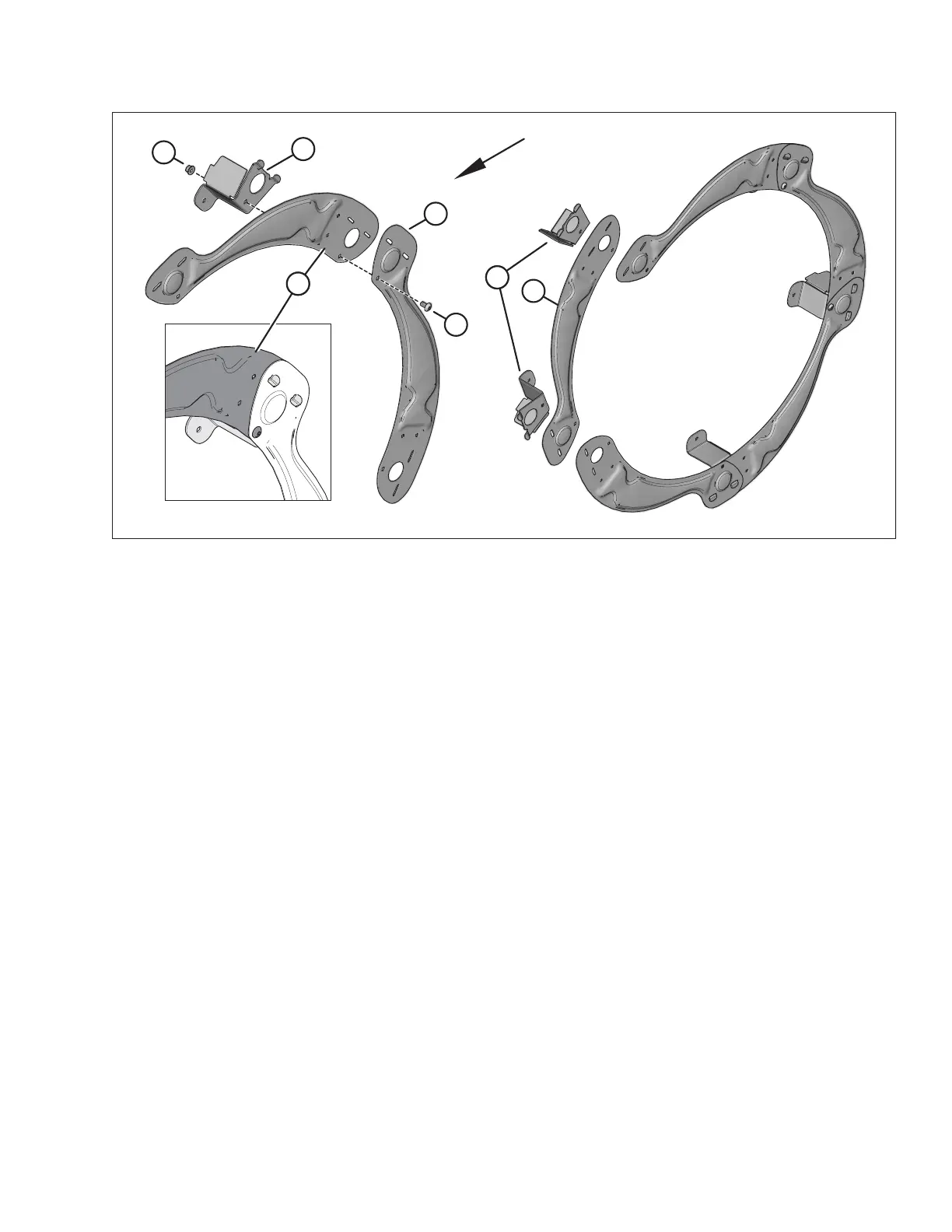

Figure 5.39: Five-Bat Reel – Initial Endshield Assembly
1. Assemble the endshield as follows:
NOTE:
The arrow points to the front of the machine.
a. Position endshield segment (A) IN FRONT of segment (B). Engage endshield support tabs (C) through both
segments, and secure with M10 X 1.5 X 20 Torx
®
screw (D) and hex nut (E). Do NOT tighten.
b. Repeat for remaining segments leaving last segment (H) and two support tabs (G) uninstalled.
INSTALLATION INSTRUCTIONS
